Technical Specifications

Electrical & Mechanical Data
Power supply
Fuse
Rated power
Signal input
Resolution
Accuracy
Case dimensions
Weight
Ambient temperature

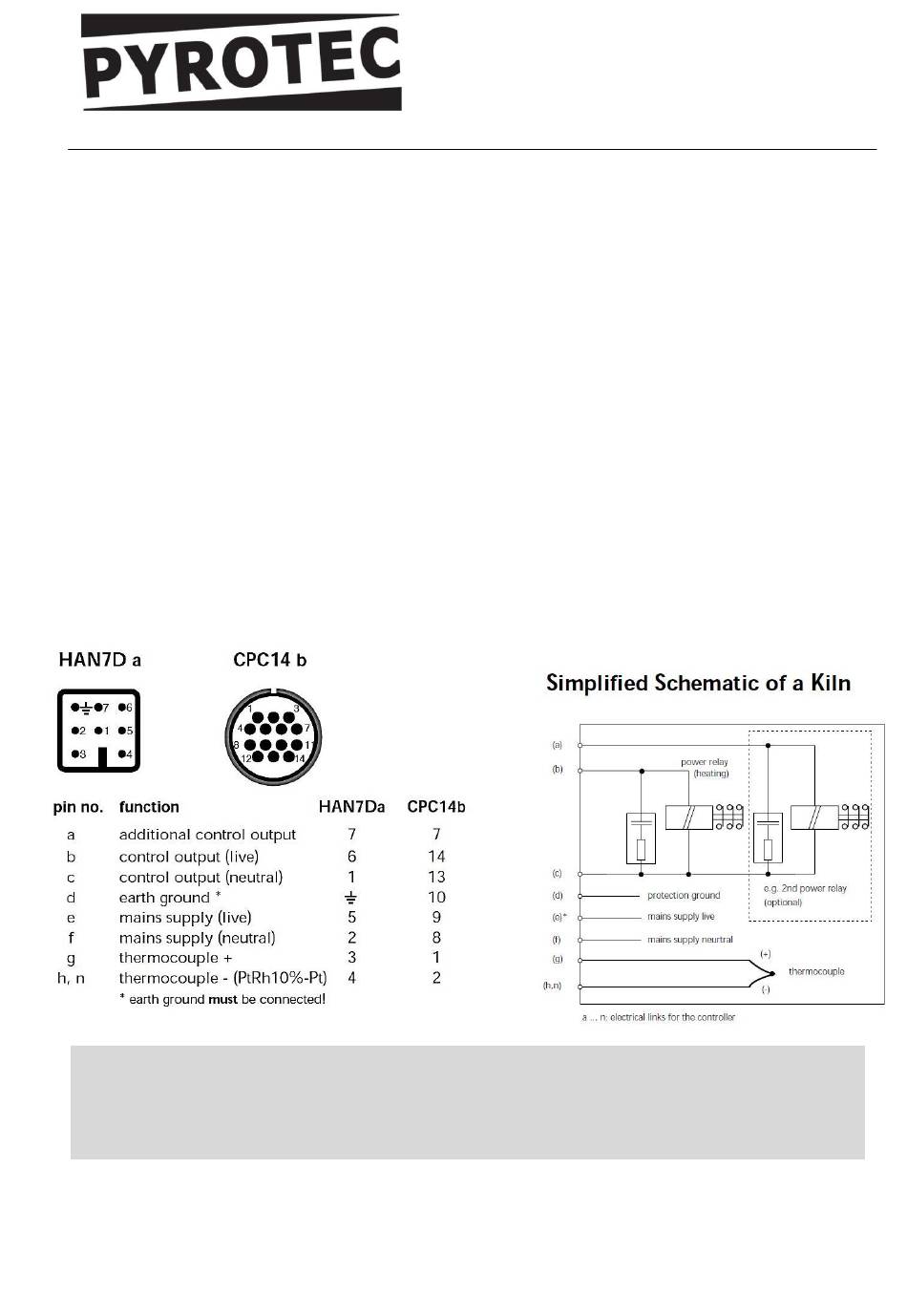

Pin assignments of the plug

Please compare type of thermocouple used in the kiln with the controller
thermocouple input marked on the back of the controller. Mismatch can cause severe
damage of kiln and contents!
Operating Instructions PYROTEC PY1 V1.0 ©2018 Pyrotec GmbH, Osnabrück
24
180 - 245V AC 50/60 Hz
0,5 A semi-lag
5 W
thermocouple PtRh10%-Pt (S)
0.1°C
0,1% full scale
155 x 80 x 22 mm
1100 g
-10°C to 55°C
