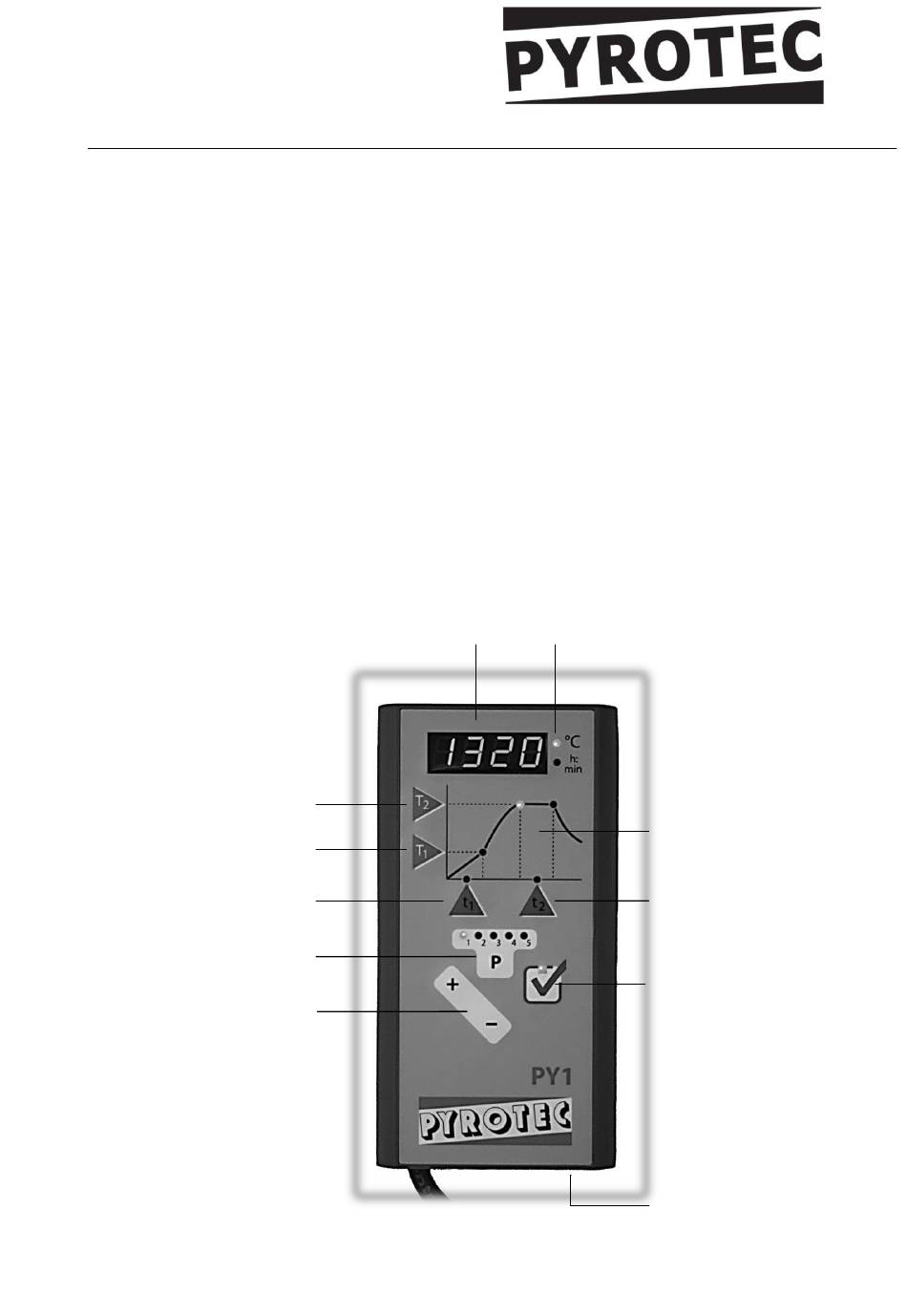

Controllers Panel

1 display for kiln temperature and program values
2 unit of the value shown in (1)
3 read / change final temperature
4 read / change 1st dwell temperature
5 read / change 1st heat up ramp
6 selecting a program
7 keys to change program values
8 graphical scheme of the firing curve (LEDs pointing to current segment)
9 read / change dwell time
10 key to start and to stop firing
11 power switch
