INSTALLATION

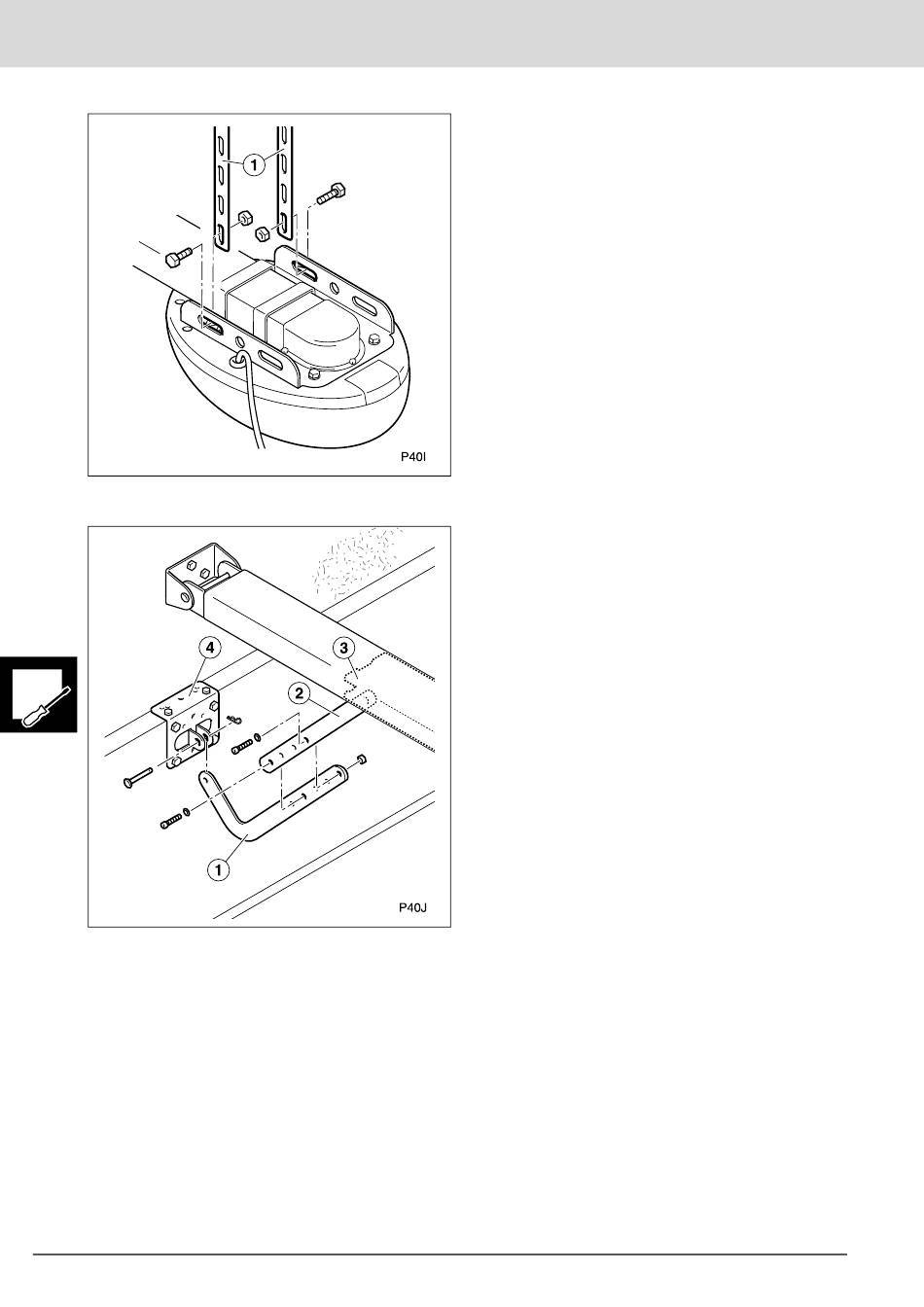

Attach the motor to the overhead strips
Join and attach the drag arms
58
Installation Manual
1 Attach the rear part of the equipment to the
overhead strips (1).
1 Join the curved drag arm (1) to the straight drag arm
(2) attached to the carriage (3).
2 Attach the curved arm (1) to the door anchoring (4).
