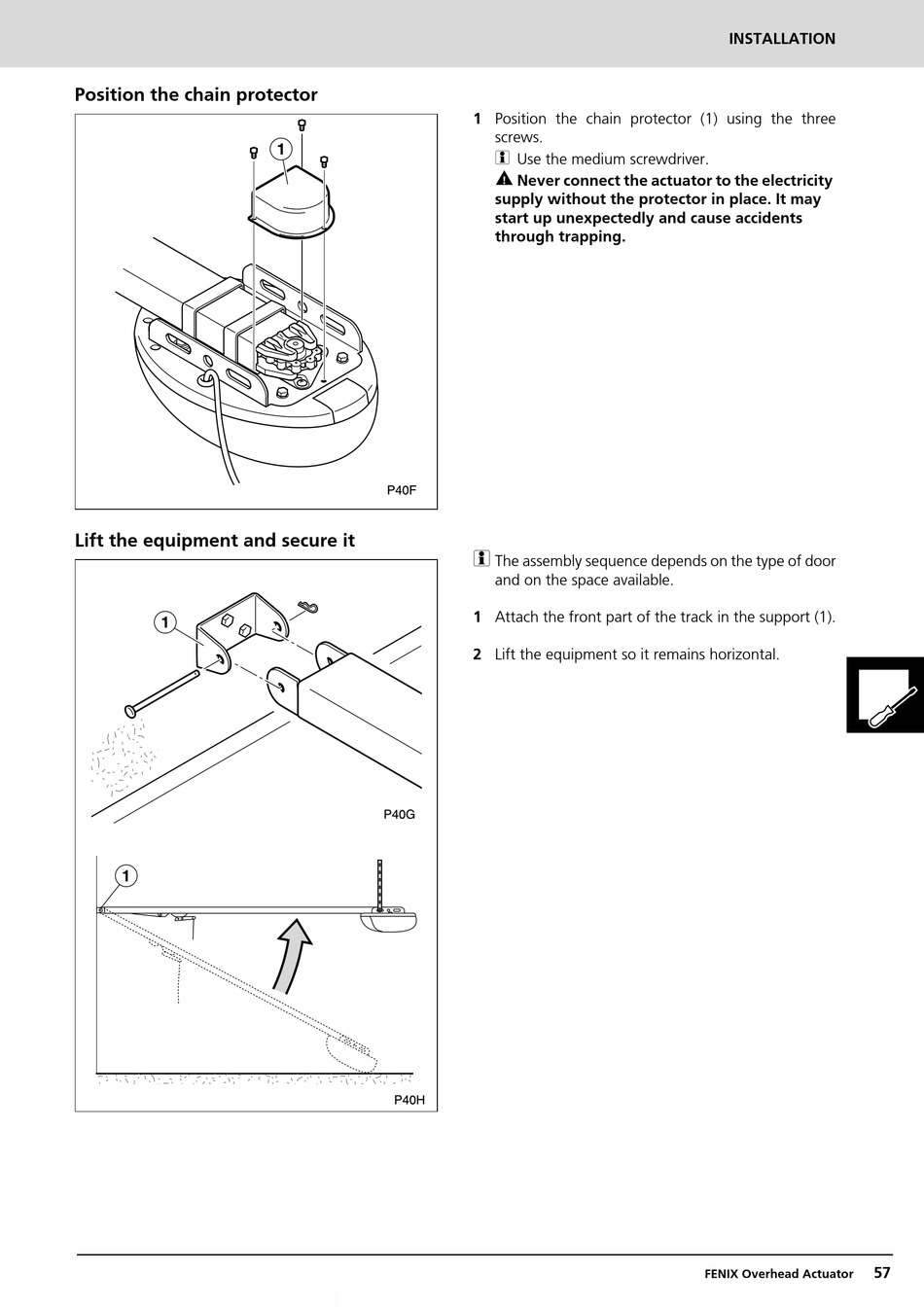

Position the chain protector
Lift the equipment and secure it
1 Position the chain protector (1) using the three
screws.

Use the medium screwdriver.

Never connect the actuator to the electricity
supply without the protector in place. It may
start up unexpectedly and cause accidents
through trapping.

The assembly sequence depends on the type of door
and on the space available.
1 Attach the front part of the track in the support (1).
2 Lift the equipment so it remains horizontal.
INSTALLATION
57
FENIX Overhead Actuator
