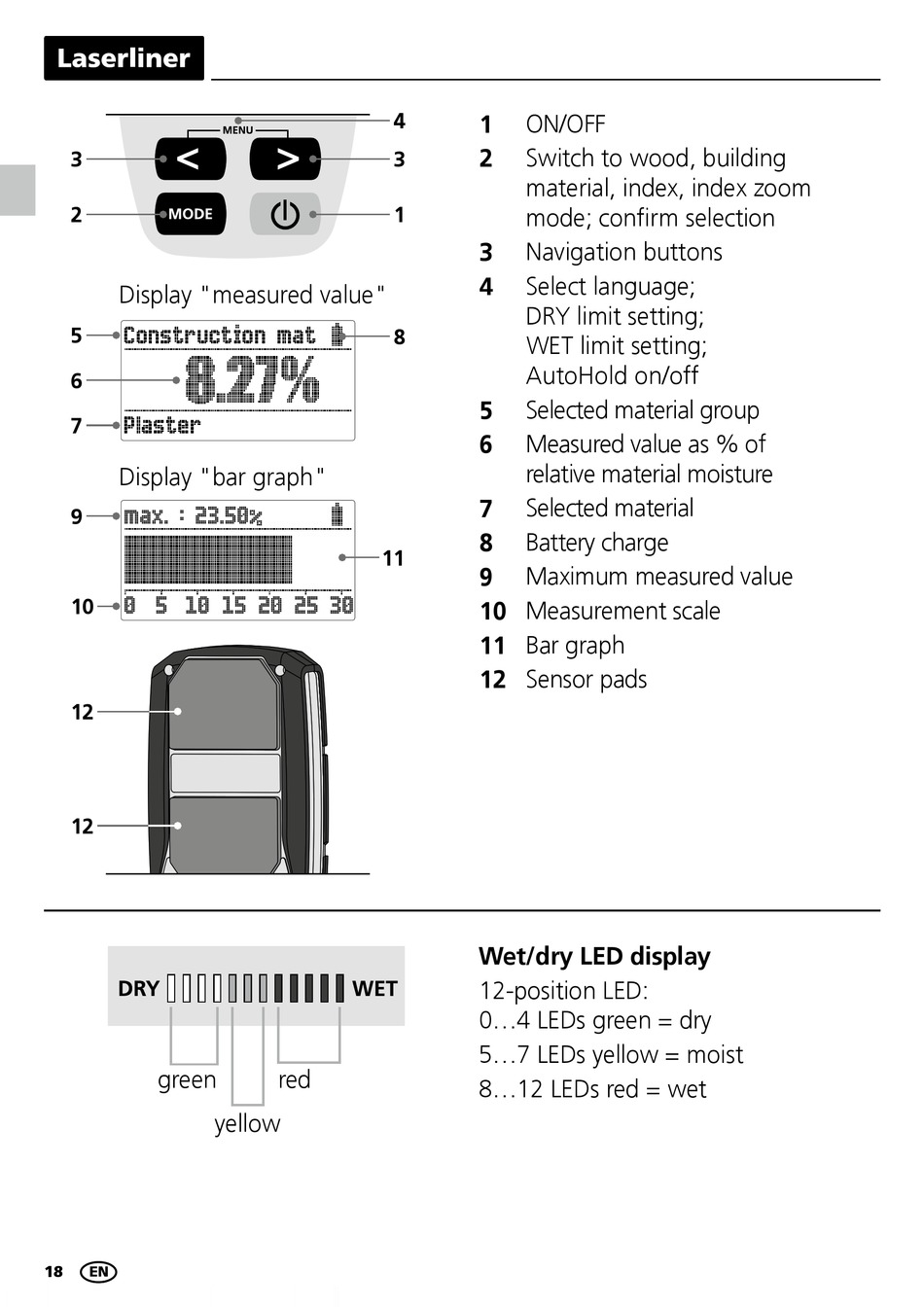

Display "measured value"
Construction mat
5
6
Plaster
7
Display "bar graph"
9
10
12
12
green
yellow
18
EN
4
3
1
8
11
red
ON/OFF
1
Switch to wood, building
2
material, index, index zoom
mode; confirm selection
3 Navigation buttons
4 Select language;
DRY limit setting;
WET limit setting;
AutoHold on/off
5 Selected material group
Measured value as % of
6
relative material moisture
7 Selected material
8 Battery charge
Maximum measured value
9
Measurement scale
10
11 Bar graph
12 Sensor pads
Wet/dry LED display
12-position LED:
0...4 LEDs green = dry
5...7 LEDs yellow = moist
8...12 LEDs red = wet
