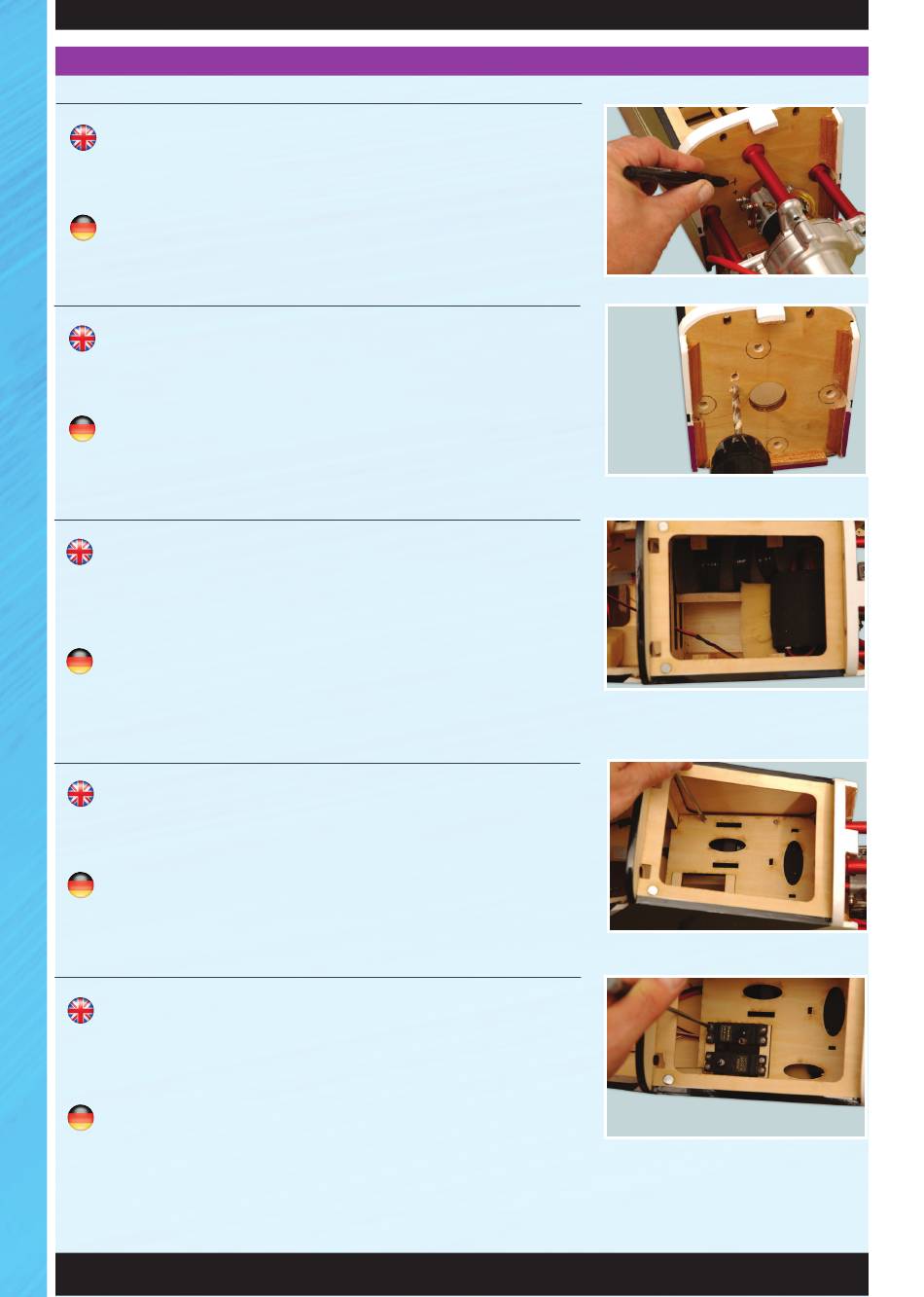

Wot 4 Xtreme - Instructions / WOT 4 Xtreme - Bauanleitung
STEP 22
Offer the engine up to the bulkhead and mark the positions of the throttle
and choke pushrods.
SCHRITT 22
Halten Sie den Motor an den Motorschott und markieren die Position der
löcher des Gas - und Chokegestänges.
STEP 23
Drill clearance holes for the throttle and choke pushrods as shown.
The engine can now be mounted to the firewall using your stand-offs.
SCHRITT 23
Bohren Sie die löcher für das Gas - und Chokegestänge, wie gezeigt.
Jetzt kann der Motor mit dem montierten Abstandshaltern am Motorschott
montiert werden.
STEP 24
Remove the tray in the bay immediately behind the front bulkhead. Install
your receiver battery pack and ignition battery pack and ignition module
in protective foam packing.
SCHRITT 24
Entfernen Sie den Träger aus der Radiobucht, der sich direkt hinter dem
Motorschott befindet. Installieren Sie die, in Schaumstoff eingepackten
Empfänger- und Zündungsakku und das Zündmodul.
STEP 25
Replace the plywood tray to retain the installed batteries and module.
Ensure that no wires are trapped when you replace the retaining screws.
SCHRITT 25
Befestigen Sie wieder den Sperrholzträger, damit die Akkus und das Modul
gehalten werden. Achten Sie darauf, dass keine Kabel eingeklemmt
werden, wenn Sie die Schrauben festziehen.
STEP 26
Install two servos in the plywood tray - one for throttle and one for choke
- as shown. Use the ferrules, grommets and mounting screws supplied
with your servos.
SCHRITT 26
Befestigen Sie zwei Servos auf dem Sperrholzträger - das eine für das
Gas und das andere für den Choke - wie gezeigt. Verwenden Sie dabei
die Gummiblöcke, Messinghülsen und Schrauben, die mit Ihren Servos
mitgeliefert wurden,
