STEP 9: Power up the drive
• Ensure the drive enable signal is not given, terminal 11 (or terminal 31 and 34 on Unidrive M300) is open.
• Ensure the run signal is not given, terminal 12 and 13 are open (Unidrive M100, M200 and M300).
• Ensure the motor is connected to the drive.
•
Ensure the motor connection (Δ or Y) is correct.

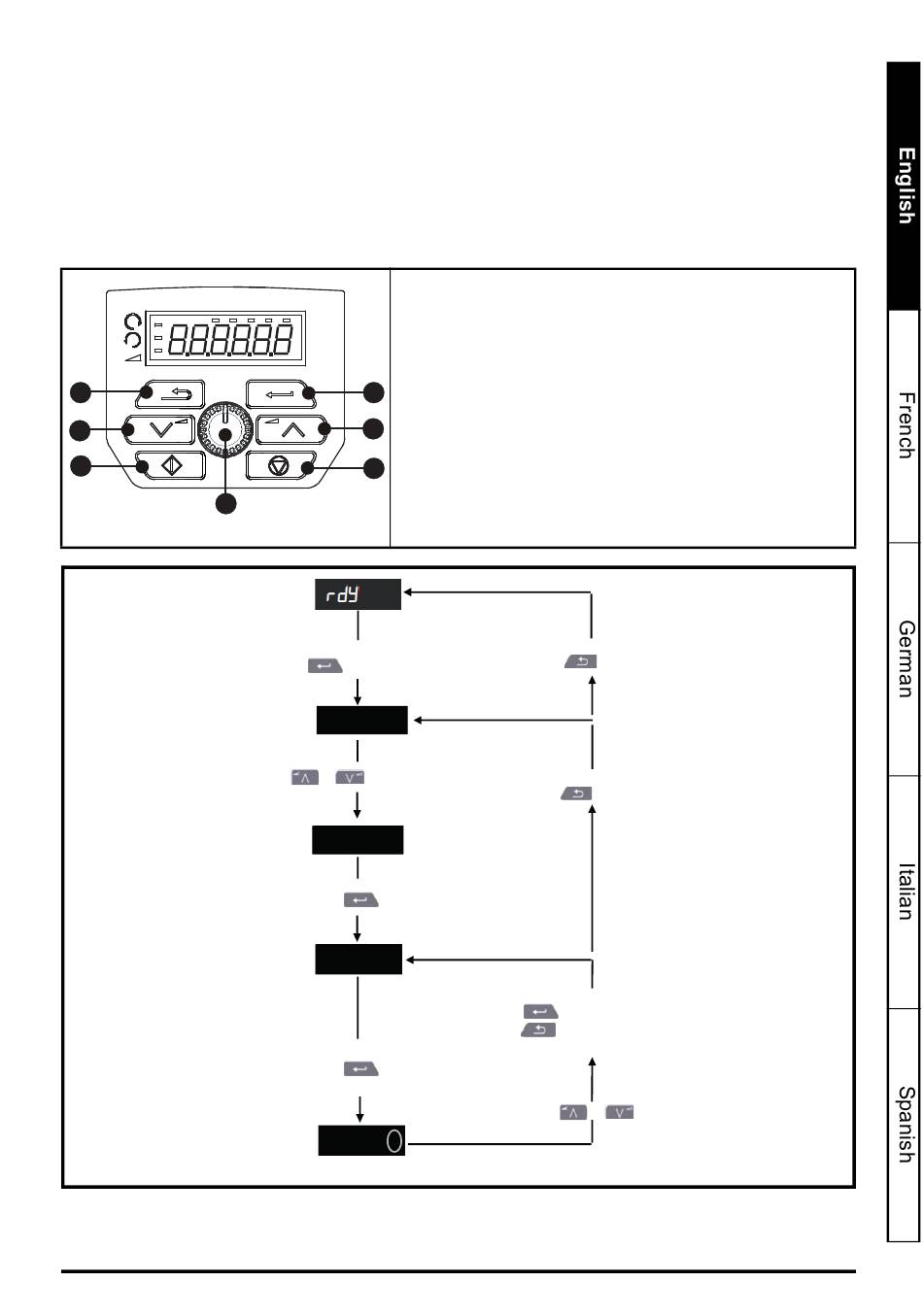

STEP 10: Use the keypad
The display provides information to the user regarding the operating status of the drive, alarms and trip code.
The keypad provides the means for changing parameters, stopping and starting the drive, and the ability to perform
a drive reset.
V A Hz rpm %
7
6
5
4
0.00
View Mode
Parameter
Value View
Unidrive M100/M101/M200/M201/M300 Step By Step Guide
Issue Number: 2
(1) The Enter button is used to enter parameter view or edit mode,
or to accept a parameter edit.
(2 / 6) The Navigation buttons can be used to select individual
parameters or to edit parameter values.
(3) The Stop / Reset button (red) is used to stop and reset the
drive in keypad mode (enabled for Unidrive M101 and M201). It
1
1
can also be used to reset the drive in terminal mode.
(4) The Speed Ref Potentiometer is used to control the frequency
2
reference (only on Unidrive M101 and M201).
(5) The Start button (green) is used to start the drive in keypad
3
mode (enabled for Unidrive M101 and M201).
(7) The Escape button is used to exit from the parameter edit /
view mode.
Status
Mode
To enter Parameter View Mode,
press button
Parameter
Pr 10
Press or to select parameter
Pr 01
To view parameter value
press button
0.00
To enter Edit Mode,
press button
0.00
Edit Mode (edited digit flashes)
To return to Status Mode,
press button
To return to Parameter View Mode,
press button
To return to Parameter Value View
press button to keep the new value
button to ignore new value and
press
return the parameter to the pre-edited value
Holding or increases or decreases value
