AMD AM2(+) / AM3(+) / AM4 / FM1 / FM2(+)
Allgemeines
Für die Montage des Kühlers empfehlen wir
die Installation außerhalb des Gehäuses.
Installation video
Es werden folgende Bauteile benötigt:
1x Pure Rock CPU-Kühler (1), 1x 120mm Lüfter (2), 2x Lange
AMD Montagebrücken (5), 1x Kühler-Montagebrücke (6), 4x
AMD Abstandsbolzen (9), 2x Intel/AMD Befestigungsschrauben
der Montagebrücke (11), 4x AMD Backplate-Schrauben (13), 2x
Lüfterklammern (15), 4x AM3 Unterlegscheiben (16)

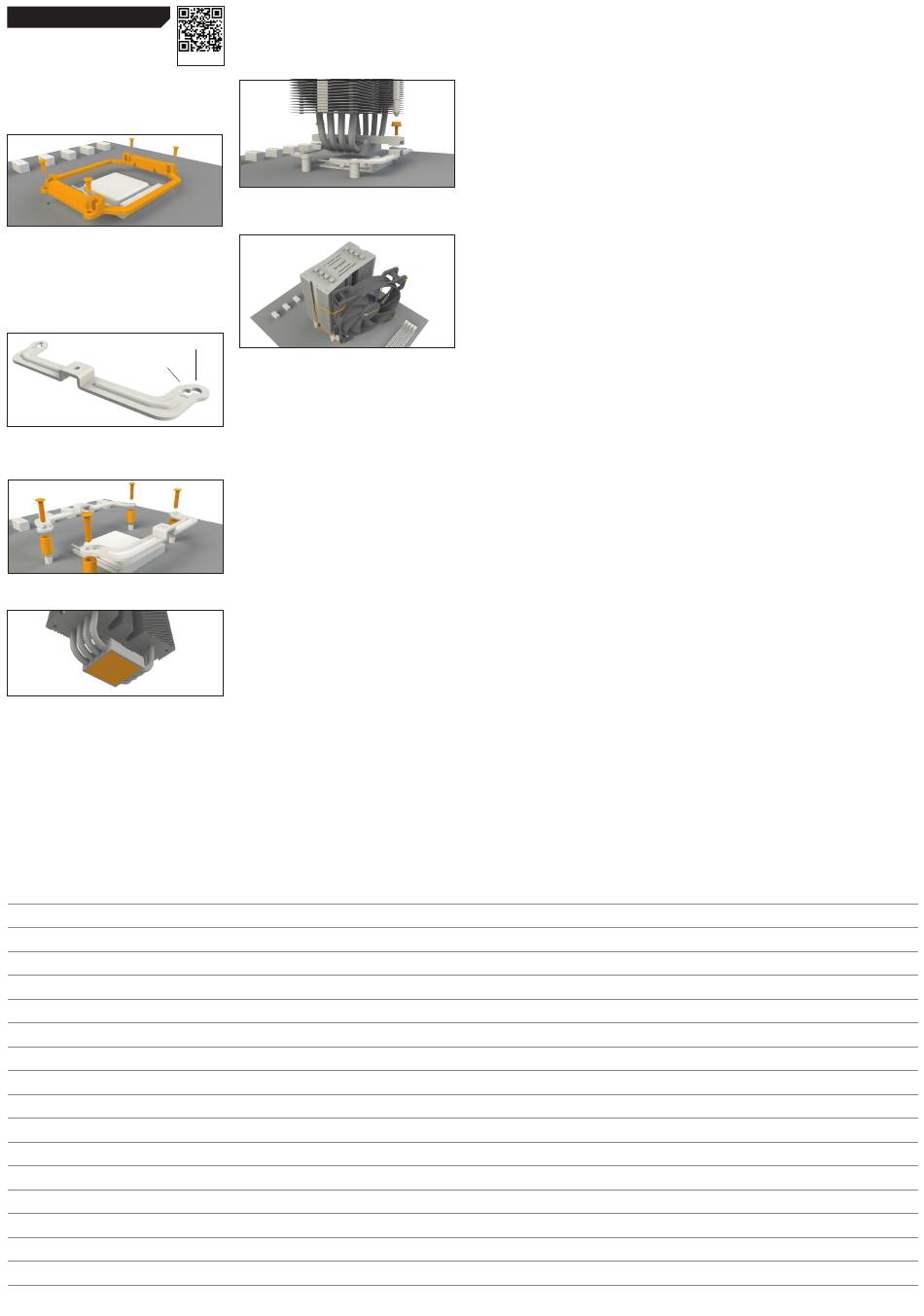

Aufbau des Kühlerbefestigungsrahmens
Bitte entfernen Sie zur Kühlermontage die beiden Künst-
stoffhalterungen des AMD-Retentionmoduls. Die werkseitig
auf der Mainboard-Rückseite befestigte Backplate wird für
die weitere Installation des Kühlers benötigt.
Hinweis: Zur Installation des Pure Rock (1) auf einem AM3
Mainboard nutzen Sie bitte die vier AM3 Unterlegscheiben
(16) und legen diese auf die Bolzen der werkseitig montierten
Backplate über die Mainboard Vorderseite.
AM2(+) / AM3(+) / FM1 / FM2(+)
AM4
Platzieren
Sie
über
die
Vorderseite
die
Abstandsbolzen (9) auf die Bolzen der Backplate und
fixieren die beiden langen AMD Montagebrücken (5) mit
Hilfe der AMD Backplate-Schrauben (13).
Vor der Montage muss zunächst die Schutzfolie von der
Unterseite des CPU-Kühlers entfernt werden.
Vorsicht: Die mitgelieferte Wärmeleitpaste ist nicht zum
Verzehr geeignet. Bei Verzehr ausreichend Wasser trinken und
umgehend einen Arzt aufsuchen. Außerhalb der Reichweite
von Kindern aufbewahren. Vermeiden Sie Haut- und
Augenkontakt.
Notizen
Montage des CPU-Kühlers
Legen Sie die Kühler-Montagebrücke (6) mittig auf den Kühler
(1). Anschließend platzieren Sie den Kühler auf der CPU.
Stecken Sie die Intel/AMD Befestigungsschrauben der Kühler
Montagebrücke (11) von oben auf die Kühler-Montagebrücke
(6) und schrauben Sie diese abwechselnd fest. Dazu können
sie einen handelsüblichen Kreuz-Schraubendreher verwenden.
Befestigen Sie den 120mm Lüfter (2) mit Hilfe der Lüfter-
klammern (15) am Kühler (1). Anschließend verbinden Sie den
Lüfter mit dem CPU-Lüfteranschluss des Mainboards.
Zur Demontage des 120mm Lüfters (2) drücken Sie die Kerben
der Lüfterklammern (15) vom Lüfter weg.
vier
AMD
Limited Warranty
As per the terms and conditions of this limited warranty as given
below, be quiet! warrants its new products to be free of defects
resulting from faulty materials and faulty manufacturing for the length
of the warranty period.
I. APPLICABILITY
This non-transferable warranty is applicable to newly purchased,
previously unopened be quiet! products and is enforceable by only
the original consumer purchaser. Proof of purchase is required for
warranty service, so should be retained. be quiet! does not provide
warranty registration services.
II. WARRANTY PERIOD
For eligible products, parts and labor are warranted for the appli-
cable warranty period from the date of purchase. The applicable
warranty period varies by product model, and is identified in your
user documentation, on the product package, or as listed below.
Should any of these warranty periods differ, the longest specified
warranty period will apply. Replaced products will be warranted
for the remainder of the original warranty period or thirty days,
whichever is longer.
III. EXCLUSIONS
The following are not covered by the warranty:
1. Normal wear and tear.
2. Any product which has been modified without permission from
be quiet!, or on which the serial number or warranty sticker has been
defaced, modified, or removed.
3. Damage, deterioration or malfunction resulting from:
Accident, abuse, misuse or improper use, neglect, connection to
an improper voltage source, unauthorized product modification, or
failure to follow instructions included with the product.
Fire, water, lightning, or other acts of nature.
Repair or attempted repair by anyone not authorized by be quiet!.
Shipping or transport damage (claims must be made with the carrier).
Any other cause which does not relate to a defect in materials or
manufacturing workmanship.
4. Cartons, cases, batteries, cabinets, tapes, accessories or other
consumables used with this product.
5. be quiet!, Inc. does not warrant that this product will meet your
requirements. It is your responsibility to determine the suitability of
this product for your purpose.
6. Removal or installation charges.
7. Shipping charges.
8. Any incidental charges.
IV. EXCLUSION OF DAMAGES
be quiet!'s sole obligation and liability under this warranty is limited
to the repair or replacement of a defective product at its option.
be quiet! shall not, in any event, be liable for any special, incidental,
indirect, or consequential damages whatsoever, including but not
limited to loss of profits, revenue, or data (whether direct or indirect),
damages resulting from interruption of service and loss of business,
or for liability in tort relating to this product or resulting from its use
or possession, even if be quiet! has been advised previously of the
possibility of such damages.
V. LIMITATIONS OF IMPLIED WARRANTIES
There are no other warranties, expressed or implied, including but not
limited to those of merchantability or fitness for a particular purpose.
The duration of implied warranties is limited to the warranty length
specified in Paragraph II.50
VI. LOCAL LAW AND YOUR WARRANTY
This warranty gives you specific legal rights. You may also have other
rights granted under local law. These rights may vary.
VII. NO OTHER WARRANTY
No be quiet! employee, dealer, or other agent is authorized to make
any modification, extension, or addition to this warranty.
VIII. TO OBTAIN TECHNICAL SUPPORT OR WARRANTY SERVICE
Please see your product owner's manual or visit the service section
at www.bequiet.com for details and contact information. You will
need to provide proof of purchase for warranty service.
