3. Mounting of the
Put the connectors and the cable through the aluminum clamping ring first, followed by the
tonearm pillar.
Now set the approximate height and position of the tonearm and secure it with the arm locking
screw in the aluminum clamping ring (see Picture 5). After that you can remove the rubber band,
which is used as an transport securing.

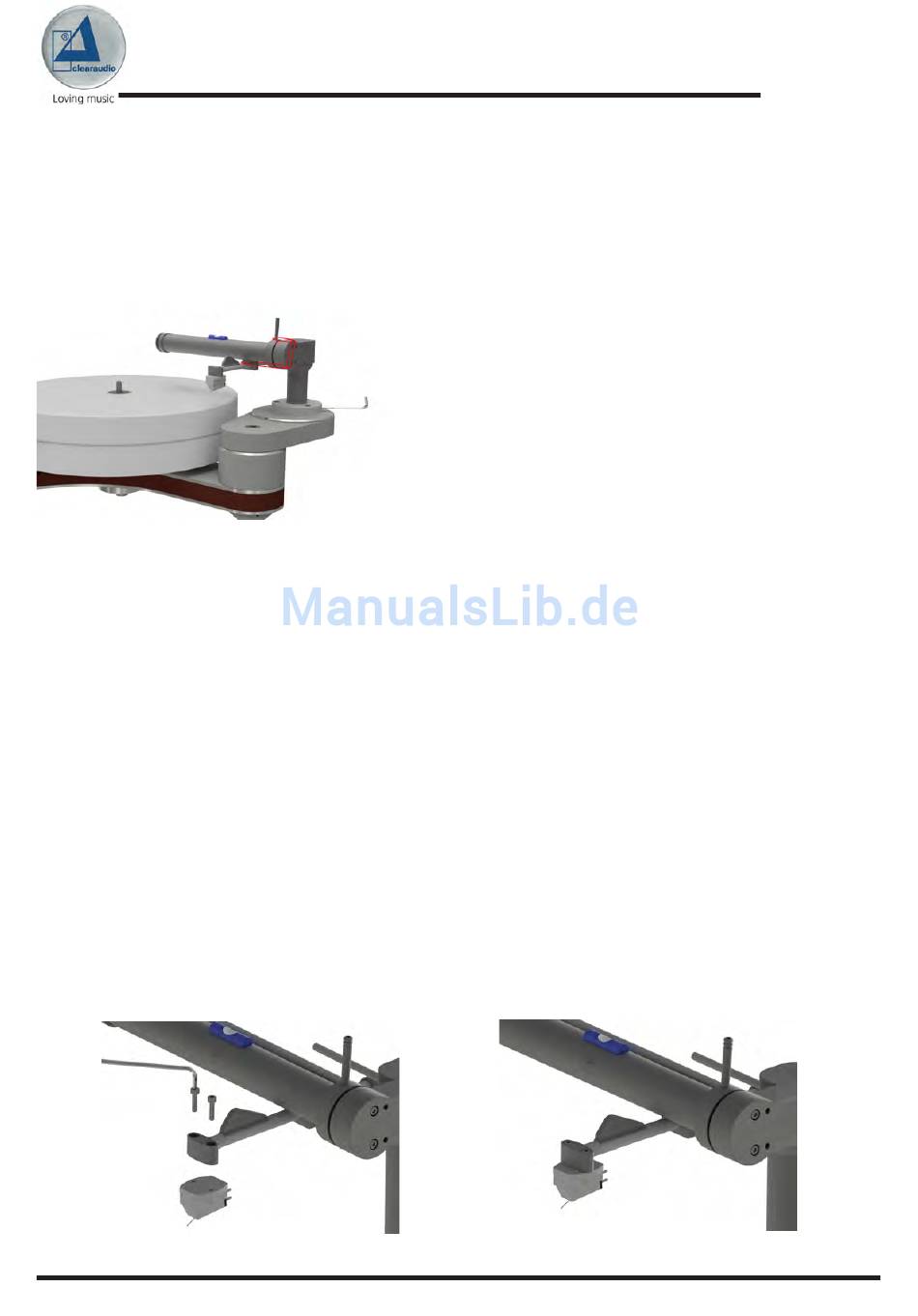

Pic. 5: Mounting the Tonarm
4. Mounting of the cartridge
Important note: To avoid any damage to your cartridge during assembly, please leave
the stylus guard on your cartridge and proceed very carefully.
Make sure that the tonearm height allows enough space above the turntable platter for cartridge
to be fitted. Using the screws supplied (M2.5 x 12 or M2.5 x 14), attach the cartridge on to the
aluminum headshell.
Next, connect the arm cable clips to the cartridge contacts.
Please observe the following color coding:
Red: right channel / R+
Green: right channel / R-
White: left channel / L+
Blue: left channel / L-
Pic. 6: Mounting the cartridge
© clearaudio electronic GmbH 2016
TT5
tonearm
Pic. 7: Mounted cartridge
