5.5 Tangentially aligning the tonearm
If you have been using an LP record for previous adjustments, remove it and place the tangential
alignment gauge supplied onto the spindle and turn it so that it sits beneath the tonearm.
Using the cueing lever, lower the stylus onto the gauge at a position near to the inner groove of
an LP, and then move the gauge until the stylus is exactly on the red reference line (see Picture
15). The stylus position is best viewed from the side with the eye at record surface height.
Ensure good lighting.
Using the cueing lever lift the stylus and position it at the outer edge of the platter.
Lower the stylus on to the gauge, (see picture 16).
Is the stylus not on the reference line, lift the cartridge again and loosen the arm locking screw on
the aluminum arm base, then turn the tonearm in the corresponding direction before
retightening the locking screw.
Please take care that the height of the tonearm is not changed.
Now check the setting as described at the beginning of point 5.5 and, if necessary, repeat the
adjustment again.

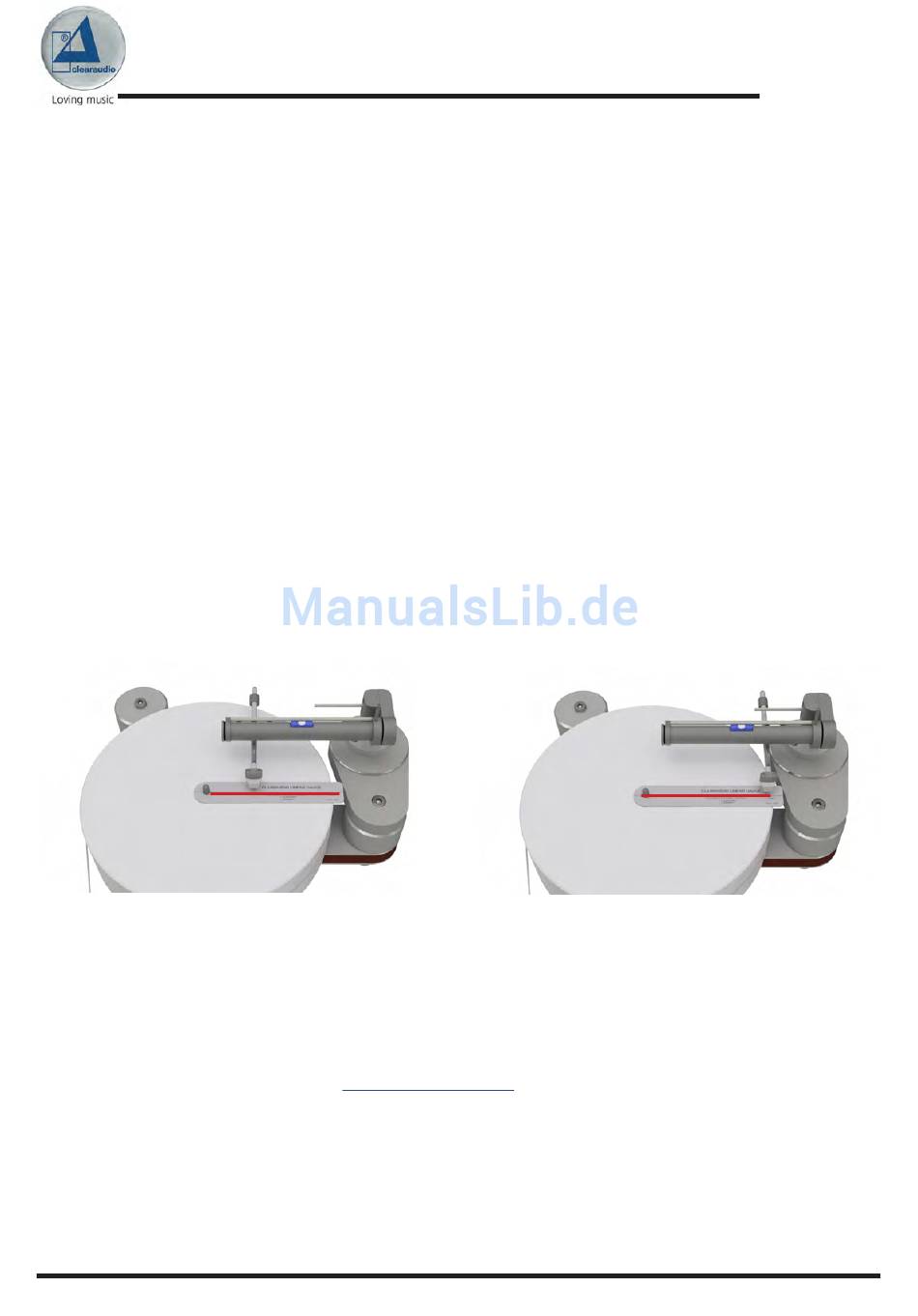

Pic. 15: Lowing over the „run-out groove"
Pic. 16: Lowing over the „lead-in groove"
5.6 Fine adjustment of the tracking force
Now finely set the tracking force of your cartridge according to the manufacturer's instructions.
To set the correct tracking force we recommend using the Clearaudio Weight Watcher
(Art. AC094; also available through www.analogshop.de).
After completing the tracking force settings, please make sure that the signal cable forms a
smooth loop that does not foul as the arm carriage moves from the lead-in groove to the run-out
groove.
TT5
Your Clearaudio
tangential tonearm is now fully adjusted and ready for use.
