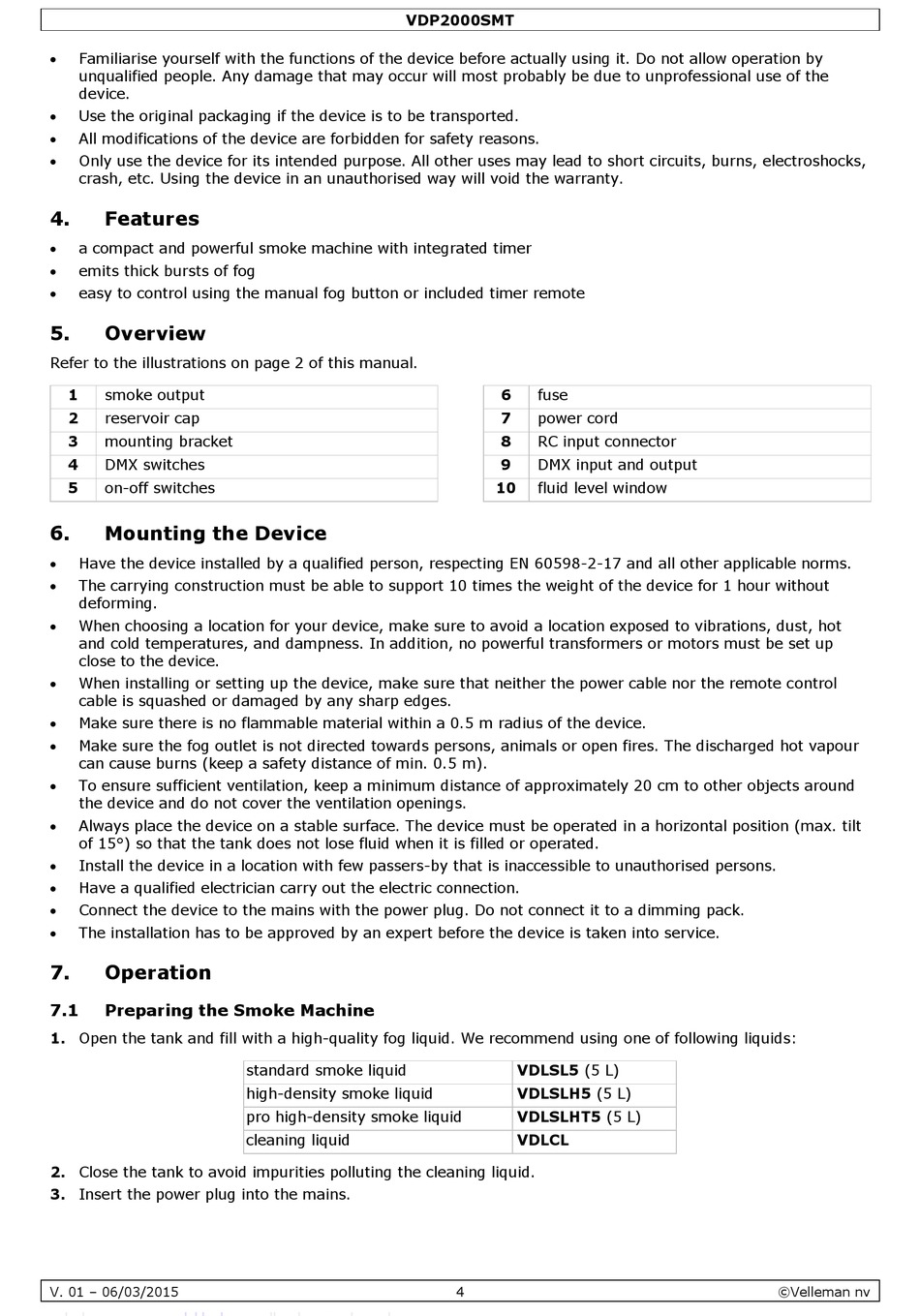

 Familiarise yourself with the functions of the device before actually using it. Do not allow operation by
unqualified people. Any damage that may occur will most probably be due to unprofessional use of the
device.
 Use the original packaging if the device is to be transported.
 All modifications of the device are forbidden for safety reasons.
 Only use the device for its intended purpose. All other uses may lead to short circuits, burns, electroshocks,
crash, etc. Using the device in an unauthorised way will void the warranty.
4. Features
 a compact and powerful smoke machine with integrated timer
 emits thick bursts of fog
 easy to control using the manual fog button or included timer remote
5. Overview
Refer to the illustrations on page 2 of this manual.
1 smoke output
2 reservoir cap
3 mounting bracket
4 DMX switches
5 on-off switches
6.

Mounting the Device

 Have the device installed by a qualified person, respecting EN 60598-2-17 and all other applicable norms.
 The carrying construction must be able to support 10 times the weight of the device for 1 hour without
deforming.
 When choosing a location for your device, make sure to avoid a location exposed to vibrations, dust, hot
and cold temperatures, and dampness. In addition, no powerful transformers or motors must be set up
close to the device.
 When installing or setting up the device, make sure that neither the power cable nor the remote control
cable is squashed or damaged by any sharp edges.
 Make sure there is no flammable material within a 0.5 m radius of the device.
 Make sure the fog outlet is not directed towards persons, animals or open fires. The discharged hot vapour
can cause burns (keep a safety distance of min. 0.5 m).
 To ensure sufficient ventilation, keep a minimum distance of approximately 20 cm to other objects around
the device and do not cover the ventilation openings.
 Always place the device on a stable surface. The device must be operated in a horizontal position (max. tilt
of 15°) so that the tank does not lose fluid when it is filled or operated.
 Install the device in a location with few passers-by that is inaccessible to unauthorised persons.
 Have a qualified electrician carry out the electric connection.
 Connect the device to the mains with the power plug. Do not connect it to a dimming pack.
 The installation has to be approved by an expert before the device is taken into service.
7. Operation
7.1 Preparing the Smoke Machine
1. Open the tank and fill with a high-quality fog liquid. We recommend using one of following liquids:
2. Close the tank to avoid impurities polluting the cleaning liquid.
3. Insert the power plug into the mains.
V. 01 – 06/03/2015
VDP2000SMT
standard smoke liquid
high-density smoke liquid
pro high-density smoke liquid
cleaning liquid
6 fuse
7 power cord
8 RC input connector
9 DMX input and output
10 fluid level window
VDLSL5 (5 L)
VDLSLH5 (5 L)
VDLSLHT5 (5 L)
VDLCL
