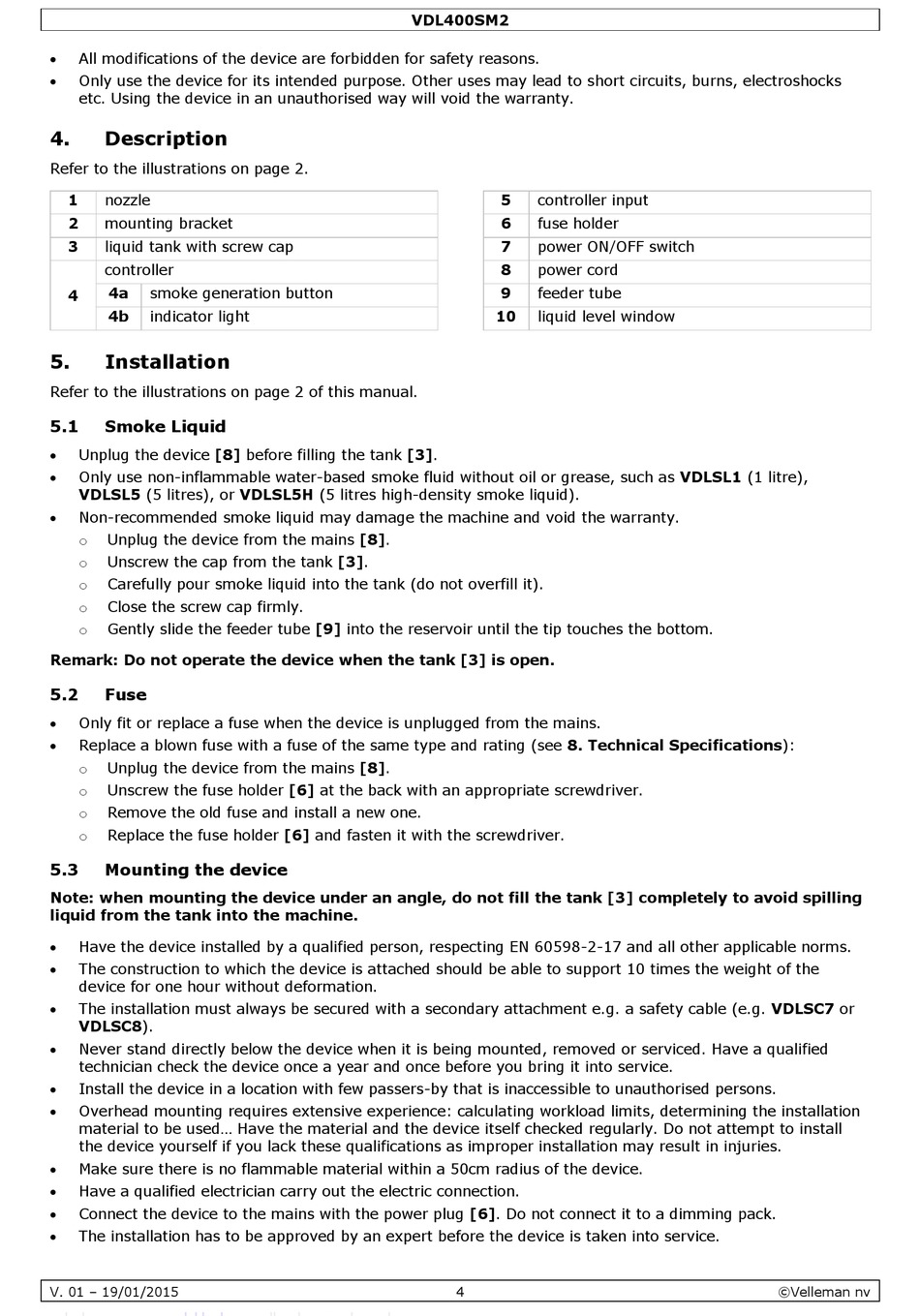

 All modifications of the device are forbidden for safety reasons.
 Only use the device for its intended purpose. Other uses may lead to short circuits, burns, electroshocks
etc. Using the device in an unauthorised way will void the warranty.
4. Description
Refer to the illustrations on page 2.
1 nozzle
2 mounting bracket
3 liquid tank with screw cap
controller
4a smoke generation button
4
4b indicator light
5. Installation
Refer to the illustrations on page 2 of this manual.
5.1 Smoke Liquid
 Unplug the device [8] before filling the tank [3].
 Only use non-inflammable water-based smoke fluid without oil or grease, such as VDLSL1 (1 litre),
VDLSL5 (5 litres), or VDLSL5H (5 litres high-density smoke liquid).
 Non-recommended smoke liquid may damage the machine and void the warranty.
Unplug the device from the mains [8].
o
Unscrew the cap from the tank [3].
o
Carefully pour smoke liquid into the tank (do not overfill it).
o
Close the screw cap firmly.
o
Gently slide the feeder tube [9] into the reservoir until the tip touches the bottom.
o
Remark: Do not operate the device when the tank [3] is open.
5.2 Fuse
 Only fit or replace a fuse when the device is unplugged from the mains.
 Replace a blown fuse with a fuse of the same type and rating (see 8. Technical Specifications):
Unplug the device from the mains [8].
o
Unscrew the fuse holder [6] at the back with an appropriate screwdriver.
o
Remove the old fuse and install a new one.
o
Replace the fuse holder [6] and fasten it with the screwdriver.
o
5.3

Mounting the device

Note: when mounting the device under an angle, do not fill the tank [3] completely to avoid spilling
liquid from the tank into the machine.
 Have the device installed by a qualified person, respecting EN 60598-2-17 and all other applicable norms.
 The construction to which the device is attached should be able to support 10 times the weight of the
device for one hour without deformation.
 The installation must always be secured with a secondary attachment e.g. a safety cable (e.g. VDLSC7 or
VDLSC8).
 Never stand directly below the device when it is being mounted, removed or serviced. Have a qualified
technician check the device once a year and once before you bring it into service.
 Install the device in a location with few passers-by that is inaccessible to unauthorised persons.
 Overhead mounting requires extensive experience: calculating workload limits, determining the installation
material to be used... Have the material and the device itself checked regularly. Do not attempt to install
the device yourself if you lack these qualifications as improper installation may result in injuries.
 Make sure there is no flammable material within a 50cm radius of the device.
 Have a qualified electrician carry out the electric connection.
 Connect the device to the mains with the power plug [6]. Do not connect it to a dimming pack.
 The installation has to be approved by an expert before the device is taken into service.
V. 01 – 19/01/2015
VDL400SM2
5 controller input
6 fuse holder
7 power ON/OFF switch
8 power cord
9 feeder tube
10 liquid level window
