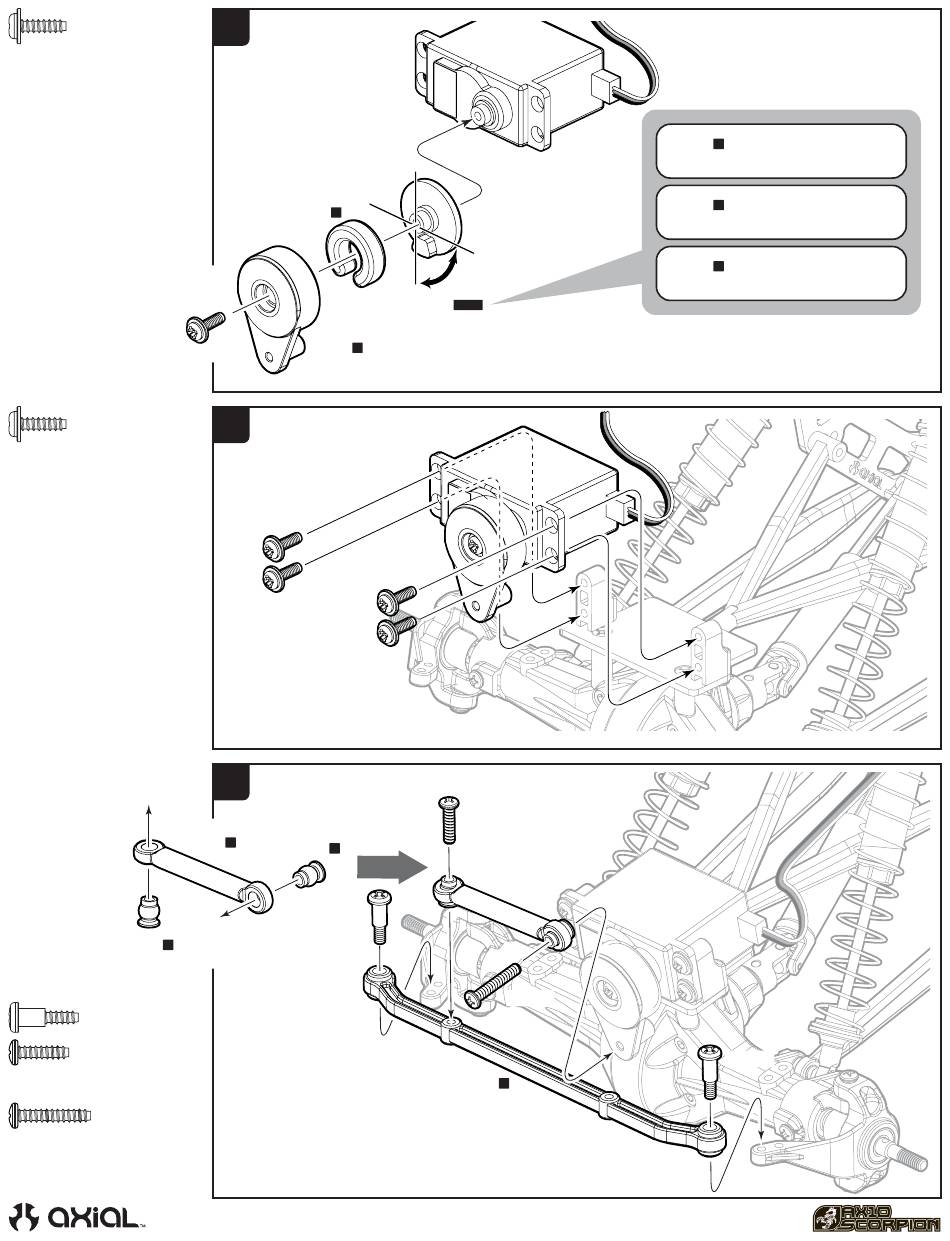

Axial AX10 SCORPION Bedienungsanleitung Seite 24

AXA1280
x1
M3x10mm Flange Screw
AXA1280
AXA1280
x4
M3x10mm Flange Screw
AX80017
AX80018 1
AXA1280
x2
M3x14mm Step Screw
AXA866
x1
M3x12mm Tapping Binder Head
AXA868
x1
M3x18mm Tapping Binder Head
31
Install when servo
is in neutral position.
Bei Montage auf
Neutralstellung achten.
AX80006 8
AX80006 4
32
AXA1280
AXA1280
AXA1280
AXA1280
33
2
AX80018 1
AXA1290
90°
AX80006 5, 6, 7
AXA866
AXA868
AX80017 1
23
AX80006 7
23 Airtronics / JR / KO
AX80006 6
24 Hitec
AX80006 5
25 Futaba
AXA1290
