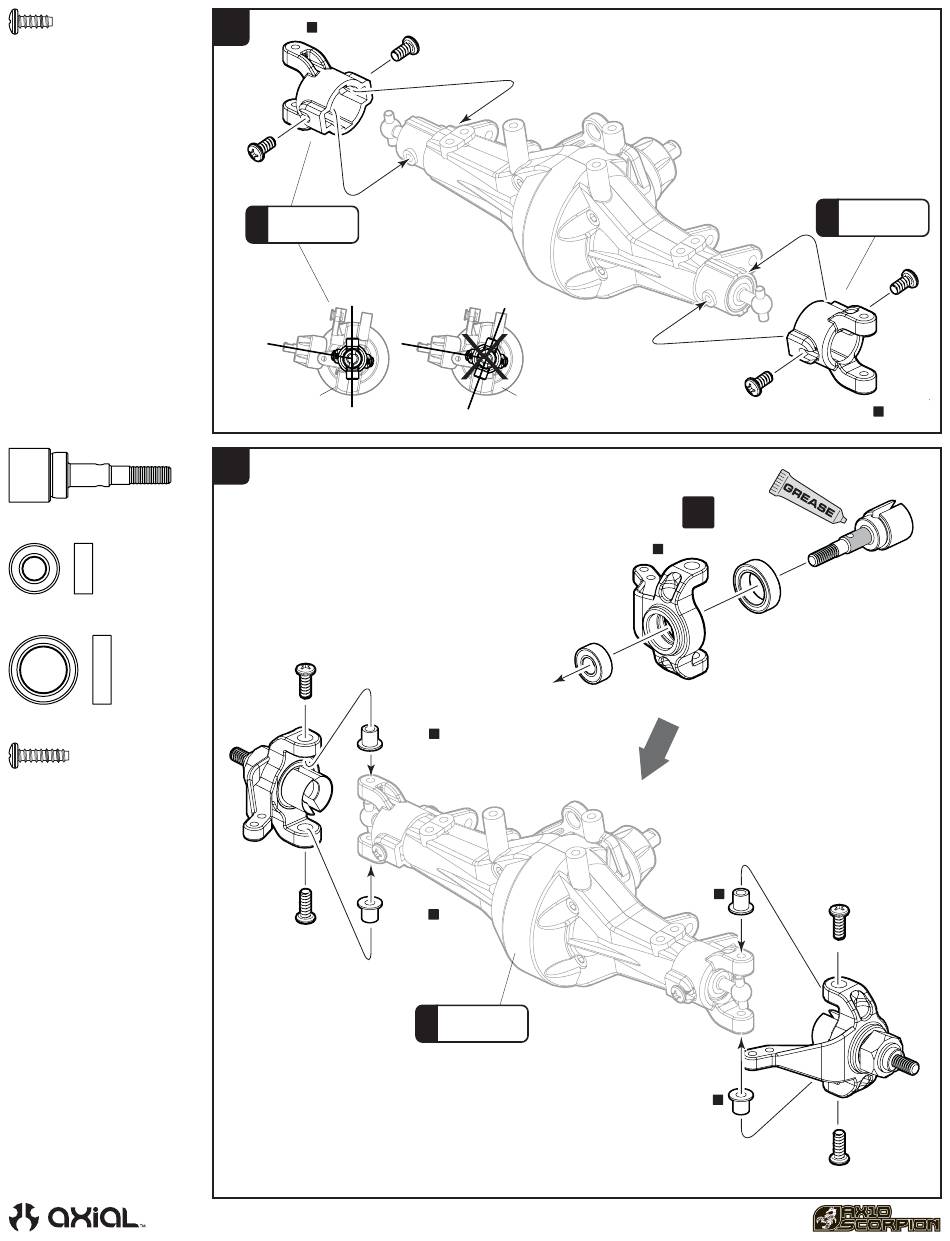

Axial AX10 SCORPION Bedienungsanleitung Seite 12

AXA863
x4
M3x6mm Tapping Binder Head
AX30366
x2
Axle 5x35mm
AXA1221
x2
Bearing 5x11x4mm
AXA1230
x2
Bearing 10x15x4mm
AXA865
x4
M3x10mm Tapping Binder Head
4
AX80012 2
AXA863
!
Note Direction
Richtung beachten
OK!
5
AXA865
AX80018
AX80018
AXA865
AXA863
NO!
AXA1221
3
3
!
Note Direction
Richtung beachten
11
AXA863
x2
AX80004 1
AXA1230
AX80018 3
AX80018 3
!
Note Direction
Richtung beachten
AXA863
AX80012 1
AX30366
AXA865
AXA865
