Axial AX10 SCORPION Bedienungsanleitung Seite 11

AXA1221
x2
Bearing 5x11x4mm
AXA085
x2
M3x10mm
AXA087
x2
M3x16mm
AXA1040
x2
M3 Thin Hex Nut
3
!

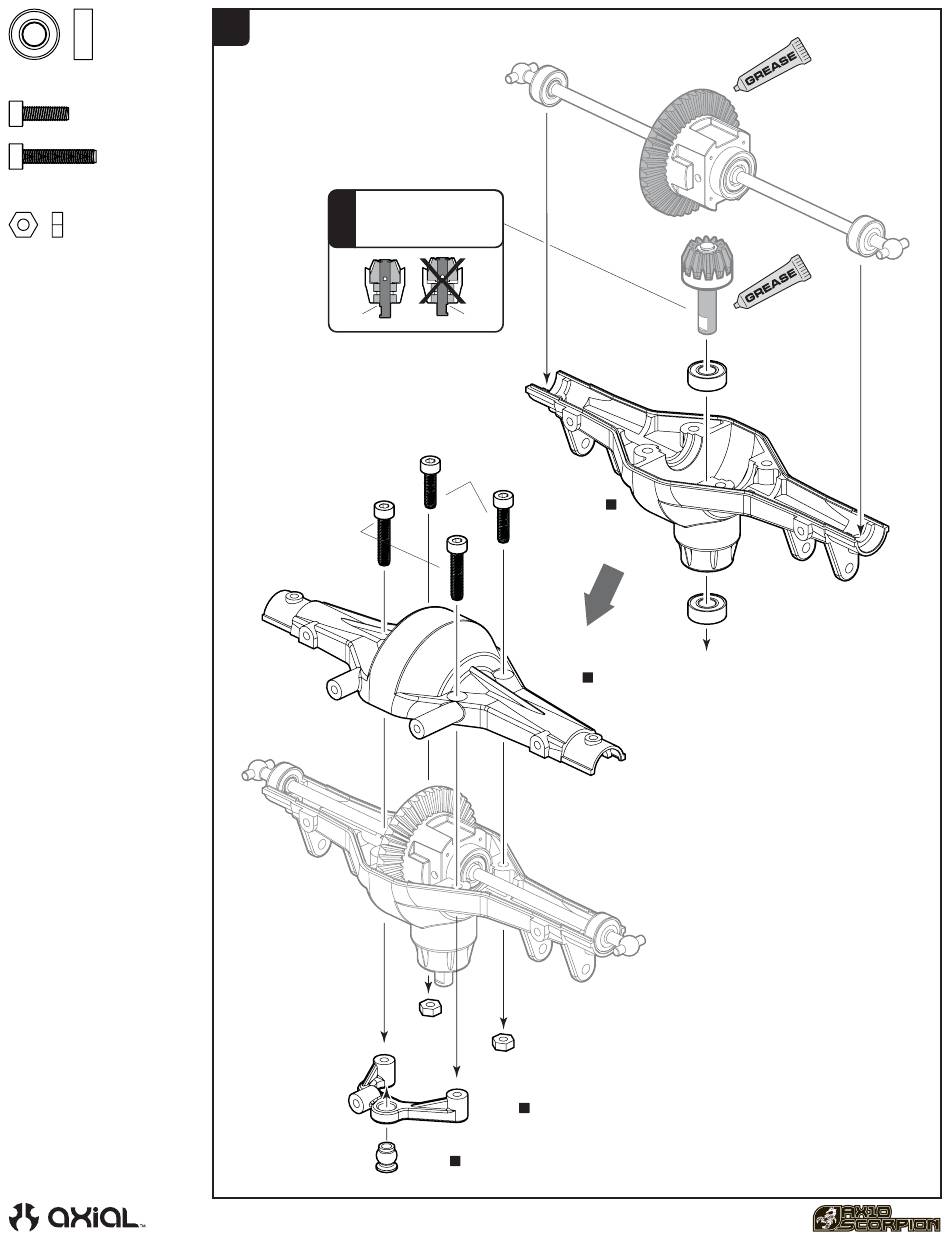

If Gear mesh is tight,
make sure input shaft
is seated correctly.
OK!
AXA087
AXA1040
NO!
AXA085
AX80003
AX80003 1
AXA1040
AX80019 1
AX80018 1
10
AXA1221
2
AXA1221
