Axial AX10 SCORPION Bedienungsanleitung Seite 10

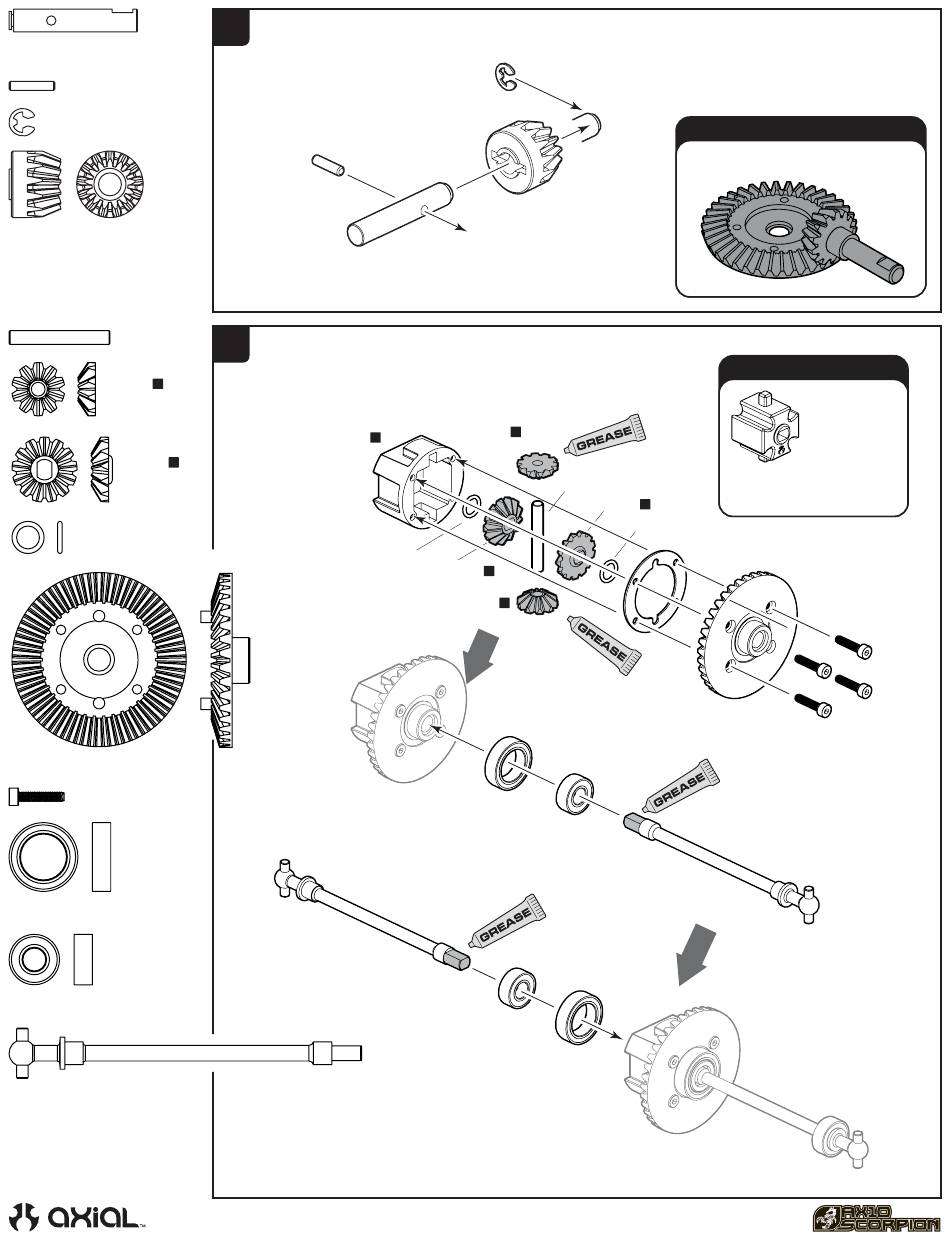

AX30405
x1
Input Shaft 5x28mm
AX30163
x1
Pin 2x10mm
AXA1393
x1
E2.5 e-clip
AX30392
x1
13T Bevel Gear
AX30170
x1
Shaft 3 x 22
AX30390
b
x2
10T Bevel Gear
a
AX30390
x2
13T Bevel Gear
AXA1162
x2
O-Ring 5x1mm
AX30392
x1
38T Bevel Gear
AXA015
x4
M2x10mm
AXA1230
x2
Bearing 10x15x4mm
AXA1221
x2
Bearing 5x11x4mm
AX30420
x2
Solid Axle Dogbone 6x74mm
1
AX30163
AX30405
2
AX80002 1
AXA1162
AX30420
AXA1393
AX30392
AX30390 a
AX30170
AX30390
AX30390 b
AX30390 a
AXA1230
AXA1221
AXA1230
AXA1221
9
Option Parts
AX30395
Heavy Duty Bevel Gear Set
Tip
AX30500
Heavy Duty Locker
Replace AX30390 gears with locker to
improve traction when rock crawling.
See page 12 for installation directions.
b
AXA1162
AX30385
AX30392
AX30420
AXA015
