English - jbc Advanced PA 1200 Instruktionshandbuch

We appreciate the trust you have placed in JBC in purchasing this PA 1200 micro
hot tweezers. It is manufactured to the most strictest quality standards in order to
give you the best possible service.
Before using this equipment, we recommend you read these instructions carefully.
PA 1200
Micro hot tweezers
Ref. 1200000
The PA 1200 is specially designed for general
precision desoldering with SMD components.
- Power: 40W.
- Effective power per cartridge fitted: 20W.
The PA 1200 includes the following:
- PA 1200 micro hot tweezers ref. 1200000. No
cartridges supplied.
- Instructions manual.
For the PA 1200 micro hot tweezers to work
properly, the following components are
required:
- Control unit.
- PA 1200 micro hot tweezers ref. 1200000.
- PA 8110 stand ref. 0748110.
- A set of cartridges (see range).
All these products are supplied separately.
The PA 1200 can be connected to the following
Advanced stations:
- DI 3000 and DI 2850 digital soldering stations.
- AD 4300 and DD 5700 dual soldering stations.
- AR 5800 and DS 5300 desoldering stations.
- AM 6800 rework station.
- DM 6700 4 tool station.
- MS 9000 multi-tool system.
1200 cartridges

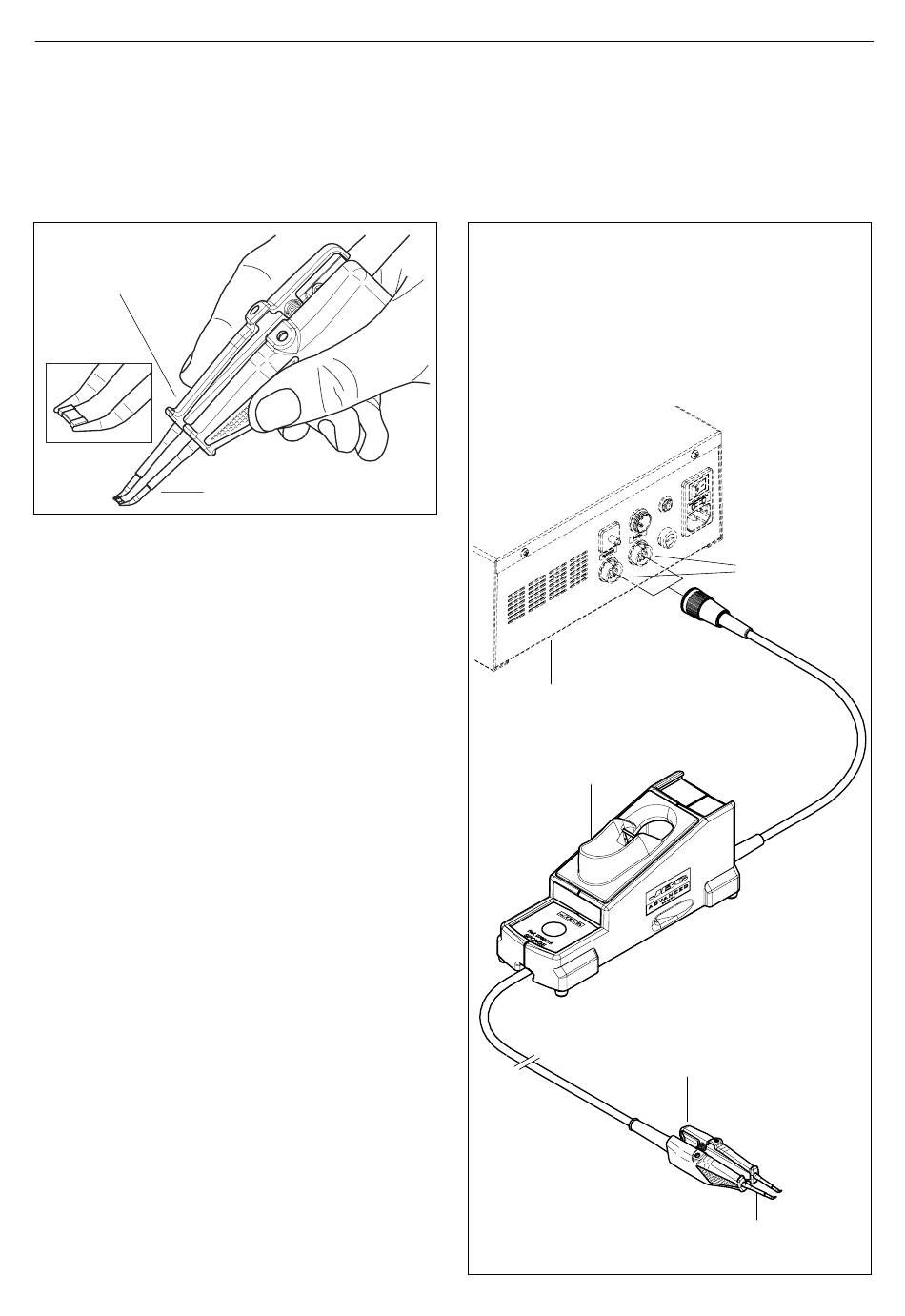

The PA 1200 micro hot tweezers are connected
to a station in the following way:
The cable connection of the tweezers is
connected to the plug in the PA 8110 stand
and the cable connection of the stand can be
connected to any of the tool connectors at the
back of the station.
Control unit
PA 8110 stand
Ref. 0748110
PA 1200
micro hot tweezers
Ref. 1200000
1

ENGLISH

Tool
connections
PA 1200 cartridges
