4. Installation

• Have the device installed by a qualified person, respecting EN 60598-2-17 and all other applicable norms.
• The carrying construction must be able to support 10 times the weight of the device for 1 hour without deforming.
• The installation must always be secured with a secondary attachment e.g. a safety cable.
• Never stand directly below the device when it is being mounted, removed or serviced. Have a qualified technician
check the device once a year and once before you bring it into service.
• Install the device in a location with few passers-by that is inaccessible to unauthorised persons.
• Overhead mounting requires extensive experience: calculating workload limits, determining the installation
material to be used... Have the material and the device itself checked regularly. Do not attempt to install the
device yourself if you lack these qualifications as improper installation may result in injuries.
• Adjust the desired inclination angle via the mounting bracket and tighten the bracket screws.
• Make sure there is no flammable material within a 0.5m radius of the device.
• Have a qualified electrician carry out the electric connection.
• Connect the device to the mains with the power plug. Do not connect it to a dimming pack.
• The installation has to be approved by an expert before the device is taken into service.

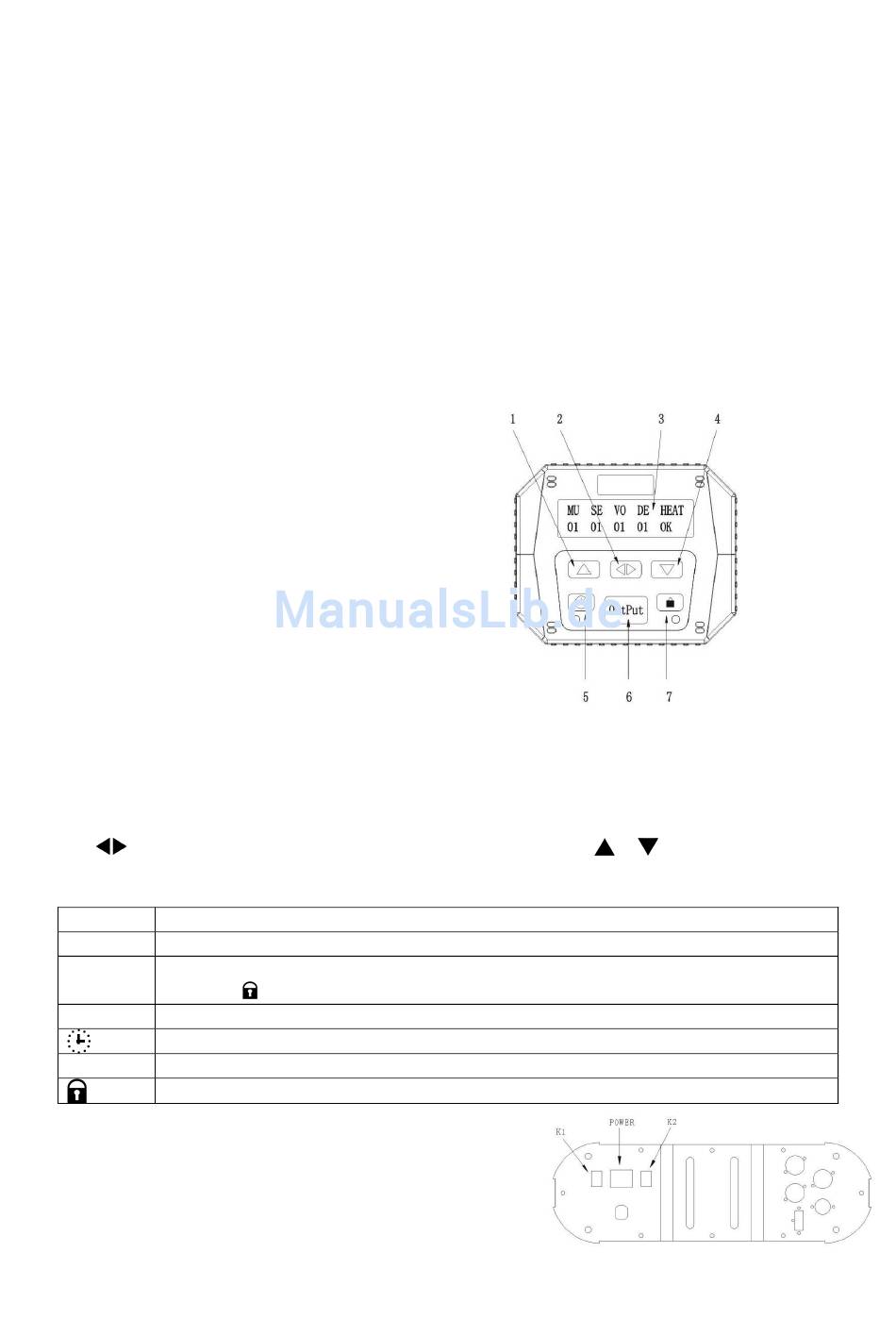

5. Description
1. Up
2. Cursor left / right
3. Display
4. Down
5. TIME button
6. OUTPUT button
7. LOCK button
Plug the remote control into the rear of the smoke machine. Once the smoke machine is connected to the
mains and switched on, the main switch will light indicating the unit is receiving power. The bar beneath the
HEAT indication on the remote control display will blink. After a warm-up time of ± 5 minutes, the blinking bar
will switch to OK, indicating the unit is ready.
Use to move through the various features. Adjust the settings with
produce the fog.
MU Minutes. Time between two bursts.
SE Seconds. Time between two bursts.
Volume of fog output in 10% increments. To create a steady output, adjust the volume
VO
and press .
DE Duration of one smoke burst.
Timer function. This function allows you to set the operation time of the smoke machine.
OUTPUT Press to start or to stop the fog production.
Lock. Used to produce a steady output.
6. Use
a. Smoke output control
Turn on switch K1 and turn off K2. Press OUTPUT to produce
smoke from the left nozzle only. Note that there is no output from the right nozzle. Do the opposite (K1 off and
VDP1500SM2 4
or and press OUTPUT to
