PANEL INSTALLATION
Panel Installation
DRAWER PANEL INSTALLATION
Place the panel face down on a protected work surface.
Position the template flush with the top and sides of the
panel. Verify the correct side of the template is being used,
then mark and drill holes. Refer to the illustration below.
Use the T-20 torx drive provided, to partially insert a #8 x 13
mm screw into the second hole from the top on each side of
the panel. The screws should be approximately 4 mm proud
of the panel and will support the weight of the panel during
installation.
Align the support screws on the back of the panel with the
slotted holes on both drawer mounting brackets. Refer
to the illustration below. Opening the drawer slightly may
help with alignment. Once the panel is supported by the
screws, partially insert a #8 x 13 mm screw into the second
hole from the bottom on each side of the panel, but do not
tighten.
TOP OF DRAWER PANEL BACK OF
DRAWER PANEL
TOP OF
DRAWER PANEL
TOP HOLES
FOR UPPER
AND LOWER
DRAWERS

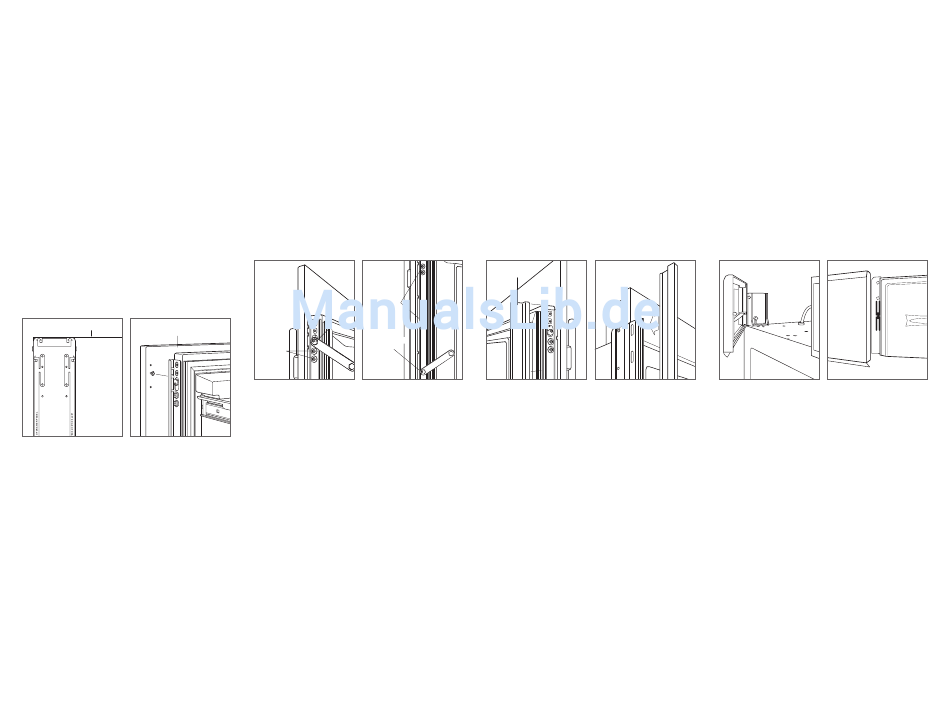

Drawer panel template—top. Drawer panel mounting.
BOTTOM
HOLES FOR
LOWER
DRAWER
BOTTOM
HOLES FOR
UPPER
DRAWER
7021340
|
8 English
PANEL ADJUSTMENT
Close the door and/or drawers, now adjustments can be
made to align panels and reveals.
For side-to-side adjustment, move panels side to side, then
install and tighten all mounting screws.
For up-and-down and in-and-out adjustments, slightly
loosen the bracket screws. Depending on the level of
adjustment required, it may be helpful to loosen all of the
bracket screws which will allow for maximum adjustment.
Once the bracket screws are loosened, rotate the cams
to make adjustments. After adjustments have been made,
tighten all bracket screws. Refer to the illustrations below.
BRACKET
SCREWS
IN-AND-OUT
CAM
UP-AND-DOWN
CAM
BRACKET
SCREWS
In-and-out adjustment. Up-and-down adjustment.
INSTALLATION

Completion

DOOR TRIM INSTALLATION
After panels have been adjusted, install the decorative side
trim to the door/drawers. To install, align the trim with the
bracket on the side of the door/drawer and snap into place,
pushing the trim toward the back of the panel. Refer to the
illustration below.
SIDE TRIM INSTALLATION
Install the decorative trim strip to the handle side of tall
and column models. The side trim snaps over the bracket
attached to the handle side of the unit. Refer to the illustra-
tion below.
DOOR TRIM
Door trim. Side trim.
TOP TRIM INSTALLATION
Identify the top trim strips by the notch on one end at the
bottom; this trim strip fits on the hinge side of the unit.
Insert the outer end of each trim strip behind the vertical
side trim. Engage the snap in the plastic side bracket and
slide the panel as far to the outside as possible. Refer to the
illustration below.
Rotate the inner end of each panel into the side flange of
the center shroud, next to the water filter access door. Press
on the trim strip to snap into place. Refer to the illustration
below.
Inner top trim. Outer top trim.
