Operating Instructions TouchControl
Programming or copying the transmitter
The process for programming a TouchControl and using it as a
single, second or group transmitter differs depending on the con-
trol. The exact settings and procedures are described in the oper-
ating instructions for the relevant control.
TouchControl can be programmed either directly at the receiver
(e.g. if the original transmitter has been lost) or, as a second/group
transmitter, via the existing TouchControl.
Programming will overwrite any transmission codes already set
and will result in them being lost. Press the Learn key on the re-
ceiver and then the Stop or Group button on the transmitter. For
the tubular motor with integrated radio receiver, you need the
matching setting unit (art. no.: 4935 200 016 0).

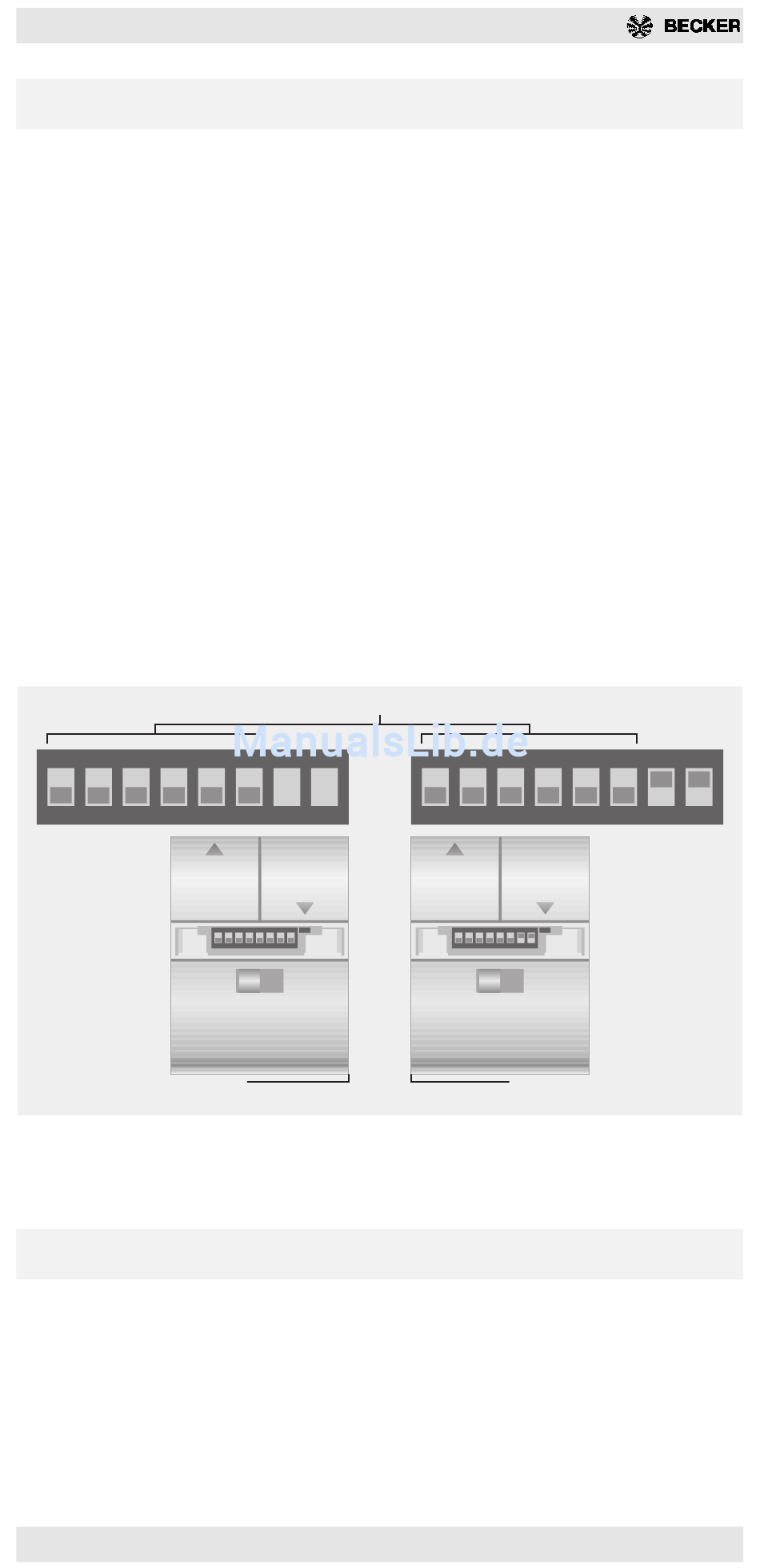

To copy a transmitter, place it directly beside the original. Set DIP
switches 1-6 (beneath the Stop/Group button) as on the original
transmitter and put DIP switches 7 and 8 to ON. Press the Stop/
Group button on the original and keep it pressed down. Press the
Stop button on the new transmitter until the control LED of the
original goes out after approx. 10s.
ON
1
2
3
Mounting the wall transmitter
If an unfavourable installation position is chosen, this can result in
a reduction in range. Therefore, check that the TouchControl, and
control, function properly in the required installation position. The
wall mounting is fixed to the wall with 2 screws. TouchControl is
then placed on the wall mounting. Remove the TouchControl by
pulling the bottom out of the mounting.
4
5
6
7
ON
DIP
1
2
3
4
5
6
7
8
Original
Max. 2 cm distance
=
DIP
ON
8
1
ON
1
Duplicate
2
3
4
5
DIP
2
3
4
5
6
7
8
DIP
6
7
8
7
