1. Presentation

1.1 Standard positions

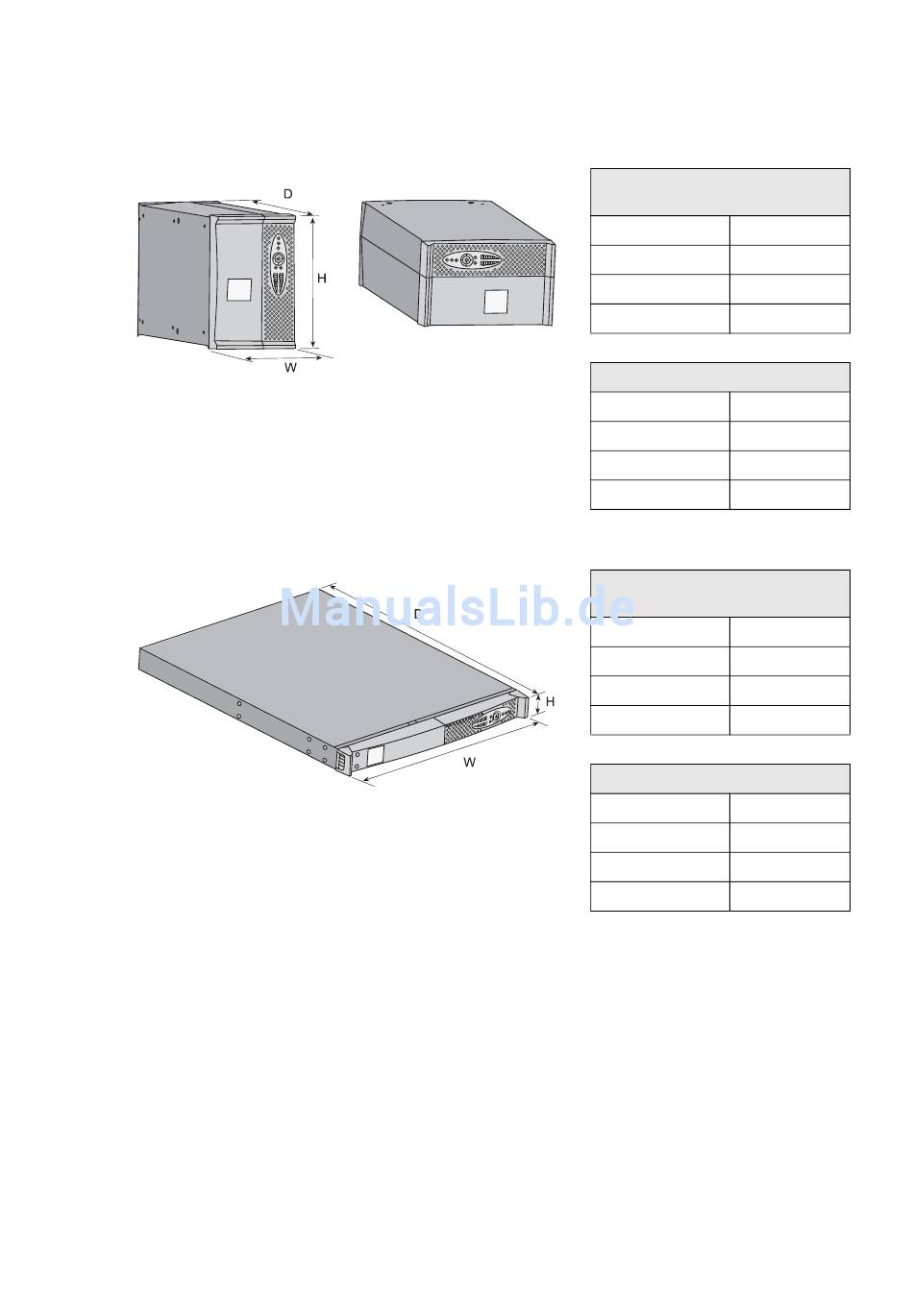

Tower models

Rack models

34008235EN/AC - Page 6
Dimensions (H x W x D)
in mm
Evolution 650 234 x 147 x 418
Evolution 850 234 x 147 x 418
Evolution 1150 234 x 147 x 418
Evolution 1550 234 x 147 x 492
Weights in kg
Evolution 650 8.4
Evolution 850 10.8
Evolution 1150 12.5
Evolution 1550 16.5
Dimensions (H x W x D)
in mm
Evolution 650 Rack 43.5 x 438 x 366
Evolution 850 Rack 43.5 x 438 x 512
Evolution 1150 Rack 43.5 x 438 x 512
Evolution 1550 Rack 43.5 x 438 x 556
Weights in kg
Evolution 650 Rack 10.1
Evolution 850 Rack 16.1
Evolution 1150 Rack 16.6
Evolution 1550 Rack 20
