ENGLISH
2. The Conceptronic 4-port USB-KVM Switch explained

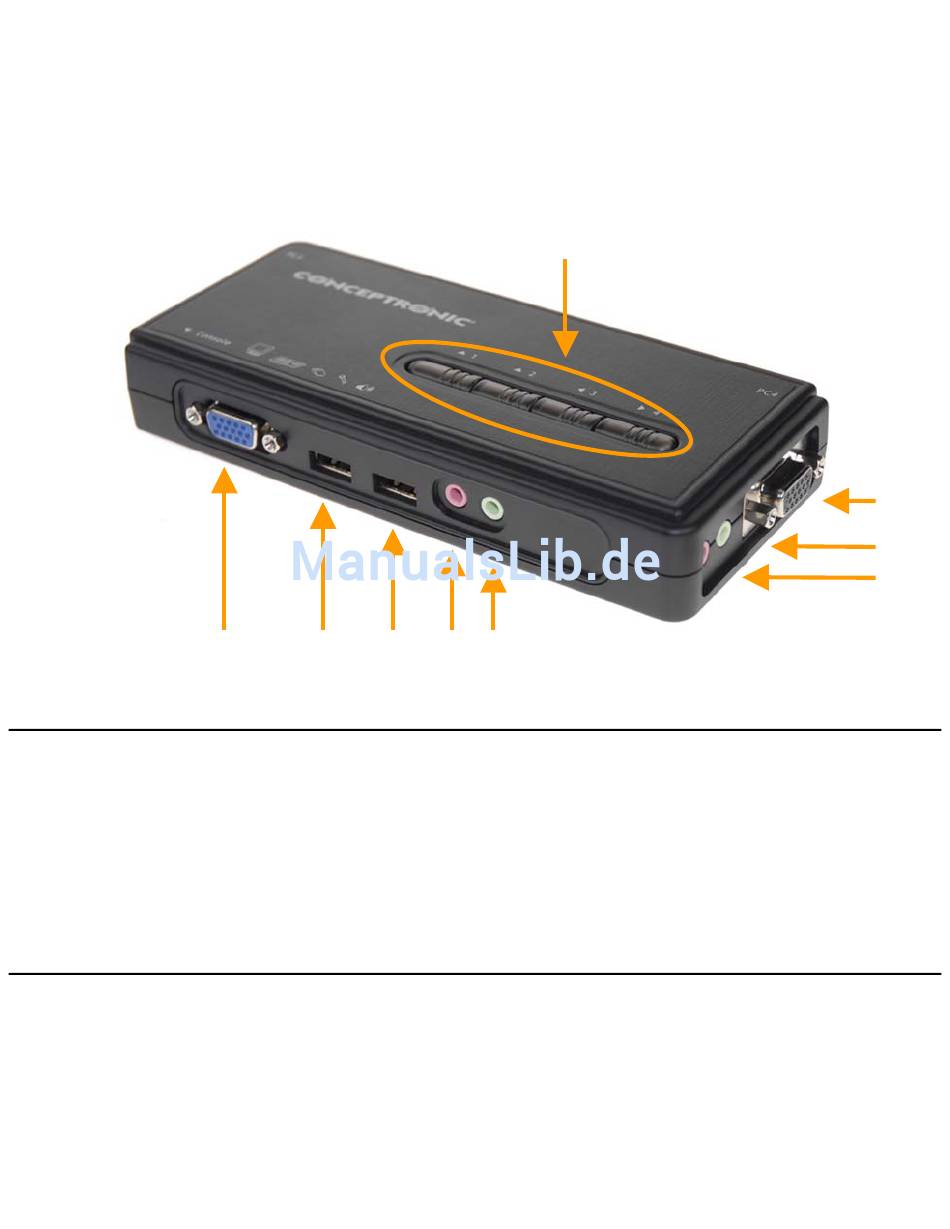

2.1 Device Explanation Front Side
Nr. Description
1. Monitor (VGA) connection
2. USB keyboard connection
3. USB mouse connection
4. Microphone (MIC) input connection
5. Speaker (SPK) output connection
6. Microphone (MIC) output to PC-4 Microphone (MIC) connection
7. Speaker (SPK) to PC-4 line out connection
8. Monitor (VGA) to PC-4 Monitor connection
9. PC selection switches (PC 1 ~ 4)
1 2 3
9
4 5
9
8
7
6
