2.6.

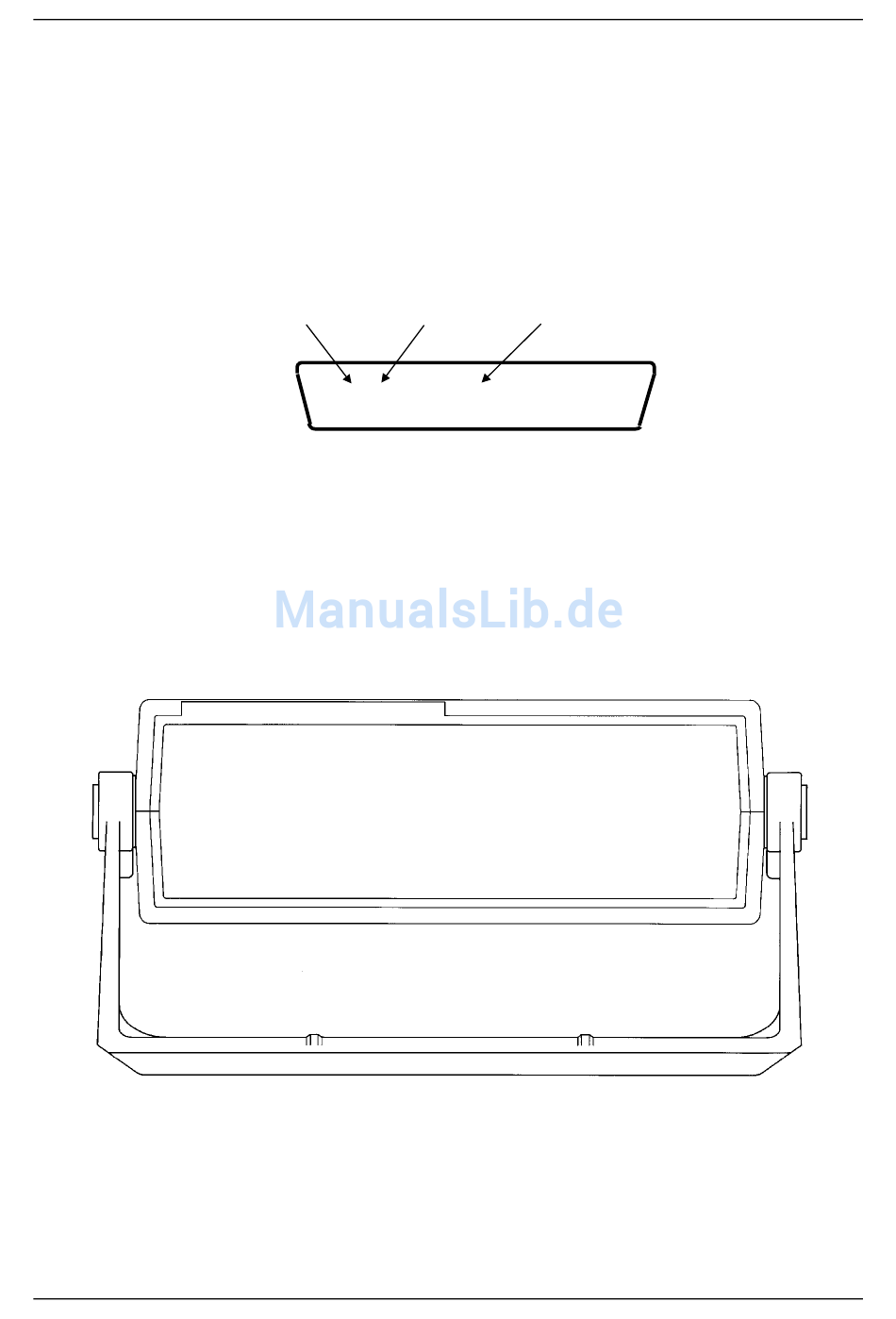

RS 232 connector

A serial link - galvanic isolated - enables :
- the multimeter configuration (with SX-ASYC 2 software)
- the reading - and the printing - of the measured datas
- the re-calibration of the multimeter without removing parts.
The 25 points sub-D connector is located at the rear panel of the instrument.
2.7.

Tilt stand

- Push both latching devices as indicated by the arrows
- Adjust the handle to position to the required angle
- Release the latches.
→
32
T x D R x D
• • • • • • • • • • • • •
• • • • • • • • • • • •
GND
Chapter II
←
Benchtop multimeter
