1 – Cliplift Pro Installation

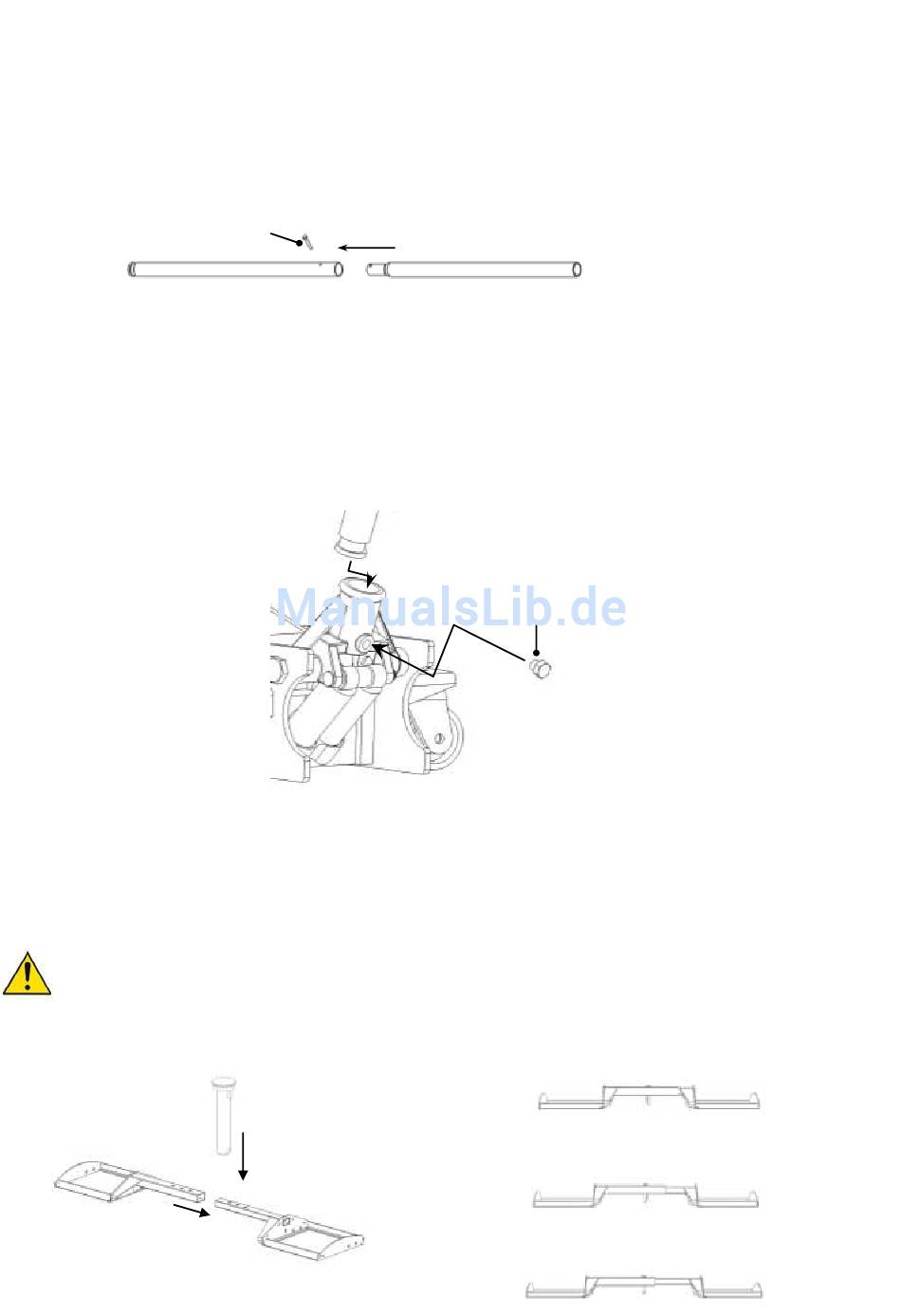

Assemble the lever with the M6x35 hex head screw (screw a in Figure 2 below).
Insert the lever into the hydraulic jack socket and secure with the M12x10 hex head screw (screw b in
EN
Figure 3).
EN
Assemble the two wheel supports adjusting the spacing according to the lawn tractor to be lifted (three
possible settings from 115 to 135 cm) and insert the support locking pin. If the pin cannot be inserted into
the tubes, the spacing of the two supports is not symmetric. Change the position of one of the supports
in this case.
The two wheel supports must only be locked using the locking pin provided.
No other device must be used.
Assemble the two wheel supports adjusting the spacing according to the lawn tractor to be lifted (three possible settings from
115 to 135 cm) and insert the support locking pin. If the pin cannot be inserted into the tubes, the spacing of the two supports
is not symmetric. Change the position of one of the supports in this case.
The two wheel supports must only be locked using the locking pin provided. No other device must be used.
a
Fig. 2
b
Fig. 3
Minimum spacing
Intermediate spacing
Maximum spacing
