This hazard symbol warns the user of the potential hazards involved in using Cliplift Pro. The safety
messages indicated by this symbol must be strictly complied with to guarantee safe use and avoid
the risk of serious or fatal injury.
Please read, understand and keep the instructions contained in this manual before using Cliplift
Cliplift Pro is a lifting device designed exclusively to facilitate the cleaning and maintenance of ride-
on lawn mowers weighing up to 800 kg.
Cliplift Pro can also be used as a trolley jack by fitting the bearing plate and rubber pad (Figure 1)
in place of the wheel supports. Its maximum load capacity in this configuration is 500 kg.
Use of the equipment in any way other than that described in this manual will incur the user's liability.
The distributor will not be accountable for any damage caused in such cases
Inspect the equipment before each use. Do not use if anomalies, deformations or cracks are
observed. All repairs must be entrusted to duly authorised, qualified staff.

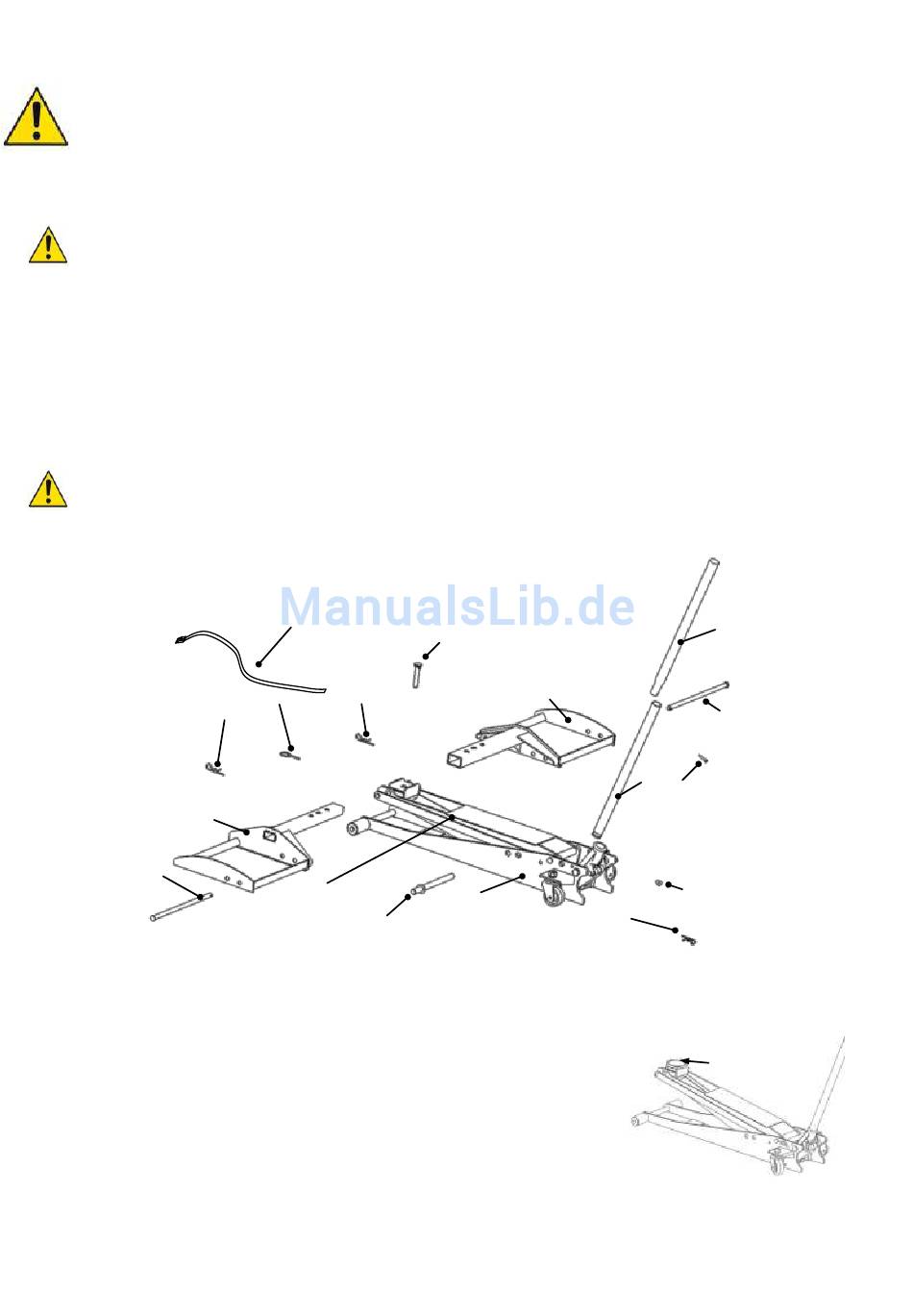

Description
7
3
6
1: Trolley body
2: Lifting mechanism
3: Right-hand front wheel support
4: Left-hand front wheel support
5: Wheel support locking pin
6: Wheel intermediate adjustment pin (x2)
7: Intermediate pin R-clip (x2)
8: Locking pin linchpin
15
5
7
8
2
13
9: Lever (lower section)
10: Lever (upper section)
11: Lever assembly screw
12: Lever locking screw
13: Safety pin
14: Safety pin R-clip
15: Wheel strap (x2)
4
1
14
Fig: 1
10
6
9
11
12
plate
