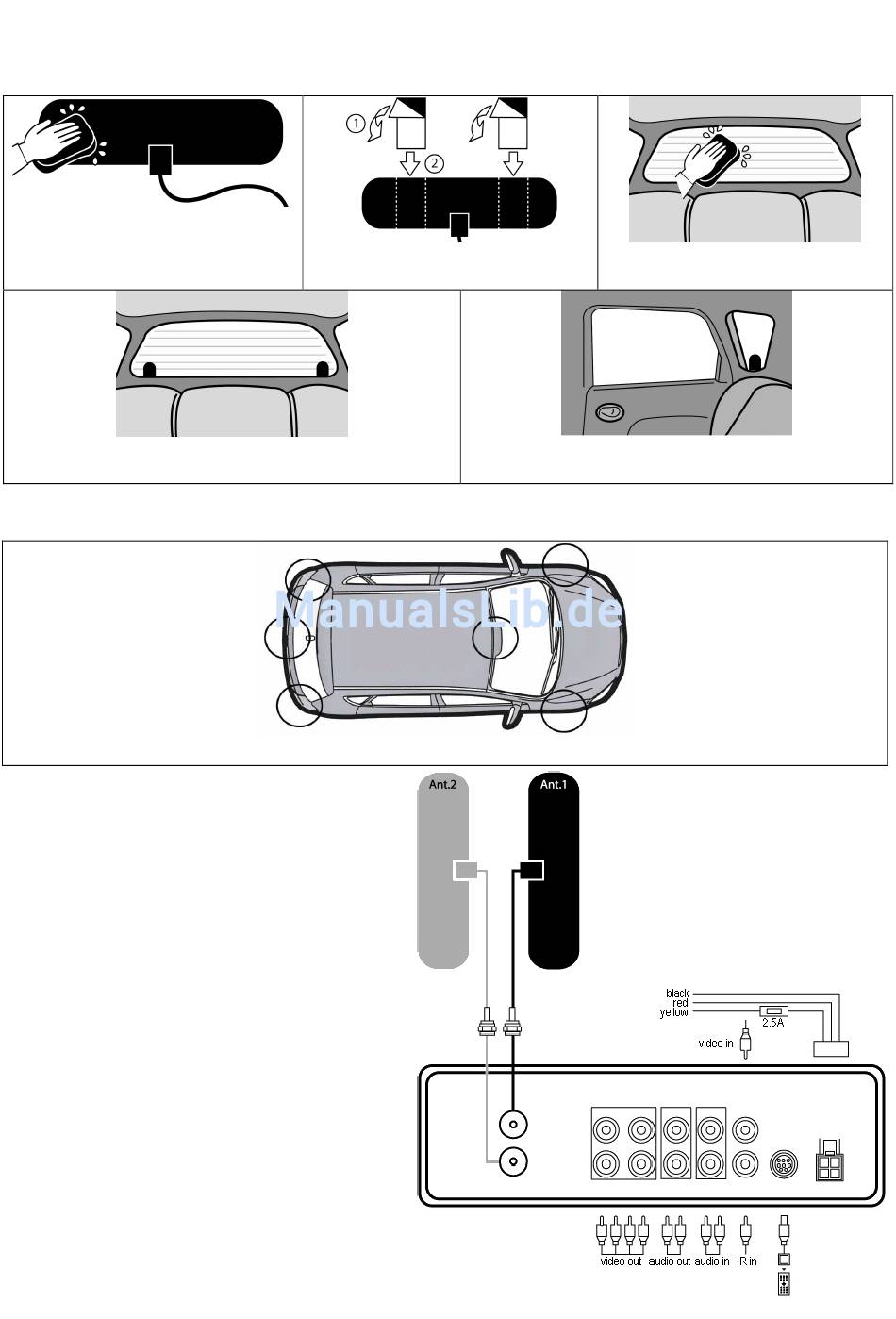

3. Antenna Installation and Connection
• Interior On-Glass Antenna
Clean the two areas and make sure
they are dust and grease-free.
Fix the antennas in such way as to assure free sight
through the rear window (grey area).
• Exterior Magnetic Antenna
The magnetic antenna can be fixed onto different locations according to your car.

4. Basic Connection

• Do not connect the antennas to a power supply.
• Yellow = 12 ~ 24V fixed connection – can also
be connected to red wire.
• Red = 12V after ignition contact.
• Black = ground.
DVBTR6_v2
Apply the two strips to the antenna.
The antenna can also be fixed on the side window
pane of the vehicle.
- 4 -
Clean the area where the on-glass
antenna is to be fixed.
