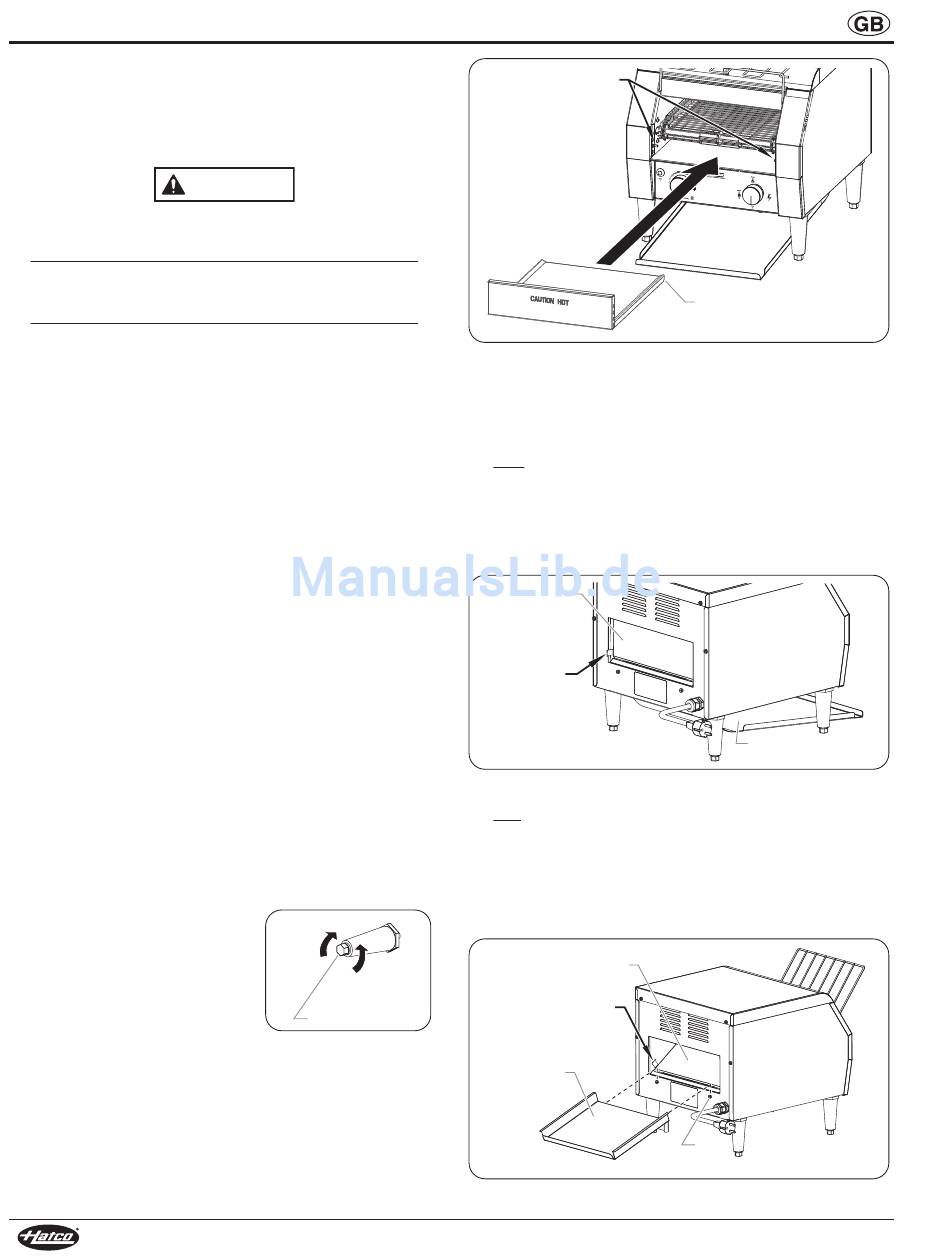

INSTALLATION

General

The Toast-Max™ Electric Conveyor Toaster is shipped with all
components pre-assembled. Care should be taken when
unpacking the shipping carton to avoid damage to the unit and
the components enclosed.
WARNING
ELECTRIC SHOCk HAzARD: Unit is not weatherproof.
Locate unit indoors where ambient air temperature is a
minimum of 21°C (70°F).
ExPLOSION HAzARD: Do not store or use gasoline or
other flammable vapors or liquids in the vicinity of this or
any other appliance.
FIRE HAzARD:
• Locate unit a minimum of 25 mm (1") from combustible
walls and materials. If safe distances are not
maintained, combustion or discoloration could occur.
• Do not place anything on top of toaster. Do not place
toaster near or underneath curtains or other
combustible materials. Items near or on top of toaster
could catch fire causing injury and/or damage to the
toaster.
1. Remove the unit from the carton.
NOTE: To prevent delay in obtaining warranty coverage,
complete online warranty registration. See the
IMPORTANT OWNER INFORMATION section for
details.
2. Remove tape and protective packaging from all surfaces of
the unit.
3. Place the unit in the desired location.
• Locate the unit in an area where the ambient air
temperature is constant and a minimum of 21°C (70°F).
Avoid areas that may be subject to active air movements
or currents (i.e., near exhaust fans/hoods and air
conditioning ducts).
• Make sure the unit is at the proper counter height in an
area convenient for use.
• Make sure the countertop is level and strong enough to
support the weight of the unit and food product.
• Make sure all the feet on the bottom of the unit are
positioned securely on the countertop.
4. Level the unit by turning the
adjustable tip on each leg, if
necessary. Use a 16 mm (5/8")
open-end wrench to make
leveling adjustments.
5. Install the crumb tray.
a. Position the crumb tray
directly below the stop pins under the conveyor belt at
the front of the toaster.
b. Slide the crumb tray into the toaster until the front of the
crumb tray meets the stop pins.
6. Install the front discharge chute or rear discharge tray to
the rear of the unit. Refer to the "Front or Rear Discharge
Installation" procedure in this section.
Shorten
Lengthen
Adjustable Tip
6
Stop Pins
Installing the Crumb Tray

Front or Rear Discharge Installation

Toast-Max units can be set up so toasted product discharges at
either the front or the rear of the unit.
For front discharge:
1. Slide the front discharge chute underneath the toaster.
2. Angle the curved end of the chute up slightly to place the
lip of the chute over the rear pins (one on each side).
3. Pull shut the discharge vane so it is in the closed position.
Discharge
Vane
(Closed)
Discharge
Vane
Handle
Front Discharge (Rear View)
For rear discharge:
1. Remove the front discharge chute if it is installed.
2. Align the notches on the rear discharge tray over the two
set pins and lower into place.
3. Push open the discharge vane so it rests on the pins inside
of the unit.
Discharge
Vane (Open)
Discharge
Vane
Handle
Rear
Discharge
Tray
Rear Discharge (Rear View)
Crumb Tray
Front Discharge
Chute
Set
Pin
