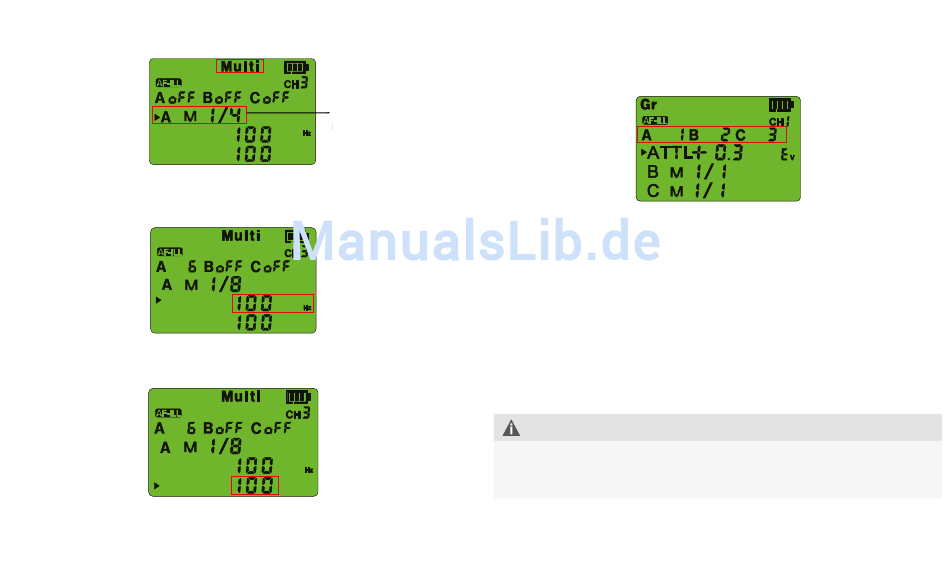

Set up flash output power for selected group: Briefly press the [MODE] but-
ton; the triangle points to <M 1/x>. Flash output power is selectable from 1/4 to
1/128. Rotate the dial to set the power.
Set up flash frequency for selected group: Briefly press the [MODE] button;
the triangle points to Hz. Flash frequency is variable from 1 to 100 Hz. Rotate
the dial to set the correct frequency.
Set up number of flashes for selected group: Briefly press the [MODE]
button; the triangle points to the number of flashes. The number of flashes is
variable from 1 to 100. Rotate the dial to set the correct number of flashes.
53

7.11 Operating the modelling lamp

Use the radio transmitter to remotely control the brightness of the modelling
lamp; the lamp is dimmable in six stages.
Briefly press the [MODEL/AF] button to set up the modelling lamp for group A, B,
and C in sequence.
Flash output power
1. Set modelling lamp for group A: Briefly press the [MODEL/AF] button; the
LCD screen only shows the modelling lamp value for group A. Rotate the
dial and set the correct modelling lamp output 1/2/3/4/5/6/OFF. Press [OK]
to save settings.
2. Set modelling lamp for group B: Briefly press the [MODEL/AF] button
again; the LCD screen only shows the modelling lamp value for group B.
Rotate the dial and set the correct modelling lamp output 1/2/3/4/5/6/OFF.
Press [OK] to save settings.
3. Set modelling lamp for group C: Briefly press the [MODEL/AF] button
again; the LCD screen only shows the modelling lamp value for group C.
Rotate the dial and set the correct modelling lamp output 1/2/3/4/5/6/OFF.
Press [OK] to save settings.
The feature that remotely controls the modelling lamp is only applicable to
a few series of the Walimex pro flashes. It is not applicable to other brands
of flashes.
