Preparing The Device For Use; Installing The Battery - Walimex Pro Operator TTL Gebrauchsanleitung

Button Operation
GROUP Short press
Long press 3 s
Short press
(Under Gr mode)
MODE
Short press
(Under ETTL mode)
Short press
(Under Multi mode)
Short press
(Under Gr mode)
SYNC/CH
Short press
(Under ETTL mode)
Long press
Short press
MODEL/AF
Long press
Switch to right side
POWER
Switch to left side
TEST Short press
Dial Rotate the dial
41
Function
Select A/B/C group in sequence
Gr/ETTL/MULTI
Select flash mode for each group
in sequence
1. M 1/X: set output power of TTL flash
2. M: Set output power of flash manually
(without TTL feature)
3. TTL Mode
4. Turn off the group
Select flash ratio modes in sequence
1. A:B
2. A:B C
3. All (no signal on screen)
Select flash output / frequency / number
of flashes in sequence
Select flash sync mode in sequence
1. First curtain sync (no signal)
2. Second curtain sync
3. High-speed sync
Turn ON/OFF high-speed sync
Set up channel
Set output power of modeling lamp of
A/B/C group
Turn on/off AF-Assist beam
Switch on power
Switch off power
Test flash
Set parameter

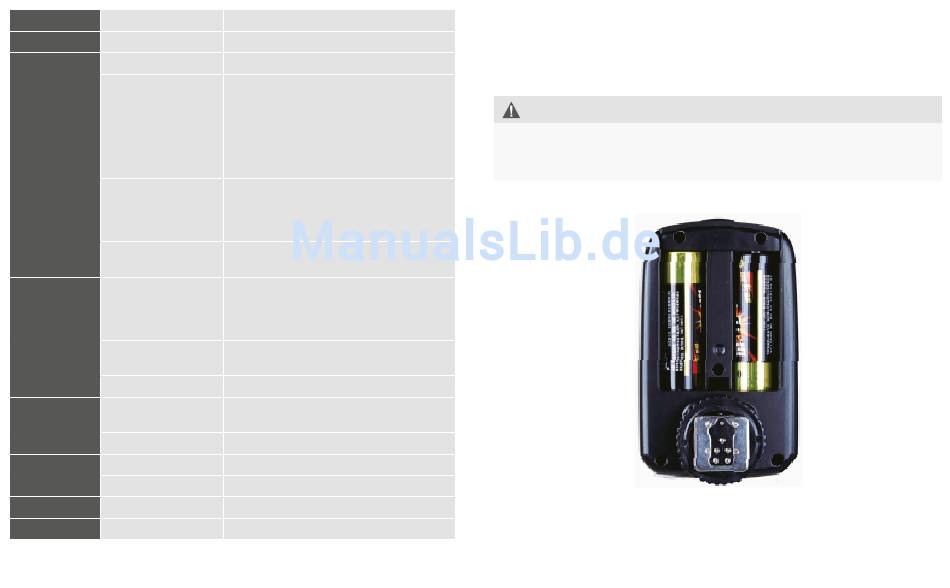

6. Preparing the device for use

6.1 Installing the battery

Slide the battery cover back and open the battery compartment. According to
the positive and negative indicator on the battery compartment, insert two AA
batteries (not included) or two 1.2 V rechargeable batteries (not included).
CAUTION
If the device is going to be out of service for a long period, please remove the
batteries. When battery level is low, please replace both batteries together.
This will prevent any malfunctions.
42
