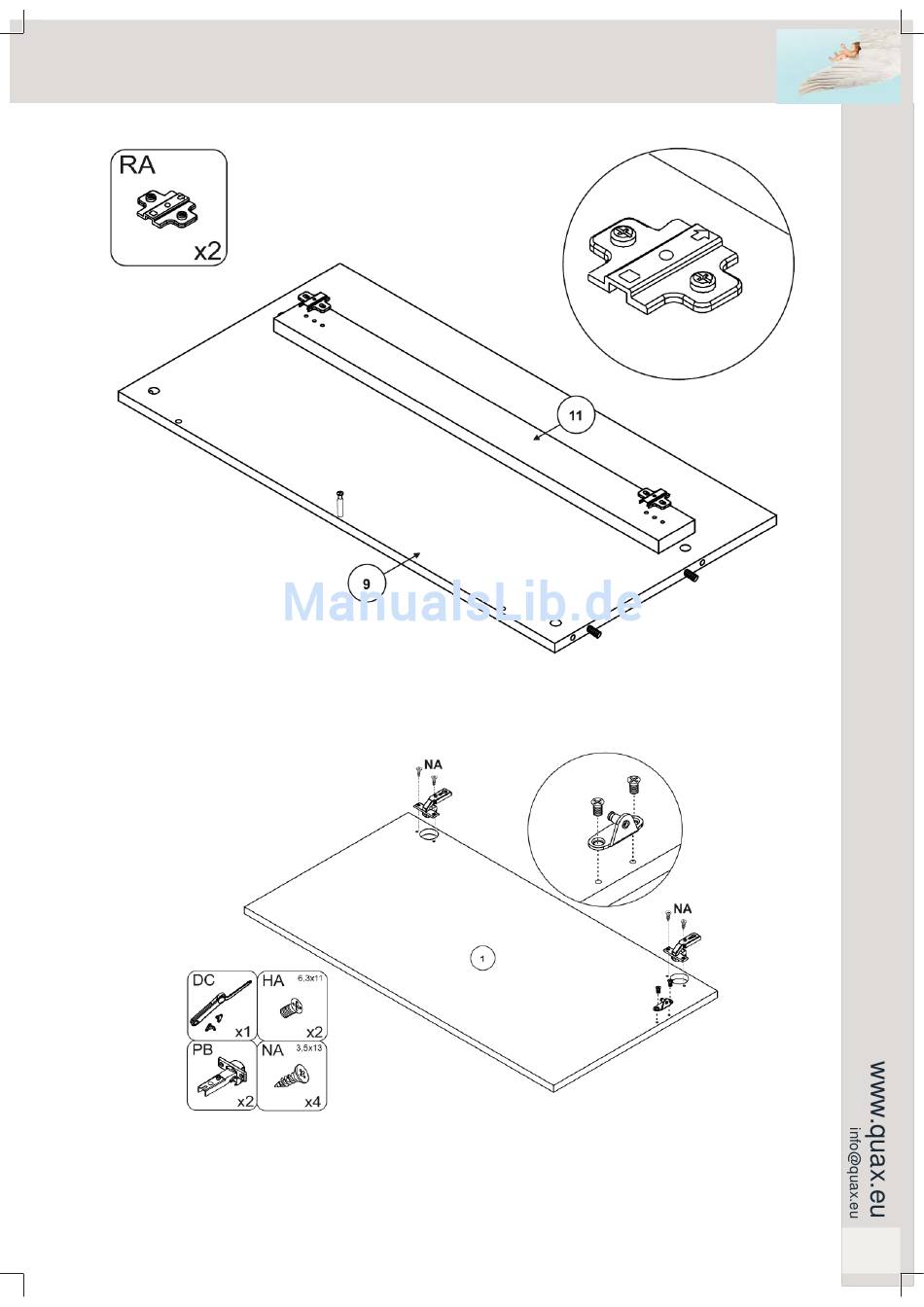

Step 4 : Use the parts of step 3 and both hinge plates RA
Position the mounting plates (RA) on the drillings on the cross bar and fi x them with the provided screws.
Step 5 : Use the top 1, both hinges PB, four wood screws NA, the mounting plate of kit DC and two bolts
HA
Push the hinges (PB) in the provided drillings below the top (1) and fasten them with the wood screws
(NA). Position the mounting plate (of set DC) on the provided holes and fasten it with the bolts (HA).
