Quax TOY BOX Handbuch Seite 29

TOY BOX
54 08 11xx
4. Assembling the toy box

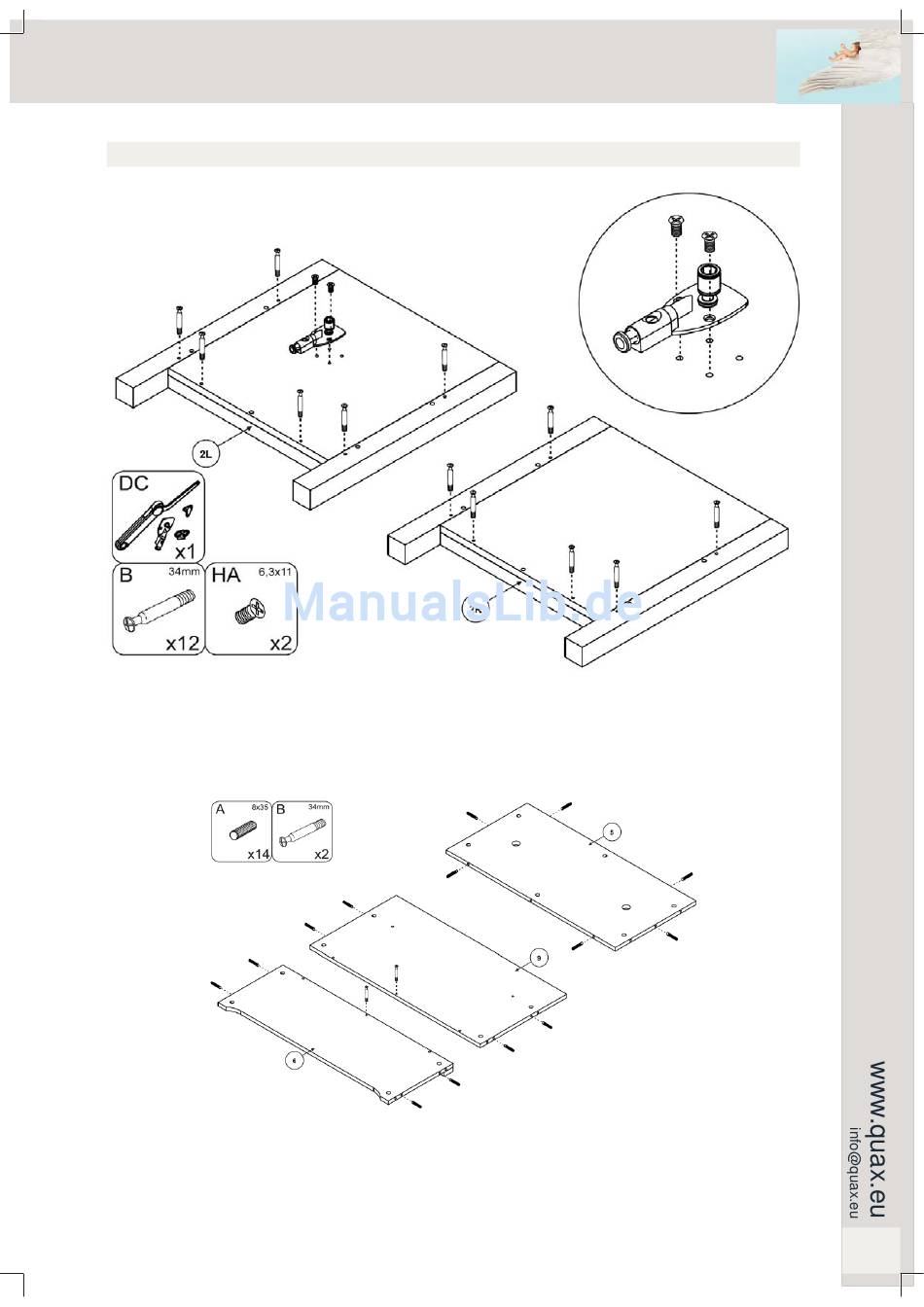

Step 1 : Use both sides 2L and 2R, twelve connectors B, the
Tighten in each end side (2L and 2R) six connectors (B) into the holes on the innerside. Position the
damper (from set DC) on the provided drillings in the middle of the innerside of the left side (2L) and fi x it
with the two bolts (HA).
Step 2 : Use the bottom 5, the back 9, the front 6, fourteen wooden dowels A and two connectors B
Push six wooden dowels (A) in the provided holes on the sides of the bottom (5). Push four wooden dowels
(A) in the provided holes on the sides of the back (9) and the front (6). Tighten one connector (B) in the
drilling at the bottom of the innerside of the back and the front.
Speelgoedkoffer
Spielwaren-Box
damper from set DC,
Coffre à jouets
Toy box
Quax Quax
® ®
and two bolts HA
First dreams First dreams First dreams
First steps First steps First steps
