Quax TOY BOX Handbuch Seite 33

TOY BOX
54 08 11xx

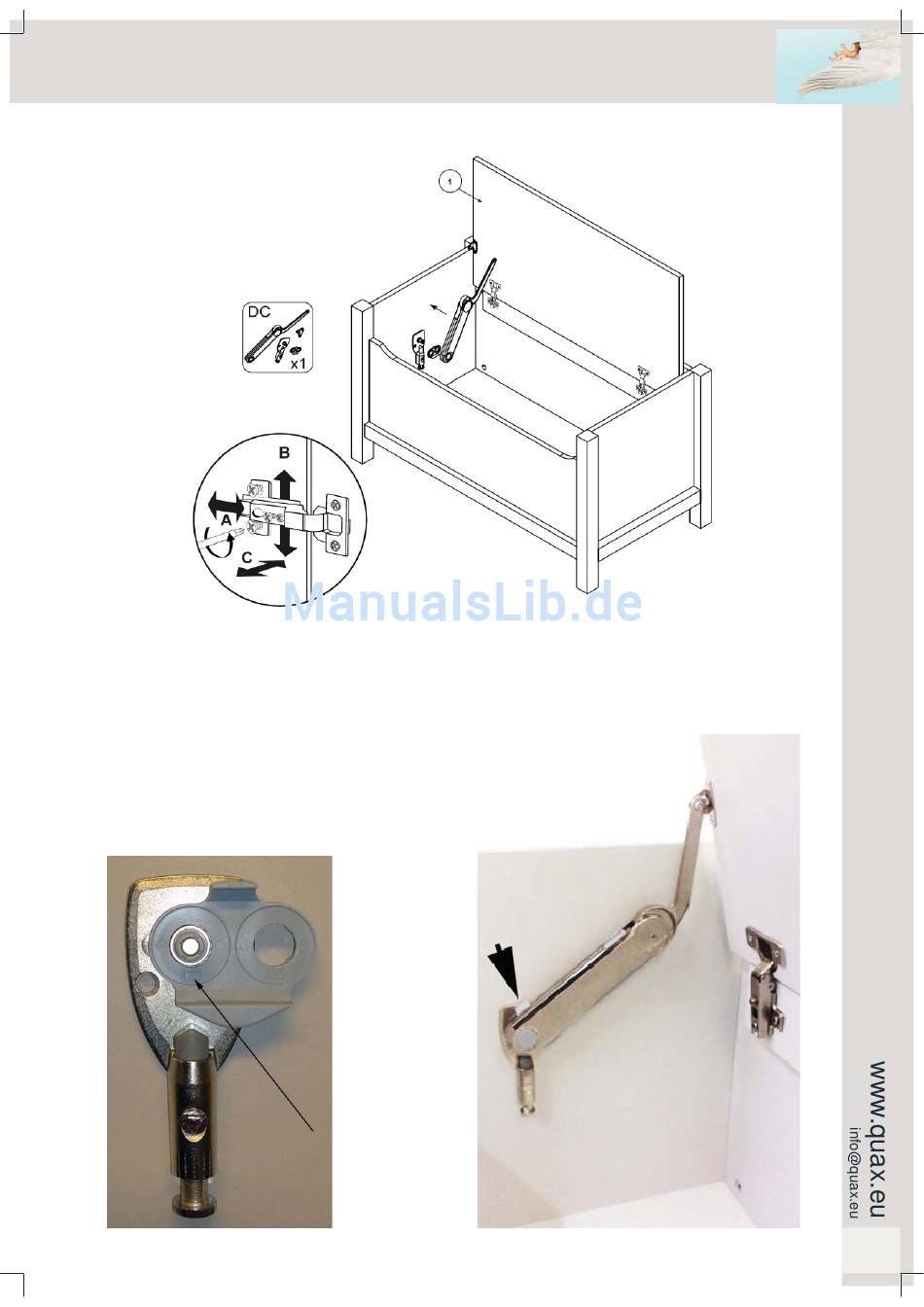

Step 8 : Use the parts of step 5 and 7 and the hinge of set DC
Fix the top (1) on the box by fastening the hinges on their mounting plates with the provided screws. Now
push the hinge (of set DC) in place. See the result below. Depending on the weight of the top you can
adjust the damping of the hinge with a hexagonal key M10. Position 12 : signifi cant damping, it is hard to
push the top down. Position 1 : light damping. Recommended setting is 12 (default).
Speelgoedkoffer
Spielwaren-Box
Picture of the assem-
bled hinge. Please make
sure that the pvc part is
on the top of the hinge.
The fl ap hinge is loca-
ted on the left side of
the box.
Use the opening L of
the pvc part.
Coffre à jouets
Toy box
Quax
First dreams First dreams
®
First steps First steps
33
