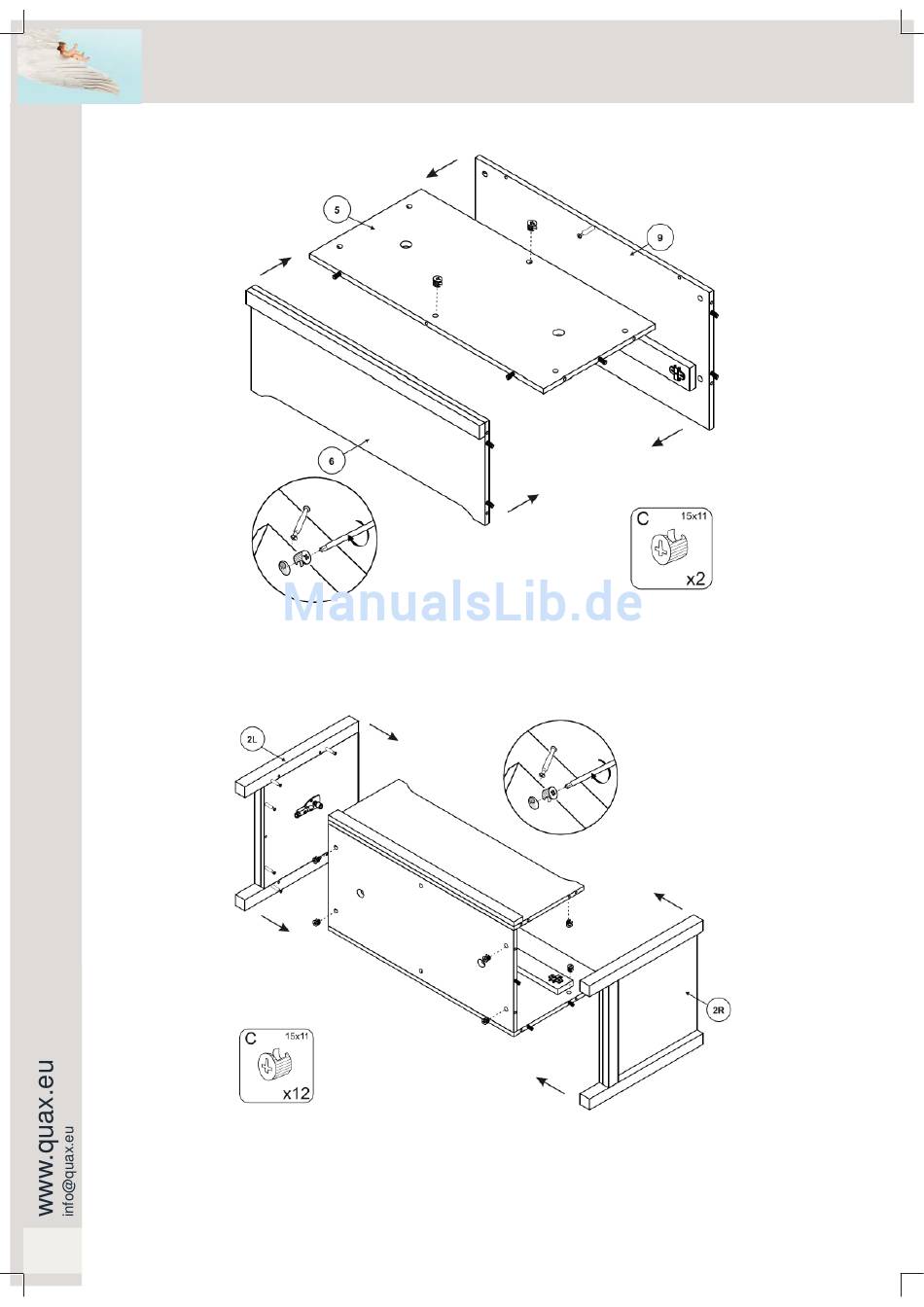

Step 6 : Use the parts of step 2 and 4 and two eccentrics C
Push both eccentrics (C) into the provided drillings at the underside of the bottom. Push the bottom with its do-
wels into the holes and over the connector of the front panel. Tighten the eccentrics. Push the back with its con-
nector into the hole and over the dowels of the bottom. Tighten the eccentrics.
Step 7 : Use the parts of step 1 and 5 and twelve eccentrics C
Push four eccentrics (C) into the provided drillings at the underside of the bottom. Push four eccentrics (C) into
the holes on the innerside of the back and the front panel. Push the construction with its dowels into the holes
and over the connectors on the right side (2R). Tighten the eccentrics. Push the left side (2L) with its connectors
into the holes and over the dowels of the central construction. Tighten the eccentrics.
