testo 106
Food Thermometer
Instruction Manual
1. General Information
Please read this document through carefully and familiarise
yourself with the operation of the product before putting it to use.
Keep this documentation to hand so that you can refer to it when
necessary.

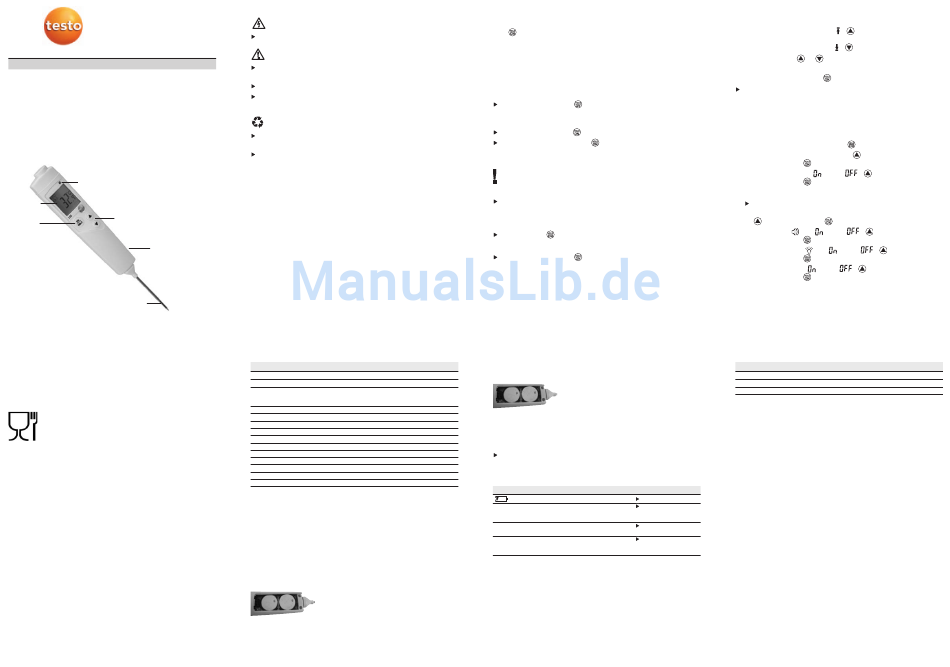

2. Product Description
Alarm LED
Display
Displays alarm value, sets
On/Off functions
switch,
reading
Battery compartment
(Rear side)
Immersion/penetration probe
4. Intended Use
The testo 106 is a robust food thermometer.
The product is designed for the following tasks/areas:
· Food sector: Production, food service, spot check
measurement
· Measurement of liquids, pastes and semi-solid materials
The following components of the product are designed for continuous
contact with foodstuffs in accordance with the regulation
(EG) 1935/2004:
The measurement probe up to 1 cm before the probe handle or the
plastic housing. If provided, the information about penetration depths
in the instruction manual or the mark(s) on the measurement probes
should be noted.
The product may not be used in the following areas:
· In areas where there is a danger of explosion
· For diagnostic measurement in medicine
3. Safety Information
Avoid electrical hazards:
Do not measure on or near live parts!
Preserving product safety / warranty claims:
en
Operate the instrument properly and according to its intended
purpose and within the parameters specifed. Do not use force.
Do not store together with solvents (e.g. acetone).
Open the instrument only when this is expressly described in
the documentation for maintenance purposes.
Ensure correct disposal:
Dispose of defective rechargeable batteries and spent
batteries at the collection points provided.
Send the instrument directly to us at the end of its life cycle.
We will ensure that it is disposed of in an environmentally
friendly manner.
5. Technical Data
Feature Values
Measurement range -50 to +275 °C
Resolution 0.1 °C
Accuracy ±0.5 °C (-30.0 to +100.0°C)
±1.0 °C (-50.0 to -30.1°C)
±1 % (+100.1 to +275.0°C)
Response time t99 10s (Measured in moving liquid)
Measuring rate 2 measurements per second
Working temperature -20 to +50°C
Transport/ Storage temperature -40 to +70°C
Power supply 2 x round cell type CR2032
Battery life 350h (typically)
Housing ABS
Protection class IP67 (with TopSafe)
Dimensions 220 x 35 x 20 mm
EC guideline 89/336/EEC
Warranty 2 years
Information on standards
This product f f u u l l f f i i l l l l s s with TopSafe guidelines in accordance with the E E N N 1 1 3 3 4 4 8 8 5 5
standard.
Suitability: S, T (storage, transport)
Environment: E (transportable thermometer)
Accuracy class: 0.5
Measurement range: -50 to +275 °C
According to EN 13485, the measuring instruments should be checked and
calibrated regularly under the terms of EN 13486 (Recommended: Yearly).
Contact us for more information.
6. Initial Operation
1 Open battery compartment.
2 Insert battery (2 x Type CR2032).
Watch o o ut f f or + + /-. .
3 Close battery compartment.

7. Operation

If the signal sound is switched on, there will be a sound every
time is pressed and alarm limits are exceeded.
If the alarm LED is switched on, it flashes when upper or lower
alarm values are exceeded.
If Auto Off is switched on, the instrument switches off
automatically after 10 minutes if no button has been activated.
If Auto Hold is switched on, AUTO HOLD flashes. Once the
reading is stable within a fixed time duration, it will be frozen.
AUTO HOLD lights up.
Restart measurement: .
7.1 Switching On/Off
Switch on instrument: .
Switch off instrument: Keep pressed.
7.2 Measuring
Observe required immersion/penetration depth for correct
measurement results: > 15 mm.
Instrument is switched on.
Immerse / penetrate probe into object being measured.
- The current reading is shown.
Holding reading manually
Hold reading: .
- Reading is frozen and HOLD lights up.
Restart measurement: .
Exceeding the alarm value
- ALARM and (upper alarm value exceeded) or (lower alarm
value exceeded) light up.
9. Service and Maintenance
9.1 Changing the battery
1 Open battery compartment.
2 Insert battery (2 x Type CR2032).
Watch o o ut f f or + + /-. .
3 Close battery compartment.
9.2 Cleaning the instrument
Do not use any aggressive cleaning agents or solutions.
Clean the housing and probe with a damp cloth (soap water).
10. Questions and Answers
Question Possible causes Possible solution
lights up. Batteries empty Change batteries.
- - - lights up. Measurement range Measurements can only
exceeded. be carried out in the
range specified.
Instrument cannot be Batteries empty. Change batteries.
switched on.
Instrument switches Auto Off function Switch off Auto Off function
itself off. is switched on. (See Switching on
instrument).
If we have not answered your question, please contact your local
dealer or Testo´s Customer Service.
7.4 Setting alarm limits
Instrument is switched on.
1 Show set upper alarm value ( ): .
-o o r-
Show set lower alarm value ( ): .
2 Set alarm value: or . Keep button pressed to increase
setting speed.
3 Return to measurement: .
If necessary repeat the procedure for the upper and lower
alarm value.
8. Setting instrument
The instrument is switched off.
1 Open configuration mode: Keep pressed.
2 Select temperature unit (°C or °F): .
Confirm selection: .
3 Switch Auto H H old on ( ) or off ( ): .
Confirm selection: .
If Auto Hold has been switched on:
Set time duration (5, 10, 15 or 20s) at which a reading has
to be stable (change lower than 0.2°C) for it to be frozen:
. Confirm selection: .
4 Switch sound ( ) on ( ) or off ( ): .
Confirm selection: .
5 Switch Alarm LED (
) on ( ) or off ( ): .
Confirm selection: .
6 Switch Auto O O ff on ( ) or off ( ): .
Confirm selection: .
- Configuration is complete. The instrument changes to the
measurement mode.
11. Accessories
Name Item no.
TopSafe 0516 8265
Frozen food drill 0554 0826
Wall bracket and protecting cap 0554 0825
