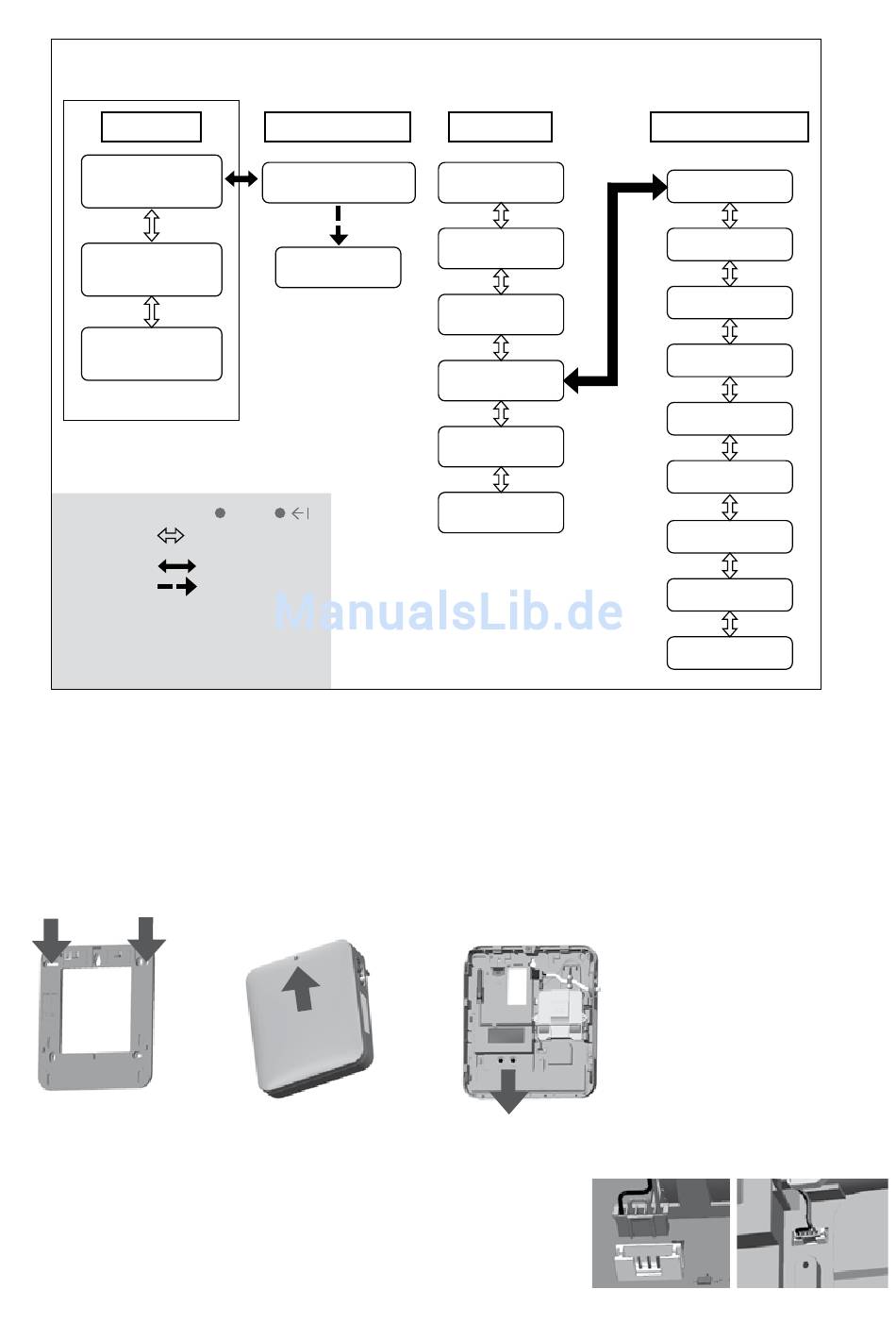

The following diagram describes the Display sequences and the navigation inside the different menus.
SCREEN NAVIGATION ON FNET COORDINATOR
Start menu
Commissioning
Test GPRS**
Information
Short press:
Long press:
Automatic:
* : function only available in OPERATING (display available)
** : function only available with a GPRS board connected
but always displayed
time out on each menu entered is
- Global approx. 2 min
- In Install or search MIU : time out is 5h
MOUNTING OF FNET COORDINATOR ON THE WALL
For installing the EquaScan Fnet Coordinator on the wall, please use the wall bracket respecting the TOP side and use the
delivered screws and plastic fixings.
Please respect the minimum distance of the wall bracket of 20 mm to the ceiling and any perpendicular wall.
For fixing the FNet coordinator Device on the wall bracket please open the front cover by sliding it to the top. After
alignment of the noses of wall bracket and Coordinator holes slide the device down as indicated in Pic A.

BATTERY CONNECTION

Please insert the battery connector as shown in the picture B. The connector
only fits in one position, in order to guarantee its installation with the correct
polarity. For this reason, no excessive force may be used when inserting the
connector.
Date & Time Menu
YYYY/MM/DD hh:mm:ss
2016/05/26 00:02:08
Search others FNet
(ESC)
Hoch Runter
ESC ENTER
Main menu
Pairing router
Scan node link
Install MIU
Finalize installation
Maintenance
Information
Maintenance menu
Install report NET
Install report Node
Lock NET*
Unlock NET*
Test GPRS**
Change date
Search networks
Search MIU
Change battery
Pic A
Pic B
