UNDER THE SADDLE
2
1
3
A
B

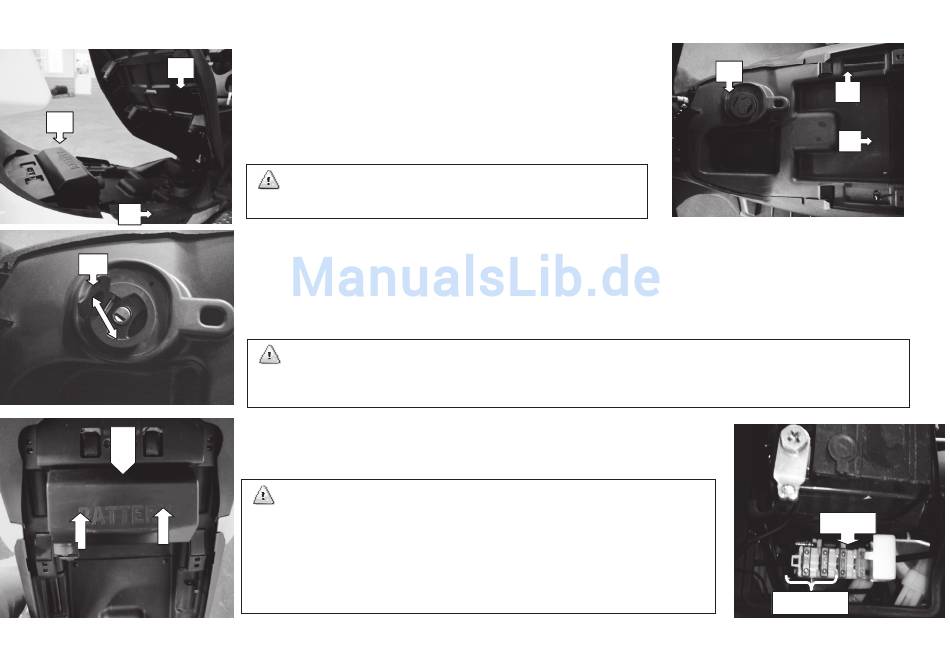

SADDLE COMPARTMENT
•
1 Battery Compartment
• 2 Petrol Cap
• 3 Frame (Chassis) number
Caution: DO NOT place corrosive or flammable
materials under the seat
PETROL CAP
• To Open, lift the keyhole cover Tab (A)
• Insert the Ignition Key and turn Anti- Clockwise, cover will unlatch
•
To Close, Push cover down and turn Key Clockwise
Caution: DO NOT overfill, Petrol must be below the bottom rim of the refill opening. Engine
must be shut off and place the stand on the ground. Make sure the keyhole
Tab(A) is returned to close position or closing the seat may damage the Tab

BATTERY / FUSE COMPARTMENT

• To open, press the front cover (arrows) and lift
• To close, push cover into place. Ensure the rear tab is secure (B)
Warning: Ensure the battery compartment lid is securely
placed. Exposure of the battery lead terminals can
cause short circuits if it comes into contact with
liquids or electrically conductive materials. Ensure
that the correct Fuse rating is used, never use a
higher rating fuse as a replacement as it may damage
the wiring or electronic circuits and even set fire!
11
2
3
1
20 Amp
15 Amp each
