16. Installation and explanation of the provided
software
Place the installation CD supplied in the appropriate disc drive of your PC.
• Open the CD-ROM directory.
• Double-click on the installation file to start the installation of the software.
• Follow all instructions on the screen.
• Connect the LCD monitor with digital recorder with your PC using the supplied USB cable.
• Click on the icon
If the LCD monitor with digital recorder is not detected, perform the following steps:
• Close the USB detection program and disconnect the USB cable from the PC.
• Press the button „PLAY" (20, 37) twice.
• Connect the USB cable to the PC and restart the software.

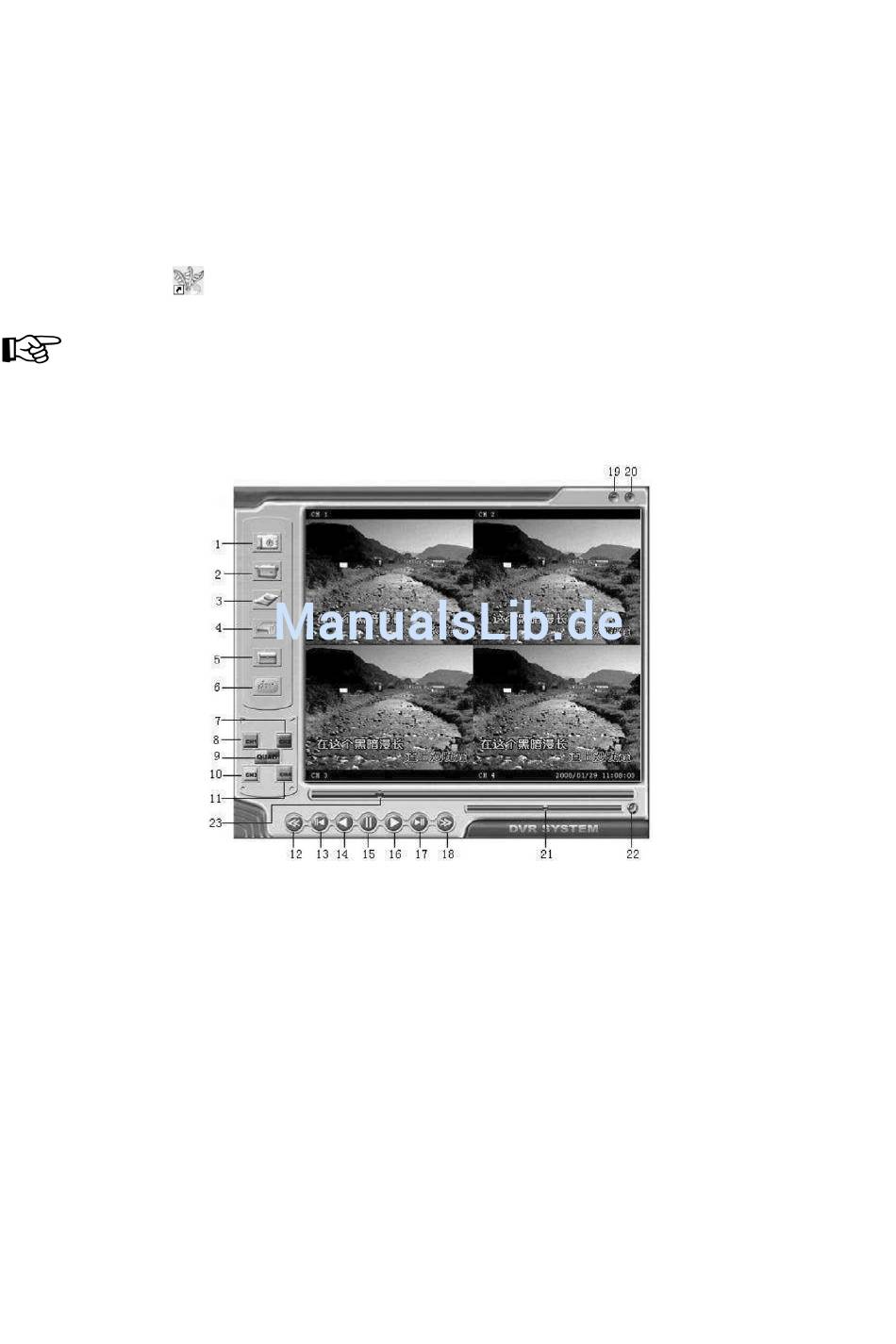

1) Save image
2) Save video clip
3) Configuration
4) Printer
5) Event list
6) DVR/PC mode
7) Camera channel 2
8) Camera channel 1
9) QUAD mode
10)Camera channel 3
11) Camera channel 4
12)Rewind
to start the software.
13)Rewind frame by frame
14)Rewind
15)Pause
16)Play
17)Next frame
18)Fast forward
19)Minimise window
20)Close window
21)Volume scrollbar
22)Audio ON/OFF
23)Playback scrollbar
