Calibration Information
Test
(Switch Position)
K
AC Volts
L
DC Volts
R
Continuity
e
Ohms
?
Amps AC
*INRUSH
*The "INRUSH" button must be pressed after current is applied to the 50-turn coil.
**Display should bar (- - - -), then show reading with inrush light on (334, 335)
8

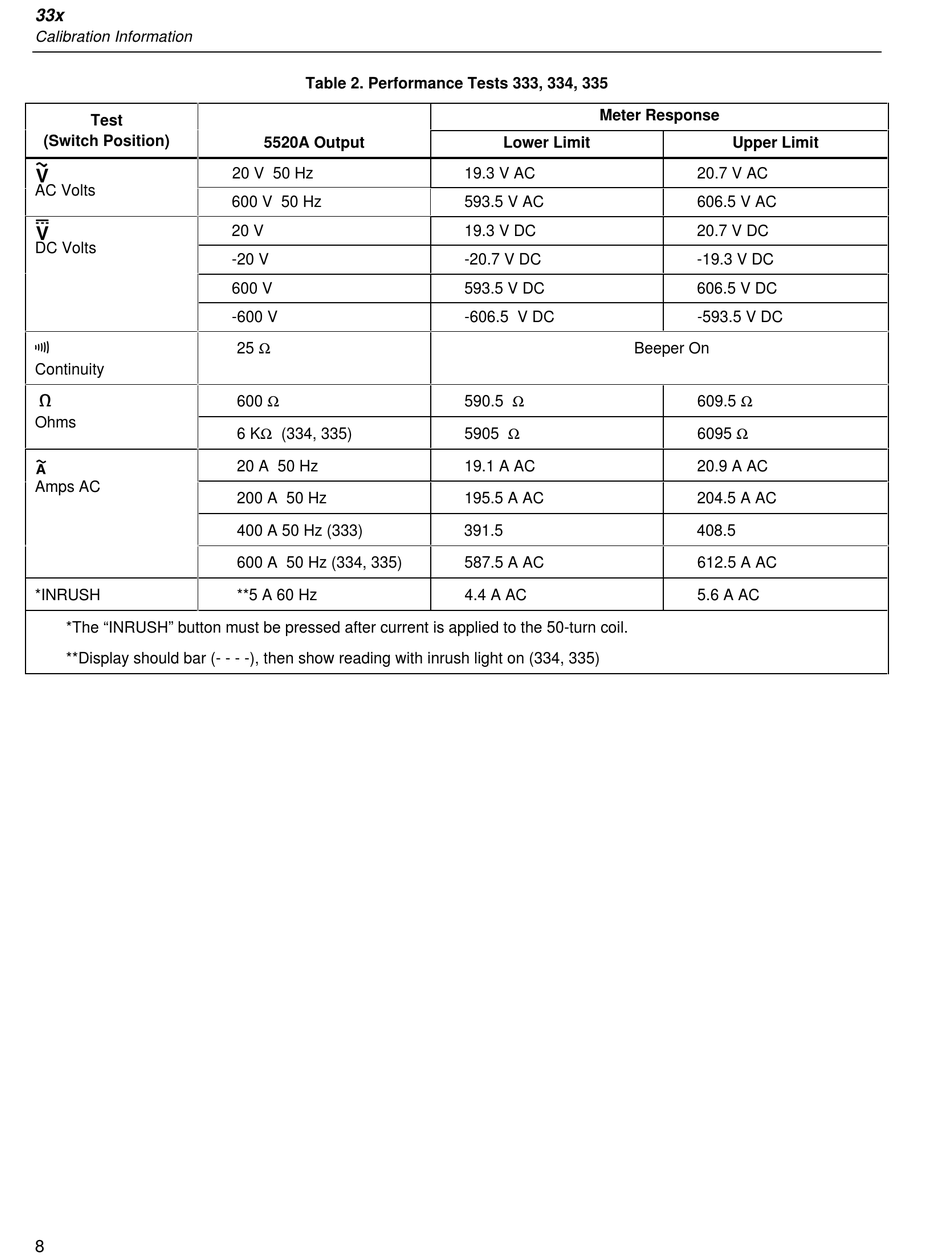

Table 2. Performance Tests 333, 334, 335
5520A Output
20 V 50 Hz
600 V 50 Hz
20 V
-20 V
600 V
-600 V
25 Ω
600 Ω
6 KΩ (334, 335)
20 A 50 Hz
200 A 50 Hz
400 A 50 Hz (333)
600 A 50 Hz (334, 335)
**5 A 60 Hz
Meter Response
Lower Limit
19.3 V AC
593.5 V AC
19.3 V DC
-20.7 V DC
593.5 V DC
-606.5 V DC
Beeper On
590.5 Ω
5905 Ω
19.1 A AC
195.5 A AC
391.5
587.5 A AC
4.4 A AC
Upper Limit
20.7 V AC
606.5 V AC
20.7 V DC
-19.3 V DC
606.5 V DC
-593.5 V DC
609.5 Ω
6095 Ω
20.9 A AC
204.5 A AC
408.5
612.5 A AC
5.6 A AC
