b) Selecting the neutral position

The neutral position is the position in which the key can be withdrawn from the cylinder lock.
After completing adjustment for the direction of rotation, the drive is moved first of all into the vertical
position. This is displayed by the display with a vertical line.
If an error occurs here, this is displayed in the display (e.g. error message "ERR"). If this
occurs, by pressing the small key "Setup" briefly the actuator can be moved to the neutral
position. Do not block the actuator during this phase.
Before you continue the adjustment work, the door lock actuator has to be mounted at first
on the cylinder lock, see c).
Do not press any key as then the neutral position or the adjustment work will no
longer be correct.
• Press the lower key briefly to set the neutral position to "horizon-
tal".

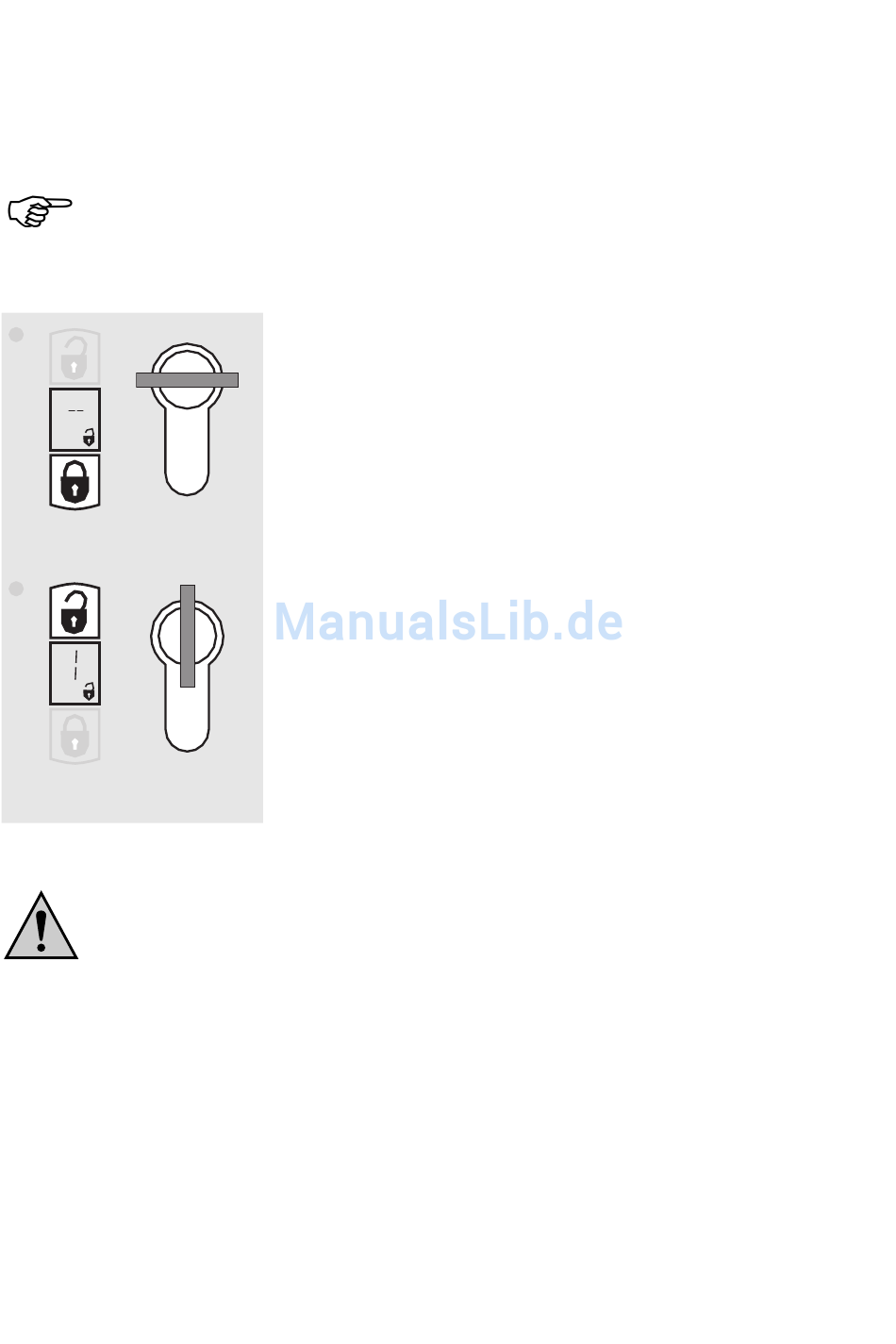

• In the illustration at the right (key is inserted in the cylinder lock),
the appropriated key position can be seen at which the key can
be withdrawn (horizontal).
• Press the upper key briefly to set the neutral position to "vertical".
• In the illustration at the right (key is inserted in the cylinder lock),
the appropriated key position can be seen at which the key can
be withdrawn (vertical).
Each time the key is pressed, the motor drive is moved to the
selected position.
