ENGLISH

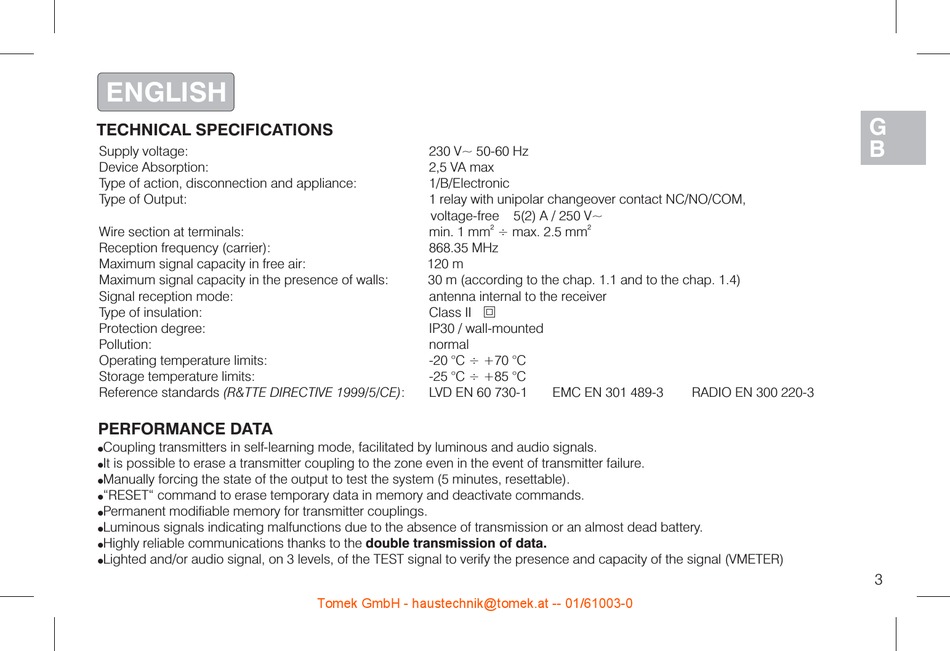

TECHNICAL SPECIFICATIONS

Supply voltage:
Device Absorption:
Type of action, disconnection and appliance:
Type of Output:
Wire section at terminals:
Reception frequency (carrier):
Maximum signal capacity in free air:
Maximum signal capacity in the presence of walls:
Signal reception mode:
Type of insulation:
Protection degree:
Pollution:
Operating temperature limits:
Storage temperature limits:
(R&TTE DIRECTIVE 1999/5/CE)
Reference standards

PERFORMANCE DATA

!
Coupling transmitters in self-learning mode, facilitated by luminous and audio signals.
!
It is possible to erase a transmitter coupling to the zone even in the event of transmitter failure.
!
Manually forcing the state of the output to test the system (5 minutes, resettable).
!
"RESET" command to erase temporary data in memory and deactivate commands.
!
Permanent modifiable memory for transmitter couplings.
!
Luminous signals indicating malfunctions due to the absence of transmission or an almost dead battery.
!
Highly reliable communications thanks to the
!
Lighted and/or audio signal, on 3 levels, of the TEST signal to verify the presence and capacity of the signal (VMETER)
230 V~ 50-60 Hz
2,5 VA max
1/B/Electronic
1 relay with unipolar changeover contact NC/NO/COM,
voltage-free
2
min. 1 mm ÷ max. 2.5 mm
868.35 MHz
120 m
30 m (according to the chap. 1.1 and to the chap. 1.4)
antenna internal to the receiver
Class II
IP30 / wall-mounted
normal
-20 °C ÷ +70 °C
-25 °C ÷ +85 °C
: LVD EN 60 730-1
double transmission of data.
