ENGLISH
Important: Never look directly into the light source! Don't use the effect in the presence of persons suffering
from epilepsy.
DESCRIPTION:

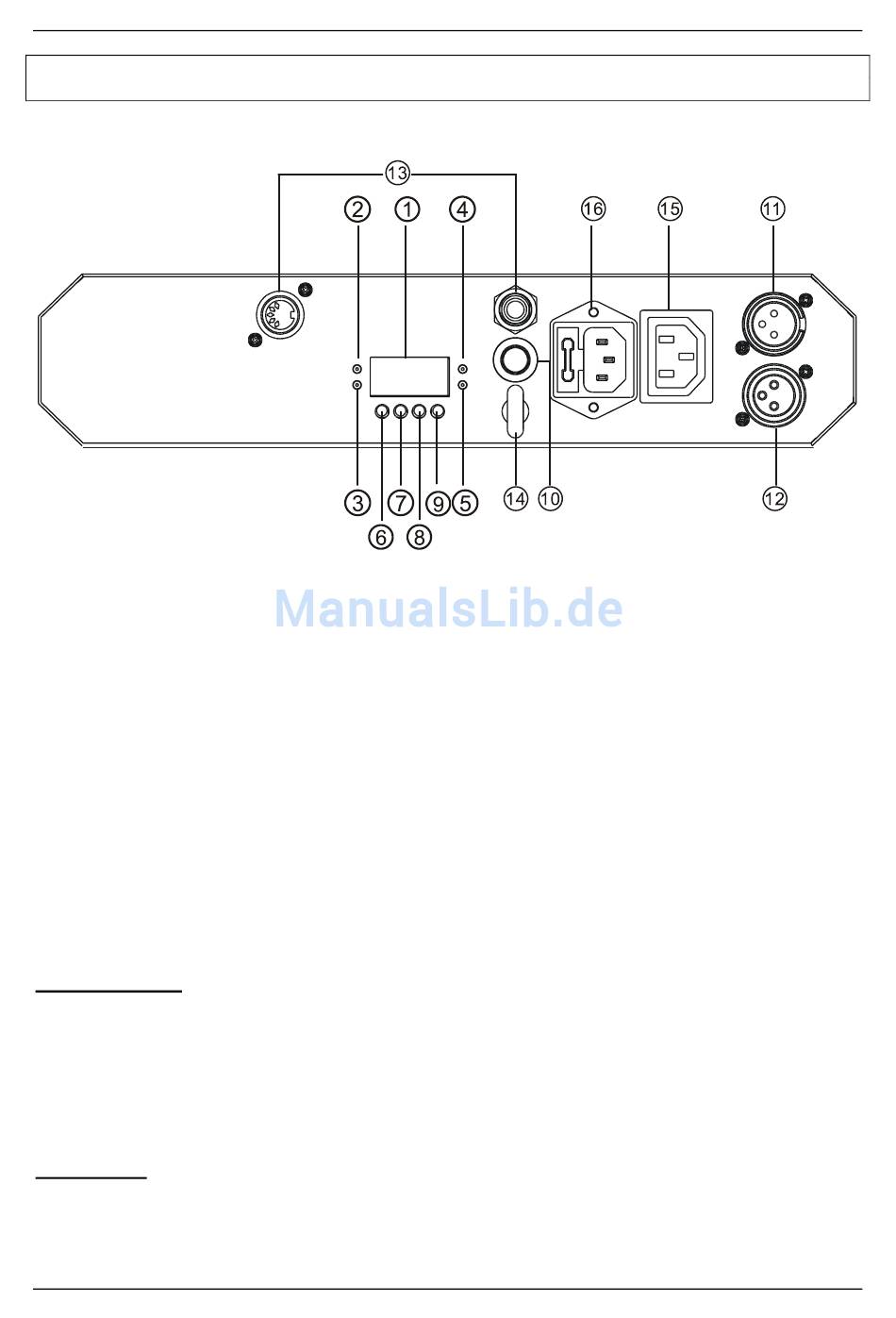

1. DISPLAY shows the various menus and the selected functions.
2. DMX LED: is lit when the unit receives a DMX signal.
3. Master LED: is lit when the unit is switched as master
4. Slave LED: is lit when the unit is in slave mode
5. Sound LED: blinks to the rhythm of the music while the unit is in audio mode
6. MENU button: used to select the different menu items
7. DOWN button: to go back in the menu and to lower the values shown on the display.
8. UP button: to go up in the menu and to increase the values shown on the display.
9. ENTER button: used to confirm your choice.
10. Internal microphone
11. DMX input
12. DMX output
13. Remote control inputs:

Jack input: used to connect the CA-8 controller

Din input: used to connect the wireless RF-8 controller
14. Safety eyebolt: used to attach a safety cable when the unit is rigged (see paragraph "overhead rigging.
15. Mains output with IEC socket: you can use a special IEC power cable to connect this output with the
mains input of the next LED RAINBOW for easier linking.
16. Mains input with IEC socket and integrated fuse holder, connect the supplied mains cable here.
MAIN MENU:
 To select any of the functions, press the MENU button up to when the required one is shown on the
display or use the DOWN and UP buttons to browse the menu.
 Select the function with the ENTER button (the display blinks).
 Use DOWN and UP buttons to change the mode.
 Once the required mode is selected, press the ENTER button to confirm.
To go back to the main menu without any change press the MENU button shortly. The main menu is shown
in the chart.
DMX Address
Used to set the starting address in a DMX setup.
 Press the MENU button until "Addr" is shown on the display.
 Press the ENTER button, the display starts blinking.
