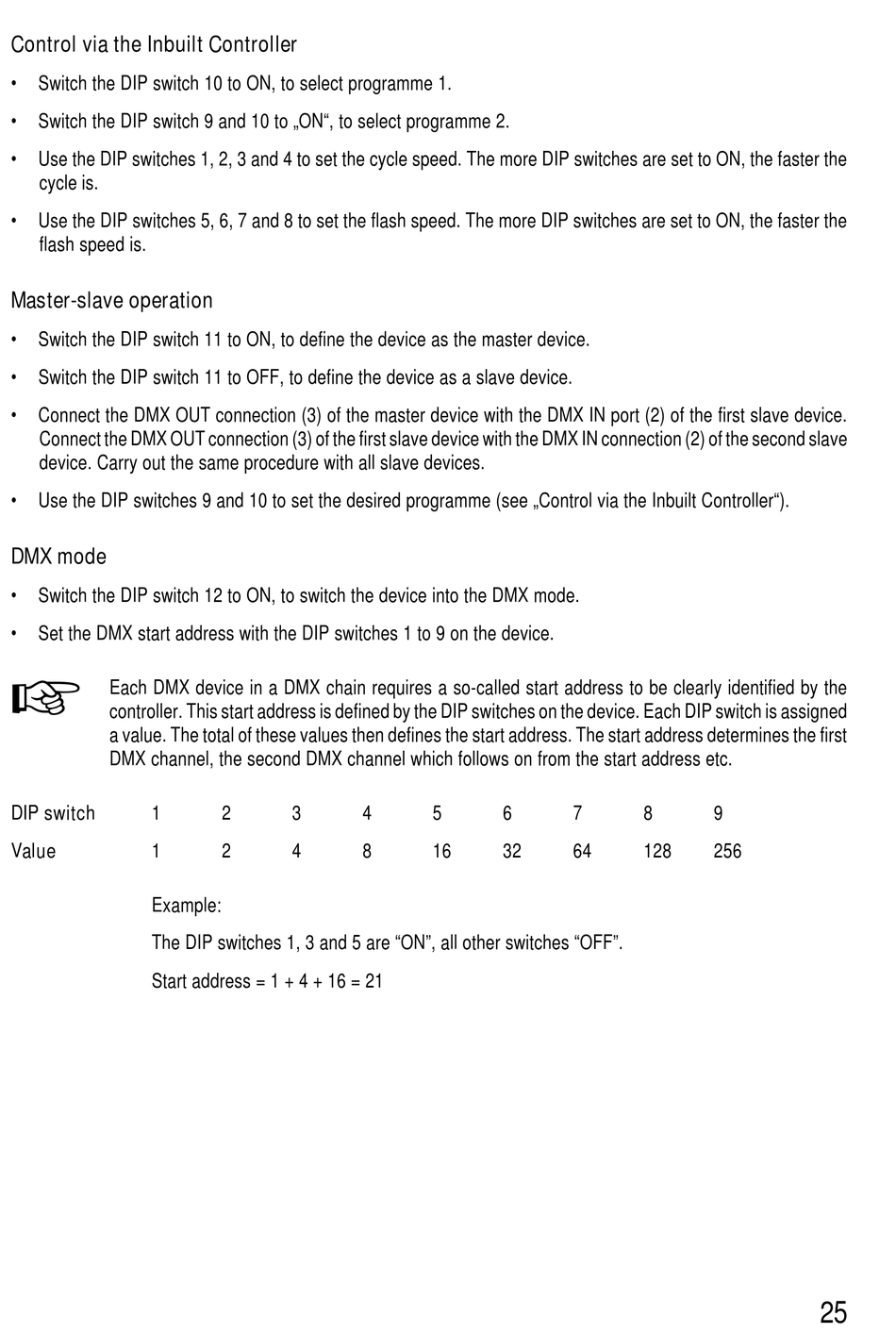

Control via the Inbuilt Controller

• Switch the DIP switch 10 to ON, to select programme 1.
• Switch the DIP switch 9 and 10 to „ON", to select programme 2.
• Use the DIP switches 1, 2, 3 and 4 to set the cycle speed. The more DIP switches are set to ON, the faster the
cycle is.
• Use the DIP switches 5, 6, 7 and 8 to set the flash speed. The more DIP switches are set to ON, the faster the
flash speed is.

Master-slave operation

• Switch the DIP switch 11 to ON, to define the device as the master device.
• Switch the DIP switch 11 to OFF, to define the device as a slave device.
• Connect the DMX OUT connection (3) of the master device with the DMX IN port (2) of the first slave device.
Connect the DMX OUT connection (3) of the first slave device with the DMX IN connection (2) of the second slave
device. Carry out the same procedure with all slave devices.
• Use the DIP switches 9 and 10 to set the desired programme (see „Control via the Inbuilt Controller").

DMX mode

• Switch the DIP switch 12 to ON, to switch the device into the DMX mode.
• Set the DMX start address with the DIP switches 1 to 9 on the device.

Each DMX device in a DMX chain requires a so-called start address to be clearly identified by the
controller. This start address is defined by the DIP switches on the device. Each DIP switch is assigned
a value. The total of these values then defines the start address. The start address determines the first
DMX channel, the second DMX channel which follows on from the start address etc.
DIP switch 1
Value 1
Example:
The DIP switches 1, 3 and 5 are "ON", all other switches "OFF".
Start address = 1 + 4 + 16 = 21
2 3 4
2 4 8
5 6 7
16 32 64
8 9
128 256
