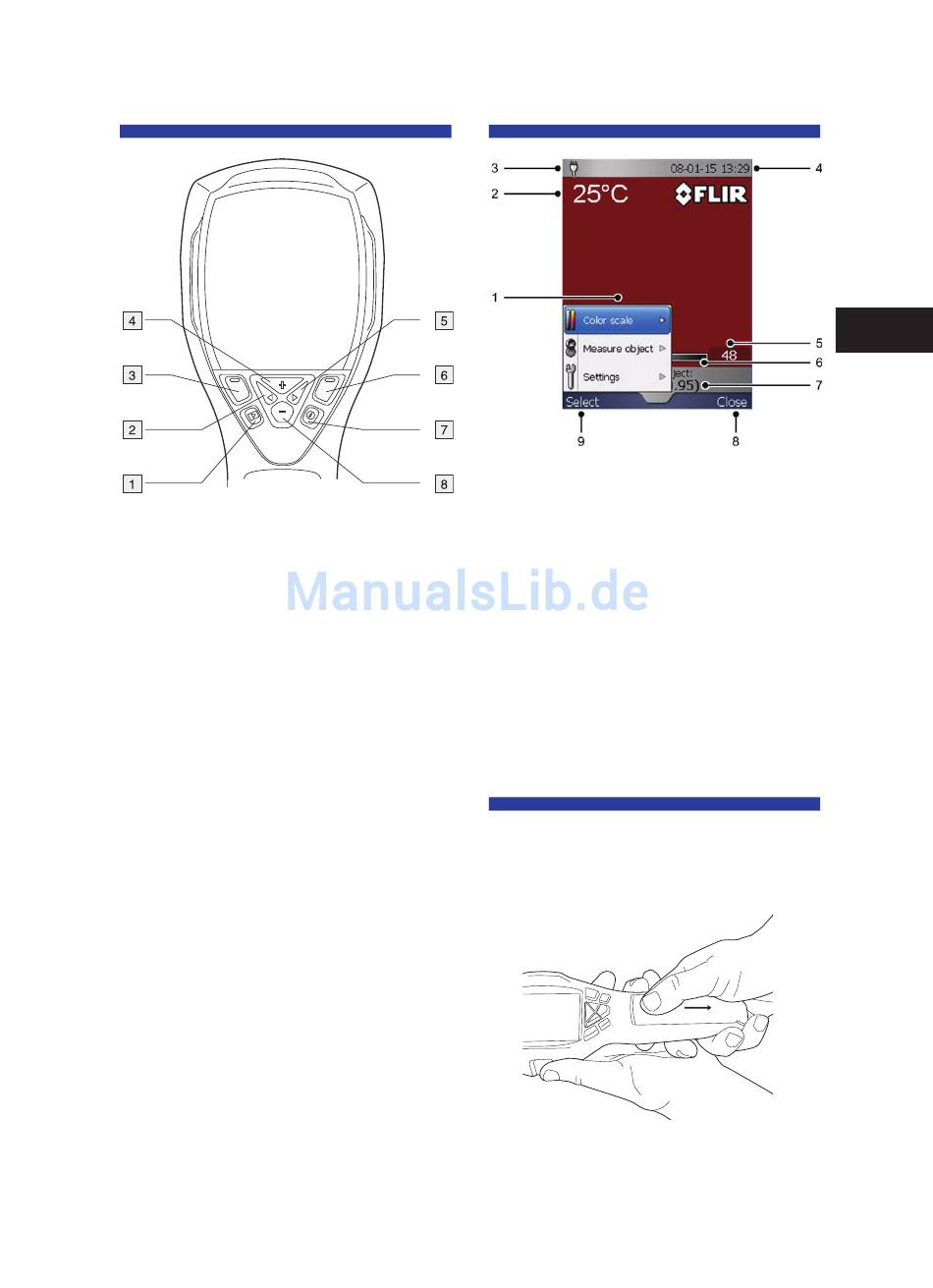

Keypad buttons
1 Archive button
2 Left arrow button (on the navigation
pad)
3 Left selection button. This button is
context-sensitive, and the current func-
tion is displayed above the button on
the screen.
4 + button (on the navigation pad)
5 Right arrow button (on navigation pad)
6 Right selection button. This button is
context-sensitive, and the current func-
tion is displayed above the button on
the screen.
7 On/off button
8 – button (on the navigation pad)
Note: See the User Documentation CD-
ROM for a complete description of button
functionality.
Menu system
1 Menu system
2 Measurement result
3 Power indicator
4 Date and time
5 Limit value for the temperature scale
6 Temperature scale
7 Currently set emissivity value or mate-
rial properties
8 Current function for the right selection
button
9 Current function for the left selection
button
How to insert the battery
Follow this procedure to insert the battery:
1 Remove the battery compartment
cover.
2 Connect the cable that is attached to
the battery to the connector inside the
en-US
