– Fix the frame to the wall with 4 screws.
-
+

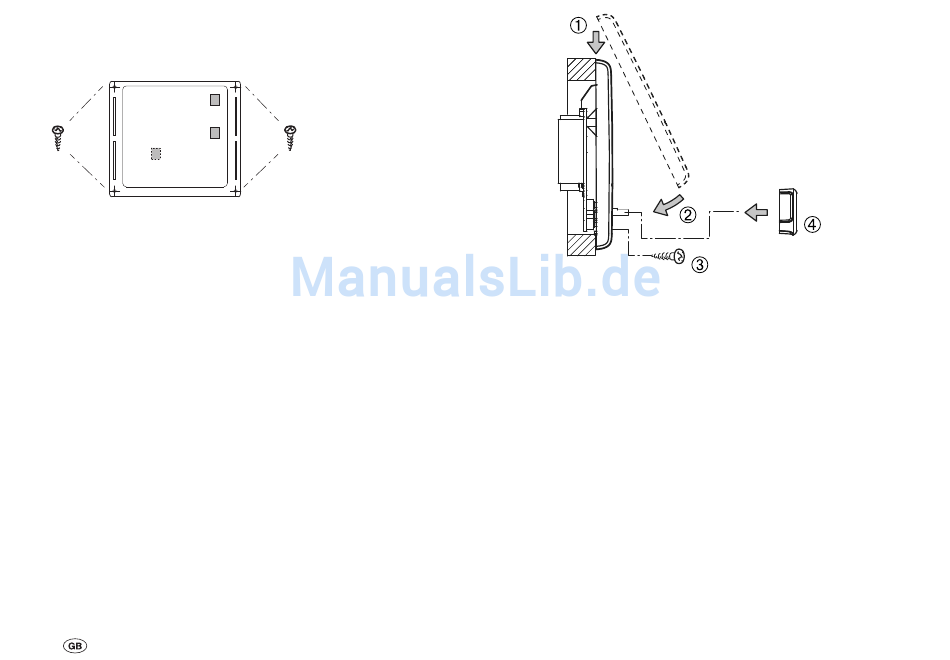

Figure 4 – Front view
– Hook control panel upper section into frame using 2 latch-
ing lugs.
– Fix control panel upper section in position with a screw.
– Slide rotary push button onto axis.
46
dia. max. 3.4 mm
Figure 5 – Installing the control panel upper section and ro-
tary push button
