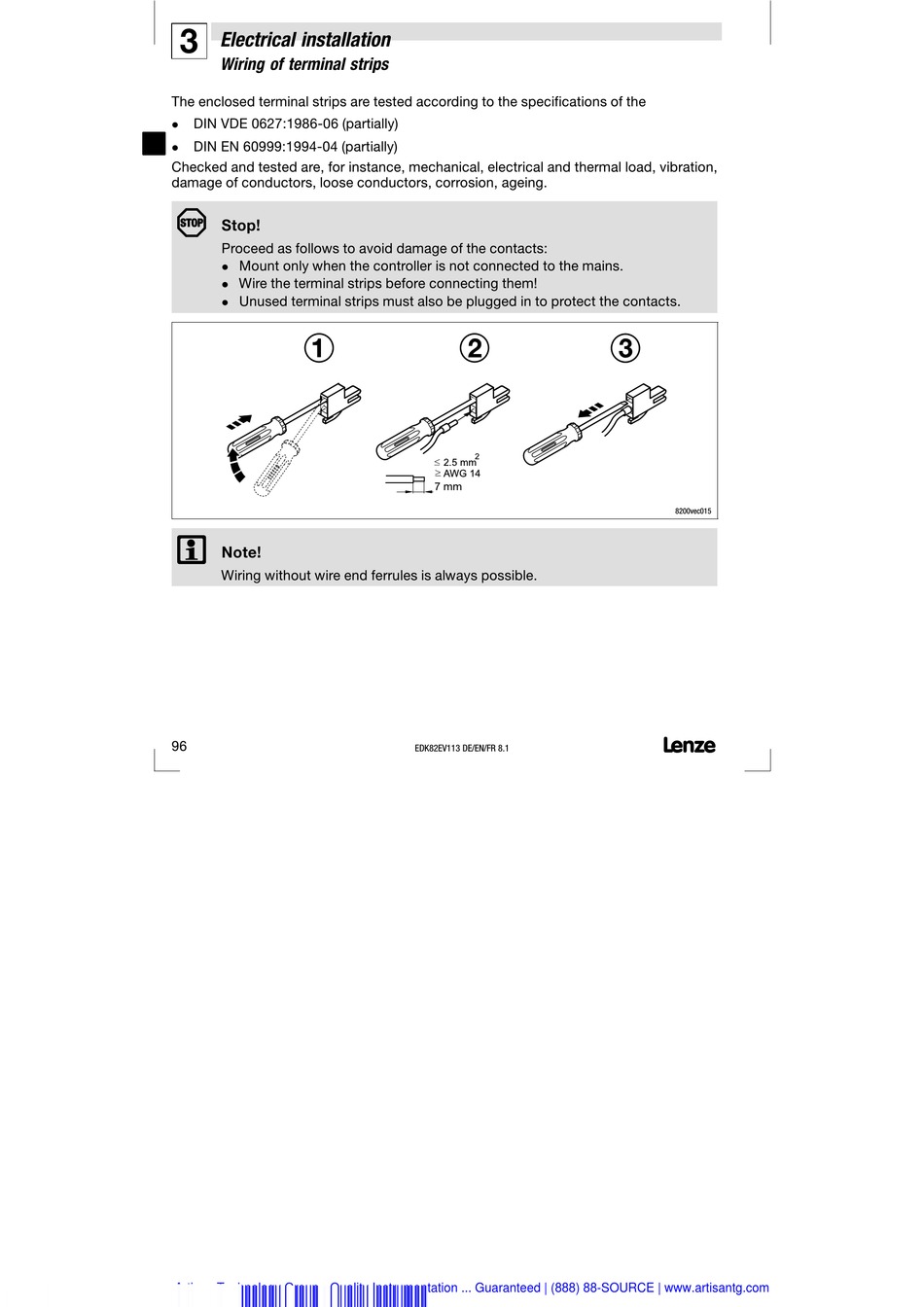

Electrical installation

Wiring of terminal strips

The enclosed terminal strips are tested according to the specifications of the
DIN VDE 0627:1986−06 (partially)
l
DIN EN 60999:1994−04 (partially)
l
Checked and tested are, for instance, mechanical, electrical and thermal load, vibration,
damage of conductors, loose conductors, corrosion, ageing.
(
Stop!
Proceed as follows to avoid damage of the contacts:
Mount only when the controller is not connected to the mains.
l
Wire the terminal strips before connecting them!
l
Unused terminal strips must also be plugged in to protect the contacts.
l
)
Note!
Wiring without wire end ferrules is always possible.
96
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
EDK82EV113 DE/EN/FR 8.1
8200vec015
