Powerfix PLS 10 A2
indicator on the 12/24 V car charger cable (C) plug indicates that it is ready for operation.
During charging the charge indicator (6) of the battery LED emitter (A) lights red. When the
built-in Li-Ion battery is fully charged, the charge indicator (6) changes to green. Unplug the
12/24 V car charger cable (C) from the vehicle cigarette lighter and then disconnect the
plug from the 12/24 V car charger cable (C) from the DC-IN socket (8). Close the DC-IN
socket (8) with the rubber cover (7). Now the battery LED emitter (A) is ready for use.

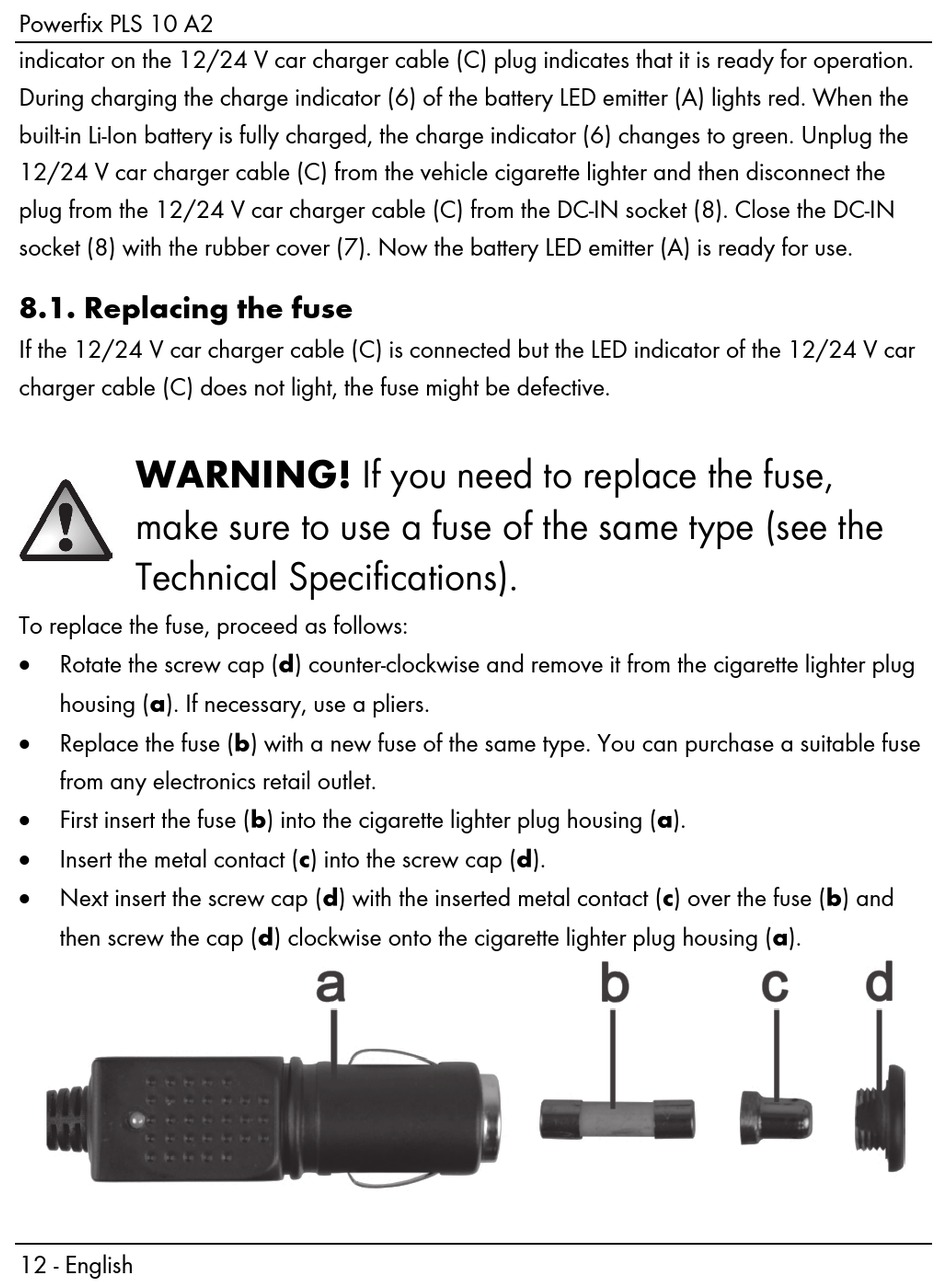

8.1. Replacing the fuse
If the 12/24 V car charger cable (C) is connected but the LED indicator of the 12/24 V car
charger cable (C) does not light, the fuse might be defective.
WARNING! If you need to replace the fuse,
make sure to use a fuse of the same type (see the
Technical Specifications).
To replace the fuse, proceed as follows:
Rotate the screw cap (d) counter-clockwise and remove it from the cigarette lighter plug
housing (a). If necessary, use a pliers.
Replace the fuse (b) with a new fuse of the same type. You can purchase a suitable fuse
from any electronics retail outlet.
First insert the fuse (b) into the cigarette lighter plug housing (a).
Insert the metal contact (c) into the screw cap (d).
Next insert the screw cap (d) with the inserted metal contact (c) over the fuse (b) and
then screw the cap (d) clockwise onto the cigarette lighter plug housing (a).
12 - English
