GETTING STARTED

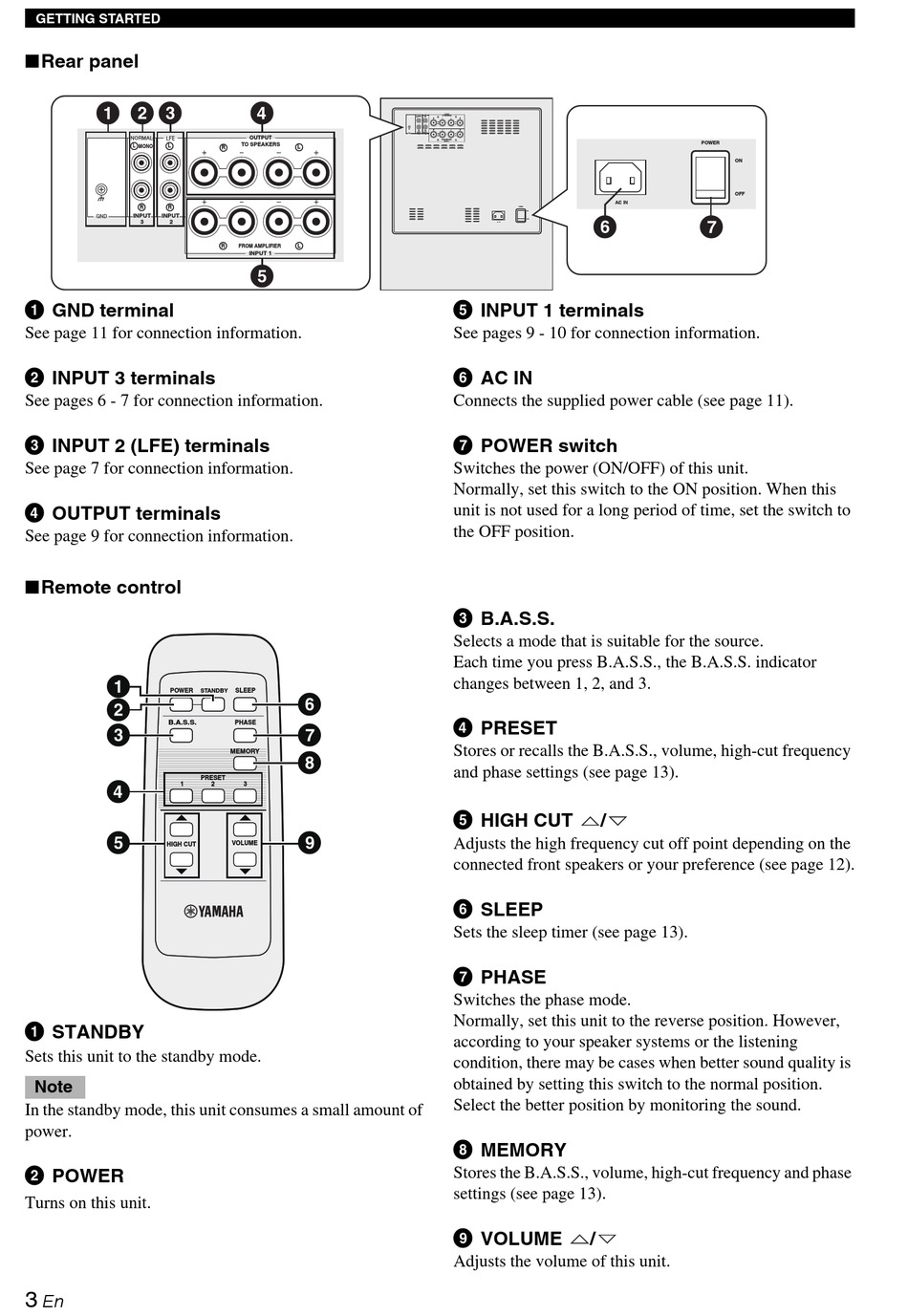

■Rear panel
1 2 3
L MONO L
R R
INPUT INPUT
3 2
1 GND terminal
See page 11 for connection information.
2 INPUT 3 terminals
See pages 6 - 7 for connection information.
3 INPUT 2 (LFE) terminals
See page 7 for connection information.
4 OUTPUT terminals
See page 9 for connection information.
■Remote control
1
POWER
2
B.A.S.S.
3
1
4
5
HIGH CUT
1 STANDBY
Sets this unit to the standby mode.
Note
In the standby mode, this unit consumes a small amount of
power.
2 POWER
Turns on this unit.
3
En
4
OUTPUT
TO SPEAKERS
L
R
R L
FROM AMPLIFIER
INPUT 1
5
STANDBY SLEEP
6
PHASE
7
MEMORY
8
PRESET
2 3
9
VOLUME
OUTPUT
TO SPEAKERS
L MONO L R L
R R
INPUT INPUT
3 2
R FROM AMPLIFIER L
INPUT 1
POWER
ON
OFF
5 INPUT 1 terminals
See pages 9 - 10 for connection information.
6 AC IN
Connects the supplied power cable (see page 11).
7 POWER switch
Switches the power (ON/OFF) of this unit.
Normally, set this switch to the ON position. When this
unit is not used for a long period of time, set the switch to
the OFF position.
3 B.A.S.S.
Selects a mode that is suitable for the source.
Each time you press B.A.S.S., the B.A.S.S. indicator
changes between 1, 2, and 3.
4 PRESET
Stores or recalls the B.A.S.S., volume, high-cut frequency
and phase settings (see page 13).
5 HIGH CUT
Adjusts the high frequency cut off point depending on the
connected front speakers or your preference (see page 12).
6 SLEEP
Sets the sleep timer (see page 13).
7 PHASE
Switches the phase mode.
Normally, set this unit to the reverse position. However,
according to your speaker systems or the listening
condition, there may be cases when better sound quality is
obtained by setting this switch to the normal position.
Select the better position by monitoring the sound.
8 MEMORY
Stores the B.A.S.S., volume, high-cut frequency and phase
settings (see page 13).
9 VOLUME
Adjusts the volume of this unit.
POWER
ON
OFF
6 7
/
/
