381434 ISS S 01.98 381332 ISS Q 11.95
Pos 4
Pos 21
Pos 1
12
5 Maintenance

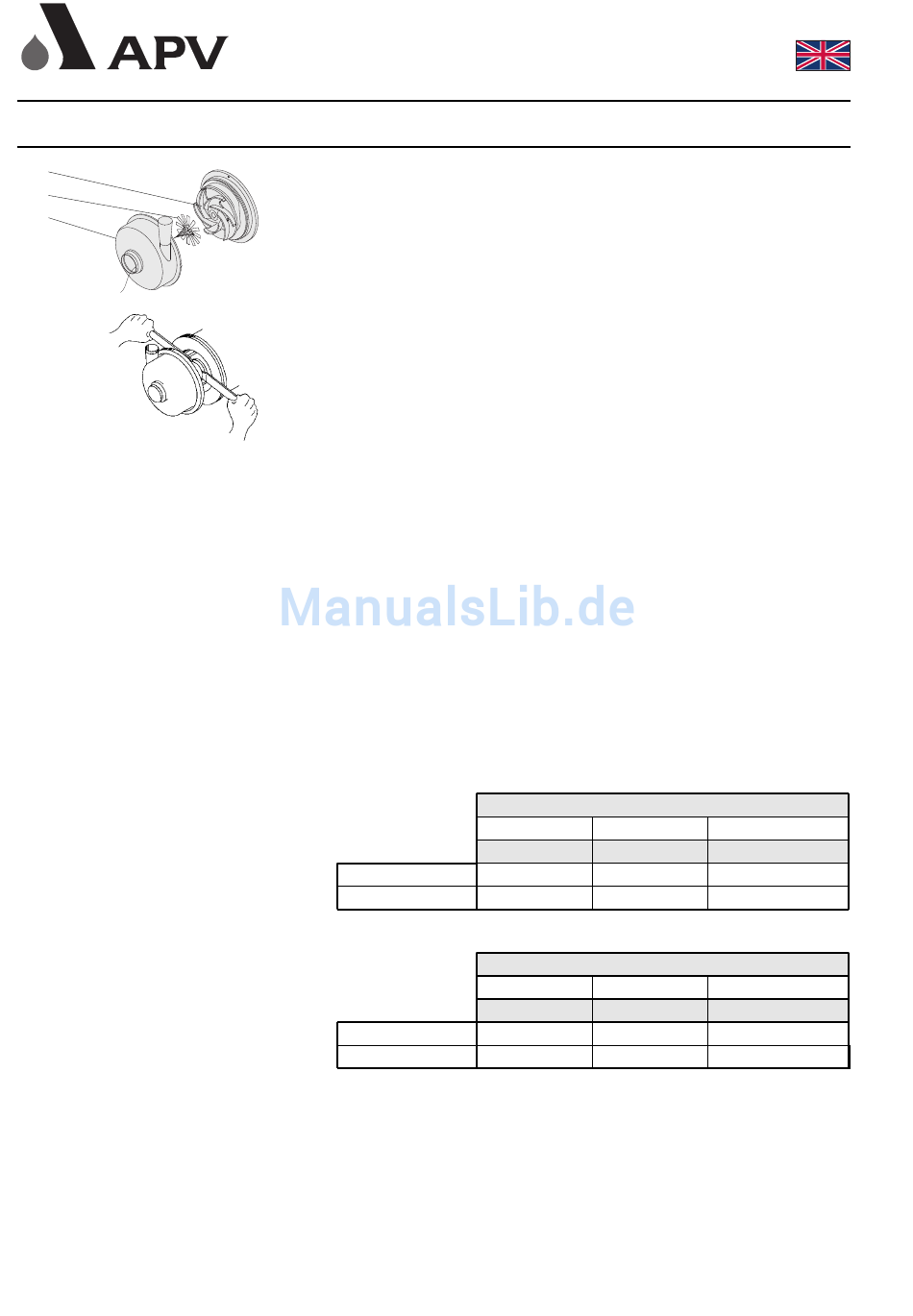

14. Fit the plastic star (pos 21) on the impeller (pos 4).
15. Fit the pump body (pos 1) with the clamp ring (pos 2).
16. Push the shaft (pos 6) forward until the impeller (pos 4) is
touching the plastic star (pos 21).
17. Tighten the shaft (pos 6) to 30 Nm for 8 mm screws and
55 Nm for 10 mm screws.
18. Remove the star (pos 21) by pulling it out through the intake.
5.4 Recommended stocks of spare parts
Seal set
We recommend that you keep both seal kits and service kits for the
W+ pumps in stock. The seal kit for the W+ pump consists of the
wearing parts of the pump, as specified on page 28.
Service kit
The service kit is made up of a number of the main components of the
pump which are not wearing parts, but which you still may have to
replace: shaft, impeller, cap nut and fixing kit.
The table below shows the recommended stocks of spare parts for
normal operation and in cases where there are special needs - for
example 24-hour operation, operation with abrasive media, or proces-
ses that are sensitive to even the shortest production stoppage.
Wearing parts (seal kit, see page 28)
Normal operation
Special needs
Service parts (shaft, impeller, cap nut page 23, fixing kit page 26-27)
Normal operation
Special needs
No. of pumps in service
0-5 5-20
Sets Sets
2 3
3 6
No. of pumps in service
0-5 5-20
Sets Sets
0 1
1 2
> 20
Sets/ 10 pumps
1
2
> 20
Sets/ 10 pumps
1
1
