Jotul Terrazza XL Montageanleitung Seite 9

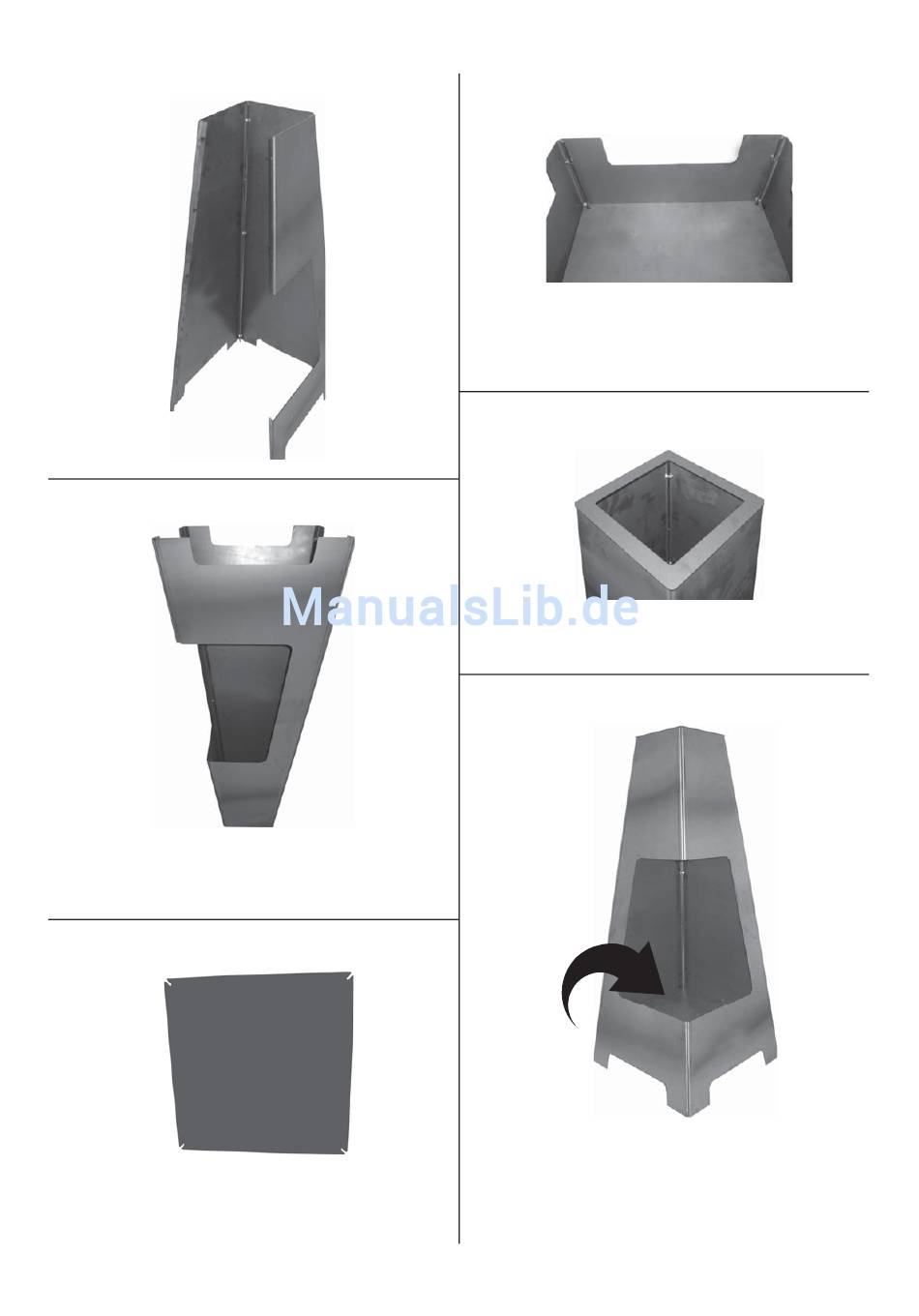

Fig. 6
fi g. 7
Put the fi replace up-side down for easier assembly of the bottom
plate.
Fig. 8
Drop the bottom plate down through the opening.
Fig. 9
Attach the screws beneath the bottom plate.
Fig. 10
Put on the top plate with the angles down.
Fig. 11
1) Apply a 50 mm thick layer of sand/gravel for stability/
insulation in the bottom.
2) The fi replace is ready for use.
