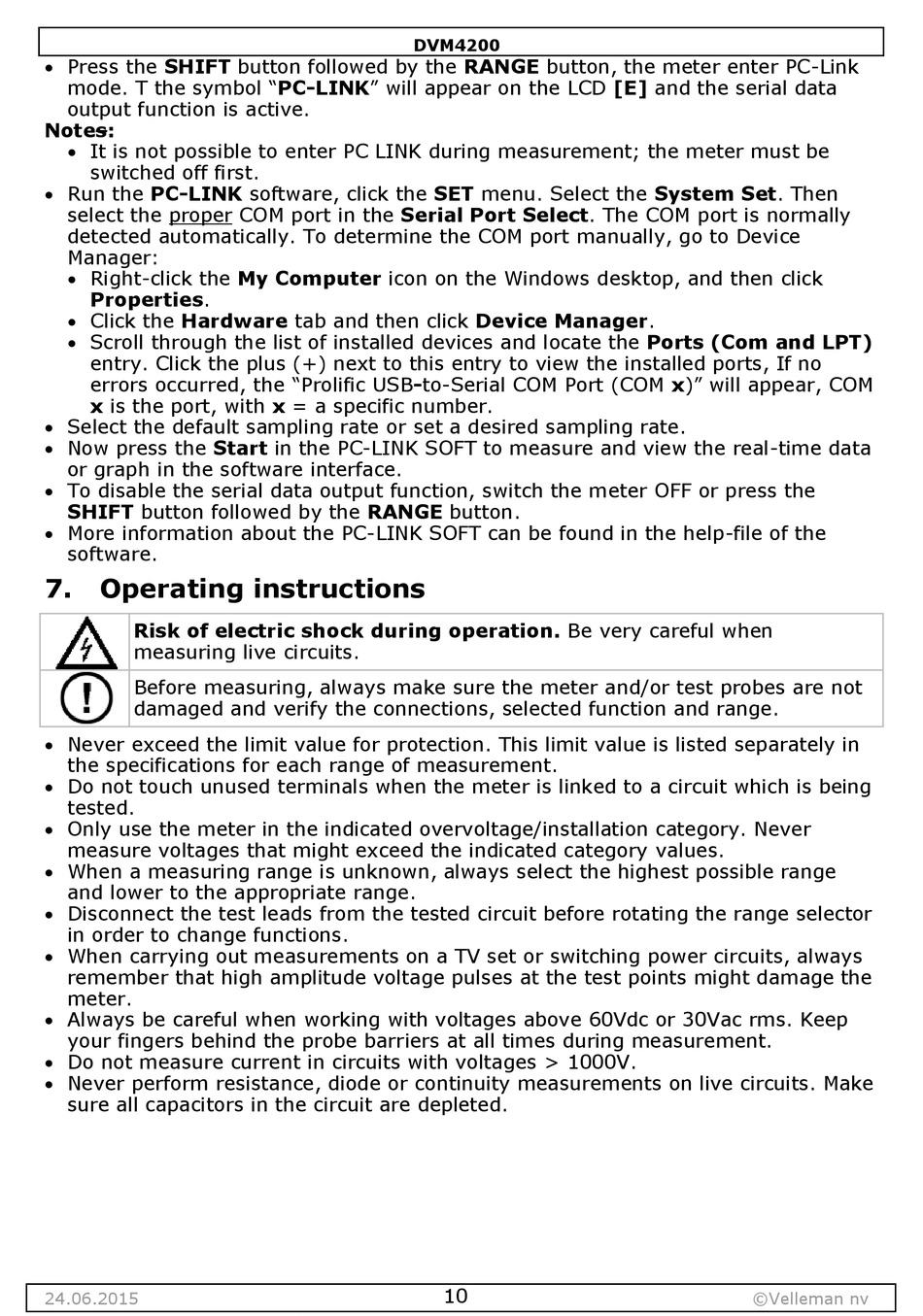

 Press the SHIFT button followed by the RANGE button, the meter enter PC-Link
mode. T the symbol "PC-LINK" will appear on the LCD [E] and the serial data
output function is active.
Notes:
 It is not possible to enter PC LINK during measurement; the meter must be
switched off first.
 Run the PC-LINK software, click the SET menu. Select the System Set. Then
select the proper COM port in the Serial Port Select. The COM port is normally
detected automatically. To determine the COM port manually, go to Device
Manager:
 Right-click the My Computer icon on the Windows desktop, and then click
Properties.
 Click the Hardware tab and then click Device Manager.
 Scroll through the list of installed devices and locate the Ports (Com and LPT)
entry. Click the plus (+) next to this entry to view the installed ports, If no
errors occurred, the "Prolific USB-to-Serial COM Port (COM x)" will appear, COM
x is the port, with x = a specific number.
 Select the default sampling rate or set a desired sampling rate.
 Now press the Start in the PC-LINK SOFT to measure and view the real-time data
or graph in the software interface.
 To disable the serial data output function, switch the meter OFF or press the
SHIFT button followed by the RANGE button.
 More information about the PC-LINK SOFT can be found in the help-file of the
software.
7. Operating instructions
Risk of electric shock during operation. Be very careful when
measuring live circuits.
Before measuring, always make sure the meter and/or test probes are not
damaged and verify the connections, selected function and range.
 Never exceed the limit value for protection. This limit value is listed separately in
the specifications for each range of measurement.
 Do not touch unused terminals when the meter is linked to a circuit which is being
tested.
 Only use the meter in the indicated overvoltage/installation category. Never
measure voltages that might exceed the indicated category values.
 When a measuring range is unknown, always select the highest possible range
and lower to the appropriate range.
 Disconnect the test leads from the tested circuit before rotating the range selector
in order to change functions.
 When carrying out measurements on a TV set or switching power circuits, always
remember that high amplitude voltage pulses at the test points might damage the
meter.
 Always be careful when working with voltages above 60Vdc or 30Vac rms. Keep
your fingers behind the probe barriers at all times during measurement.
 Do not measure current in circuits with voltages > 1000V.
 Never perform resistance, diode or continuity measurements on live circuits. Make
sure all capacitors in the circuit are depleted.
